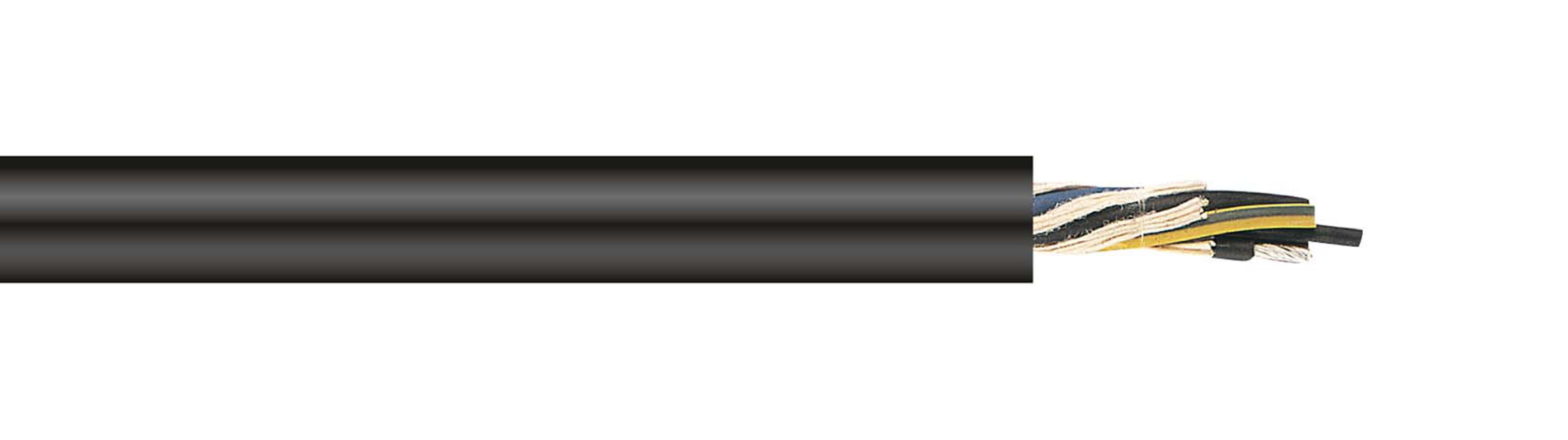

Novoflex HEAVY (K) NSHTÖU-KSM-S/90
Neoprene rubber sheathed reeling cable
- 3 (7)
- 50 (1)
- 70 (1)
- 95 (1)
- 120 (1)
- 150 (1)
- 185 (1)
- 240 (1)
- Yes (7)
| E-number | Dimension n x mm² | Outer dimensions (min - max) mm | Weight kg/100m |
| N8938200 | 3x50+3G25/3 | 32,9 - 36,0 | 2526 |
| N8938300 | 3x70+3G35/3 | 38,9 - 42,0 | 3494 |
| N8938400 | 3x95+3G50/3 | 42,4 - 46,5 | 4466 |
| N8938500 | 3x120+3G70/3 | 47,9 - 52,0 | 5640 |
| N8938600 | 3x150+3G70/3 | 51,7 - 55,8 | 6713 |
| N8938700 | 3x185+3G95/3 | 56,2 - 60,3 | 7865 |
| N8938800 | 3x240+3G120/3 | 64,2 - 68,3 | 10800 |
Standard:
DIN VDE 0295 cl. 5, VDE 0250
Rated Voltage Uo/U:
0,6/1kV
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
Rubber
Core identification:
Numerals, ≤5 cores: Colour coded
Protective conductor:
Yellow/Green
Inner sheath material:
Neopren®
Textile weave:
Vulcanised between inner and outer sheath
Outer sheath:
Neoprene®
Sheat colour:
Black
Bending radius fixed:
6 x cable diameter
Bending radius moved:
6 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+80°C
Min operating temperature moved:
-40°C
Max operating temperature moved:
+80°C
Testing voltage:
2500V
Max temperature at conductor:
+90°C
Flame retardant:
IEC 60332-1
