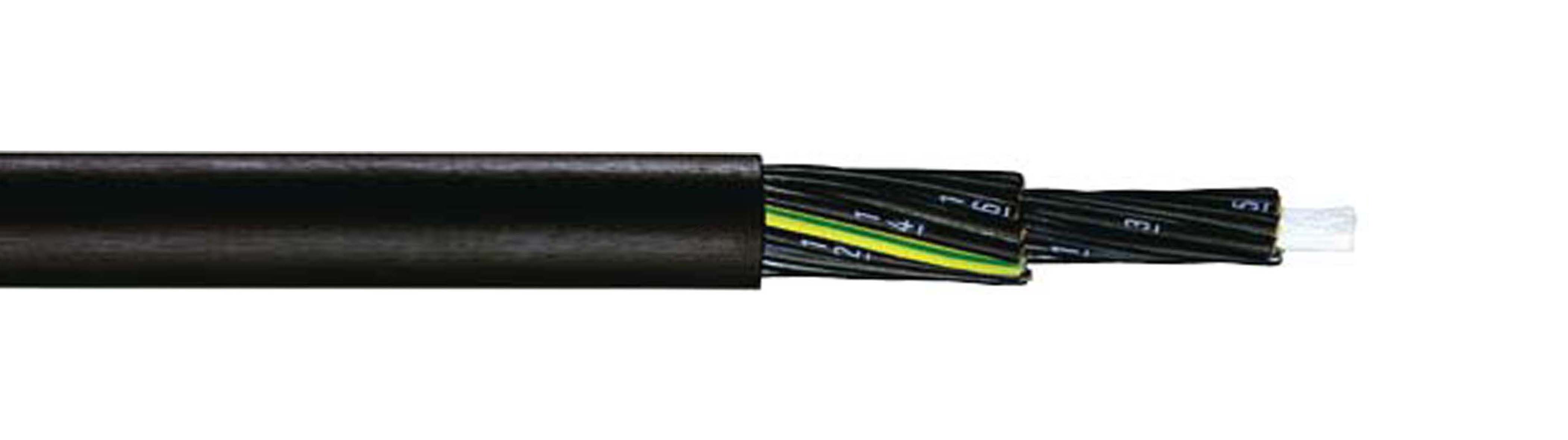

Novoflex HEAVY FLGÖU
Neoprene rubber sheathed lift cable
Standard:
VDE 0295
Rated Voltage Uo/U:
300/500V
Conductor class:
Class 6 = extra fine stranded wires
Conductor material:
Copper
Core insulation:
Rubber
Core identification:
Black with white numerals, ≤5 cores: Colour coded
Protective conductor:
Yellow/Green
Outer sheath:
Neoprene rubber
Sheat colour:
Black
Bending radius fixed:
12,5 x cable diameter
Bending radius moved:
12,5 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+80°C
Min operating temperature moved:
-25°C
Max operating temperature moved:
+80°C
Suspension height:
max 80m
Max. speed / travel distance:
max. 1,5 m/s
Testing voltage:
3000V
Max temperature at conductor:
+90°C
Flame retardant:
IEC 60332-1
