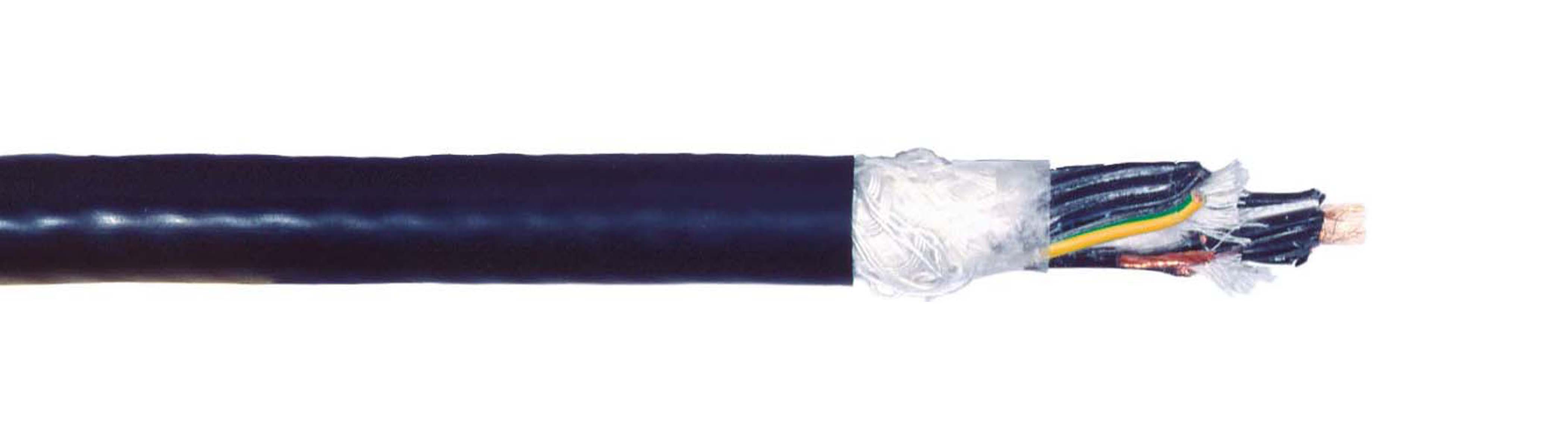

Novoflex HEAVY LIFT-H
PVC-sheathed lift cable
Standard:
VDE 0295
Rated Voltage Uo/U:
300/500V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
PVC
Core identification:
Black with white numerals
Protective conductor:
Yellow/Green
Outer sheath:
Special PVC
Sheat colour:
Black
Bending radius fixed:
20 x cable diameter
Bending radius moved:
20 x cable diameter
Min operating temperature fixed:
-15°C
Max operating temperature fixed:
+70°C
Min operating temperature moved:
-15°C
Max operating temperature moved:
+70°C
Testing voltage:
3000V
Flame retardant:
IEC 60332-1
