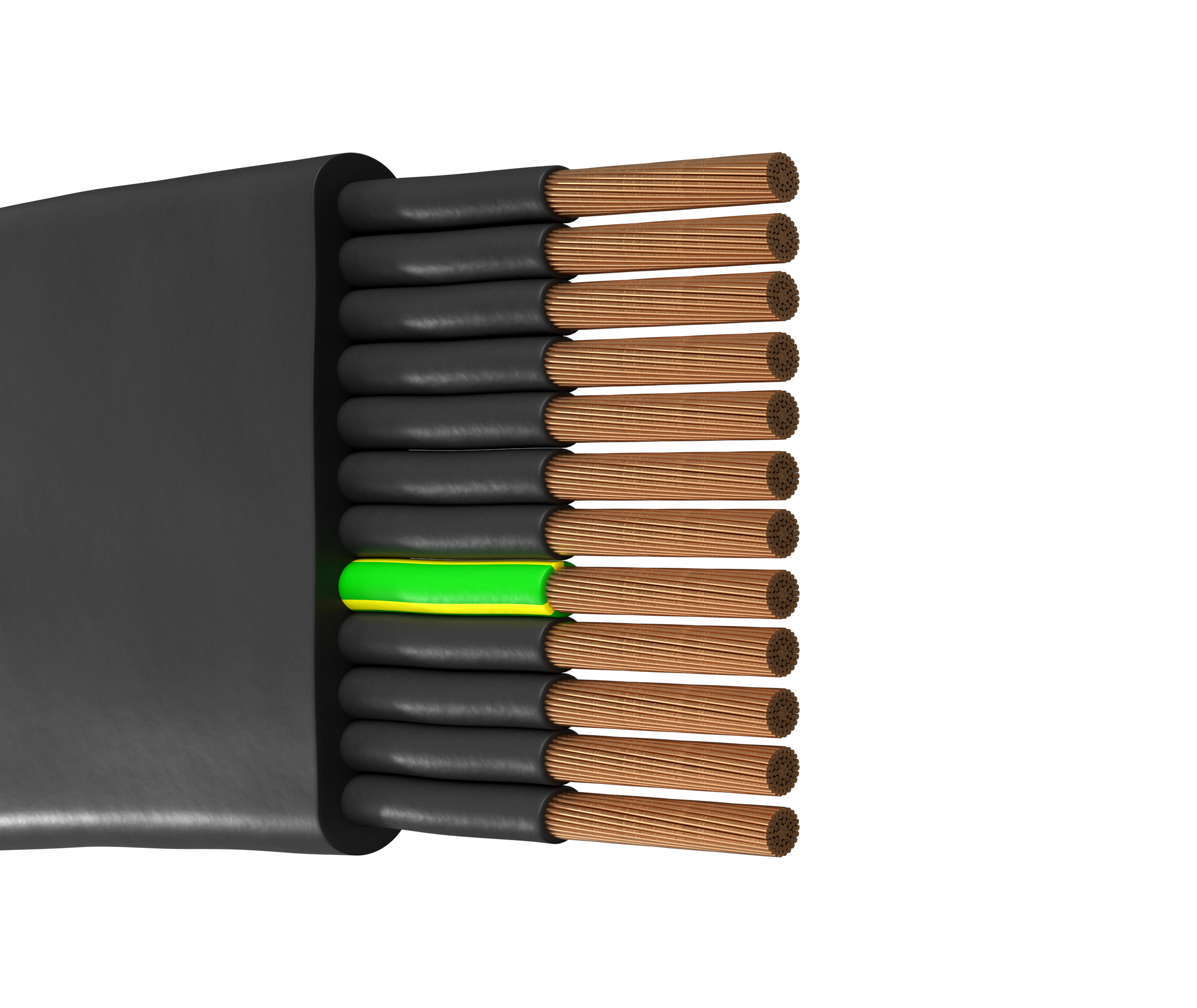

Novoflex HEAVY NGFLGÖU
Neoprene rubber sheathed flat cable
Rated Voltage Uo/U:
300/500V
Conductor class:
≤25mm² Class 6 = extra fine stranded wires / ≥35mm² Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
Rubber
Core identification:
Black with white numerals, ≤5 cores: Colour coded
Protective conductor:
Yellow/Green
Outer sheath:
Special rubber
Sheat colour:
Black
Bending radius fixed:
5 x cable thickness
Bending radius moved:
5 x cable thickness
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+85°C
Min operating temperature moved:
-35°C
Max operating temperature moved:
+85°C
Testing voltage:
3000V
Max temperature at conductor:
+90°C
Flame retardant:
IEC 60332-1
