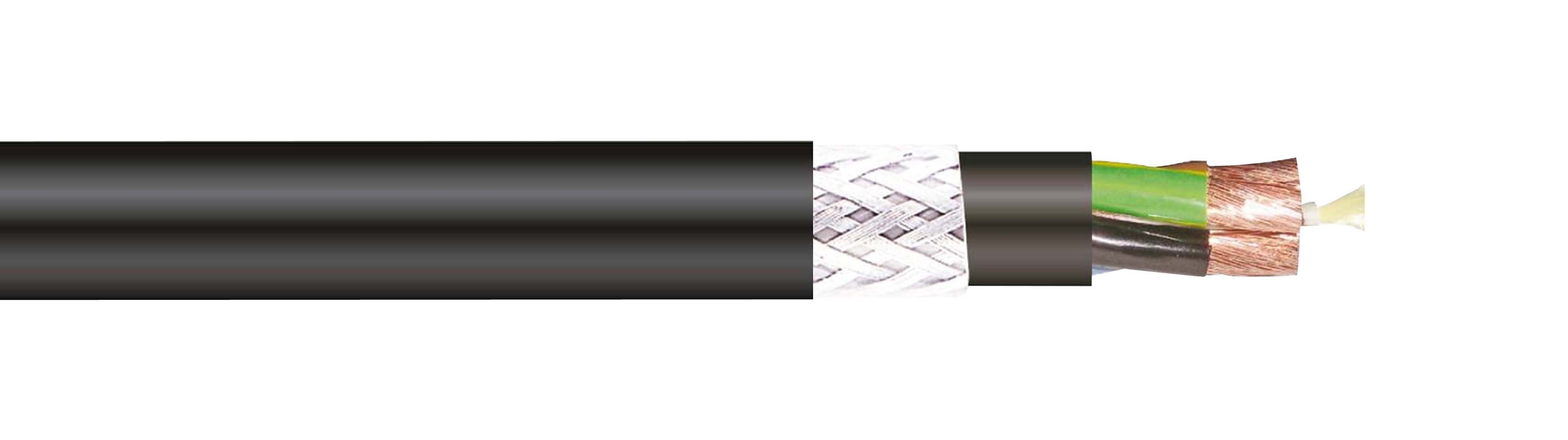

Novoflex HEAVY PUR-C-HF/90
PUR-sheathed copper shielded (EMC) trolley cable
- 8 (2)
- 4 (9)
- 5 (3)
- 6 (1)
- 7 (1)
- 12 (2)
- 18 (2)
- 1 (9)
- 1 (1)
- 1.5 (7)
- 2.5 (4)
- 4 (2)
- 6 (1)
- 10 (1)
- 16 (1)
- 25 (2)
- 35 (2)
- 50 (2)
- 70 (1)
- 95 (1)
- 120 (1)
- 150 (1)
- 185 (1)
- 240 (1)
- No (12)
- Yes (17)
| E-number | Dimension n x mm² | Outer dimensions (min - max) mm | Weight kg/100m |
| N8879710 | 4x(2x1) | 15.3-16.5 | 31 |
| N8871040 | 4G1,5 | 10.8-12.0 | 24 |
| N8871050 | 5G1,5 | 10.9.12.1 | 22.5 |
| N8879810 | 3x(2x1,5) | 16.5-17.8 | 36 |
| 0261900 | 7G1,5 | 10.9-12.1 | 19.2 |
| N8879910 | 4x(2x1,5) | 17.2-18.5 | 38.5 |
| 0261910 | 12G1,5 | 15.0-16.2 | 35 |
| 0261920 | 18G1,5 | 15.0-16.2 | 42 |
| N8872040 | 4G2,5 | 12.1-13.2 | 25 |
| 0261930 | 5G2,5 | 12.8-14.0 | 28 |
| 0261940 | 12G2,5 | 17.4-18.6 | 53 |
| N8872180 | 18G2,5 | 17.5-18.8 | 65 |
| N8873040 | 4G4 | 13.6-14.7 | 33 |
| N8873050 | 5G4 | 13.8-15.0 | 34.5 |
| 0261950 | 4G6 | 15.1-16.3 | 42 |
| 0261960 | 4G10 | 18.4-19.6 | 64 |
| N8874160 | 4G16 | 21.2-22.5 | 94 |
| N8874250 | 4G25 | 24.5-26.2 | 137 |
| N8874350 | 4G35 | 29.6-31.6 | 188 |
| N8874500 | 4G50 | 35.1-37.6 | 255 |
| N8877010 | 1x25 | 10.3-11.5 | 33 |
| N8878010 | 1x35 | 12.3-13.5 | 43 |
| N8879010 | 1x50 | 15.4-16.6 | 61 |
| N8879110 | 1x70 | 17.0-18.3 | 81 |
| N8879210 | 1x95 | 18.9-20.1 | 103 |
| N8879310 | 1x120 | 21.4-22.8 | 132 |
| N8879410 | 1x150 | 23.1-24.5 | 165 |
| N8879510 | 1x185 | 25.5-27.2 | 200 |
| N8879610 | 1x240 | 28.7 - 29.9 | 262 |
Standard:
DIN VDE 0295 cl. 5, VDE 0250
Rated Voltage Uo/U:
0,6/1kV
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
Polyester
Core identification:
Numerals, ≤5 cores: Colour coded
Protective conductor:
Yellow/Green
Inner sheath material:
PUR
Overall shield:
Braided tinned copper wire
Supporting element:
Textile braid
Outer sheath:
PUR
Sheat colour:
Black
Bending radius fixed:
6 x cable diameter
Bending radius moved:
6 x cable diameter
Min operating temperature fixed:
-50°C
Max operating temperature fixed:
+90°C
Min operating temperature moved:
-40°C
Max operating temperature moved:
+90°C
Testing voltage:
2500V
Max temperature at conductor:
+90°C
Tensile strength:
15 N/mm²
Flame retardant:
IEC 60332-1
