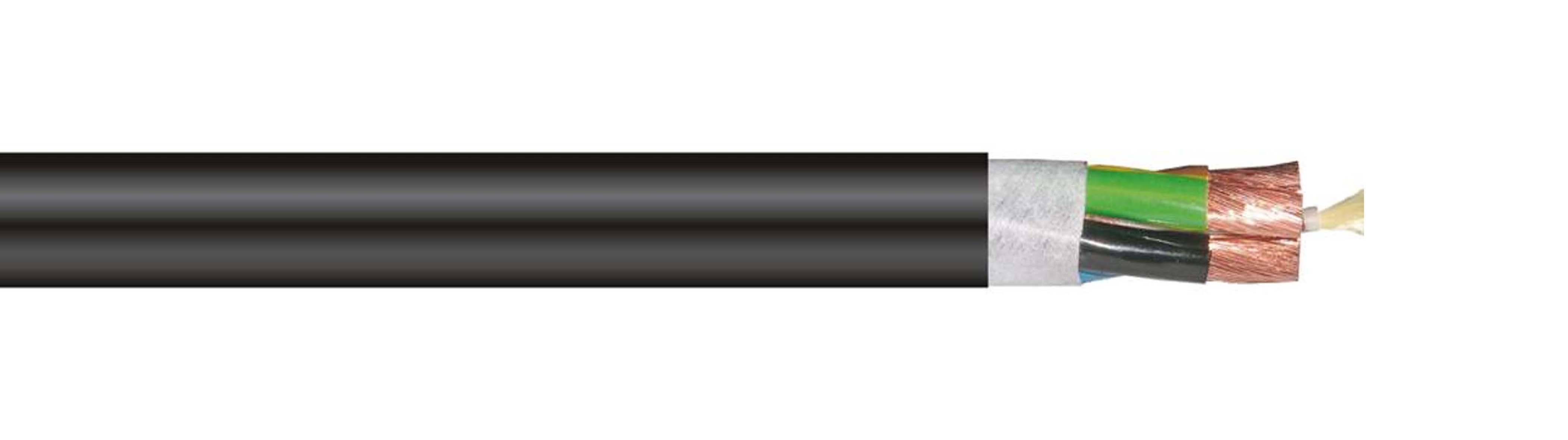

Novoflex HEAVY PUR-HF/90
PUR-sheathed trolley cable
- 3 (2)
- 4 (9)
- 7 (2)
- 12 (2)
- 18 (2)
- 24 (2)
- 30 (2)
- 5 (6)
- 1 (10)
- 1.5 (7)
- 2.5 (8)
- 4 (2)
- 6 (2)
- 10 (2)
- 16 (3)
- 25 (3)
- 35 (2)
- 50 (2)
- 70 (1)
- 95 (1)
- 120 (1)
- 150 (1)
- 185 (1)
- 240 (1)
- Yes (27)
- No (10)
| E-number | Dimension n x mm² | Outer dimensions (min - max) mm | Weight kg/100m |
| N8861030 | 3G1,5 | 6.7 - 8.3 | 9.1 |
| 0261500 | 4G1,5 | 7.7 - 9.3 | 11 |
| N8861070 | 7G1,5 | 11.0 - 13.0 | 17 |
| 0261510 | 12G1,5 | 13.8 - 15.8 | 32.3 |
| 0261520 | 18G1,5 | 14.0 - 16.0 | 38.4 |
| 0261530 | 24G1,5 | 16.0 - 18.0 | 48 |
| N8861300 | 30G1,5 | 20.0 - 22.0 | 68 |
| N8862030 | 3G2,5 | 8.2 - 9.8 | 13 |
| N8862040 | 4G2,5 | 8.8 - 10.4 | 16 |
| 0261540 | 5G2,5 | 9.6 - 11.2 | 19 |
| 0261550 | 7G2,5 | 11.0 - 13.0 | 26 |
| 0261560 | 12G2,5 | 16.0 - 18.0 | 46.7 |
| N8862180 | 18G2,5 | 16.5 - 18.5 | 57.6 |
| N8862240 | 24G2,5 | 19.0 - 21.0 | 75.8 |
| N8862300 | 30G2,5 | 25.5 - 27.5 | 108 |
| N8863040 | 4G4 | 10.0 - 12.0 | 21.4 |
| N8863050 | 5G4 | 10.7 - 12.8 | 28 |
| 0261580 | 4G6 | 11.3 - 13.3 | 31.5 |
| N8864050 | 5G6 | 13.0 - 15.0 | 40.2 |
| 0261590 | 4G10 | 14.5 - 16.5 | 51 |
| N8865100 | 5G10 | 15.7 - 16.8 | 62.9 |
| N8866010 | 1x16 | 8.2 - 10.2 | 18.8 |
| N8864160 | 4G16 | 17.5 - 19.5 | 76.5 |
| N8865160 | 5G16 | 19.2 - 21.3 | 95 |
| N8867010 | 1x25 | 9.6 - 11.6 | 27.1 |
| N8864250 | 4G25 | 20.5 - 23.5 | 115 |
| N8865250 | 5G25 | 24.3 - 27.3 | 143 |
| N8868010 | 1x35 | 12.0 - 14.0 | 36.8 |
| N8864350 | 4G35 | 26.0 - 29.0 | 158.2 |
| N8869010 | 1x50 | 13.5 - 15.5 | 53.3 |
| N8864500 | 4G50 | 28.5 - 32.5 | 217.5 |
| N8869110 | 1x70 | 16.0 - 18.0 | 74.8 |
| N8869210 | 1x95 | 17.6 - 19.6 | 97 |
| N8869310 | 1x120 | 19.0 - 22.0 | 121.5 |
| N8869410 | 1x150 | 21.0 - 14.0 | 155.2 |
| N8869510 | 1x185 | 23.5 - 26.5 | 183 |
| N8869610 | 1x240 | 27.5 - 30.5 | 245 |
Standard:
DIN VDE 0295 cl. 5, VDE 0250
Rated Voltage Uo/U:
0,6/1kV
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
Polyester
Core identification:
Numerals, ≤5 cores: Colour coded
Protective conductor:
Yellow/Green
Supporting element:
Textile braid
Outer sheath:
PUR
Sheat colour:
Black
Bending radius fixed:
6 x cable diameter
Bending radius moved:
6 x cable diameter
Min operating temperature fixed:
-50°C
Max operating temperature fixed:
+90°C
Min operating temperature moved:
-40°C
Max operating temperature moved:
+90°C
Testing voltage:
2500V
Max temperature at conductor:
+90°C
Flame retardant:
IEC 60332-1
