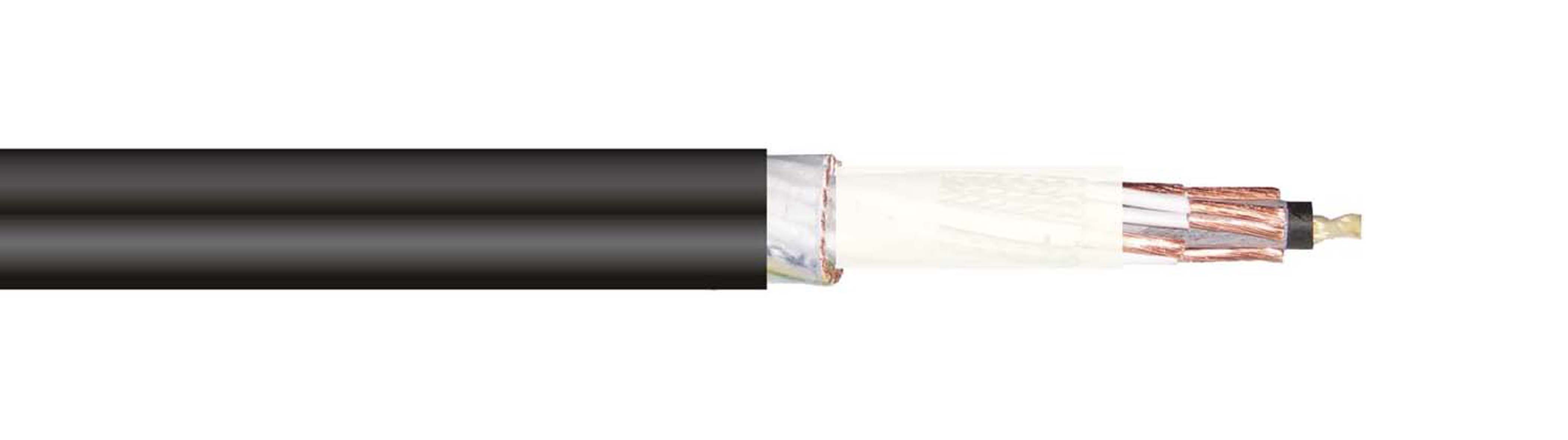

Novoflex HEAVY TR-PUR-HF/90
PUR-sheathed reeling cable
- 4 (8)
- 5 (6)
- 7 (2)
- 12 (2)
- 18 (2)
- 24 (2)
- 30 (2)
- 36 (1)
- 14 (1)
- 1.5 (7)
- 2.5 (8)
- 4 (3)
- 6 (2)
- 10 (2)
- 16 (2)
- 25 (1)
- 35 (1)
- Yes (26)
E-number | Dimension n x mm² | Outer dimensions (min - max) mm | Weight kg/100m | Dragbrottsgräns ca N |
0260790 | 4G1,5 | 10.0 - 11.2 | 15.5 | 1340 |
0260800 | 5G1,5 | 10.6 - 11.8 | 17.8 | 1690 |
0260810 | 7G1,5 | 12.1 - 13.5 | 21.8 | 2150 |
0260820 | 12G1,5 | 15.4 - 17.0 | 36.3 | 2600 |
0260830 | 18G1,5 | 16.3 - 18.1 | 45.9 | 2600 |
0260840 | 24G1,5 | 18.7 - 20.9 | 59 | 2800 |
0260850 | 30G1,5 | 21.6 - 24.0 | 72 | 2900 |
0260860 | 4G2,5 | 11.1 - 12.3 | 20.8 | 1345 |
0260870 | 5G2,5 | 11.8 - 13.0 | 23 | 2100 |
0260880 | 7G2,5 | 13.3 - 14.7 | 31.5 | 2550 |
0260890 | 12G2,5 | 18.5 - 20.5 | 48.5 | 2900 |
0260900 | 18G2,5 | 18.5 - 20.5 | 67.9 | 3450 |
0260910 | 24G2,5 | 21.2 - 23.6 | 86 | 3200 |
0260920 | 30G2,5 | 25.4 - 28.2 | 108 | 4200 |
0260930 | 36G2,5 | 27.0 - 30.0 | 132 | 4500 |
0260940 | 4G4 | 12.2 - 13.6 | 28.1 | 1690 |
N8545070 | 14G4 | 22.7 - 25.3 | 80 | 6000 |
0260950 | 4G6 | 13.3 - 14.9 | 37.2 | 1860 |
0260960 | 4G10 | 17.1 - 18.9 | 61.5 | 2300 |
0260970 | 4G16 | 19.9 - 22.1 | 92.4 | 2800 |
0260980 | 4G25 | 22.9 - 25.5 | 122.2 | 3300 |
0260990 | 4G35 | 27.2 - 30.0 | 177.8 | 3300 |
N8853050 | 5G4 | 13.1 - 14.5 | 31.8 | 2500 |
N8854060 | 5G6 | 14.5 - 16.1 | 43.5 | 3000 |
5G10 | 18.7 - 19.9 | 72 | ||
5G16 | 21.7 - 23.7 | 103 |
Standard:
DIN VDE 0295 cl. 5, VDE 0250
Rated Voltage Uo/U:
0,6/1kV
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
Polyester
Core identification:
Numerals, ≤5 cores: Colour coded
Protective conductor:
Yellow/Green
Inner sheath material:
PUR
Supporting element:
Textile braid
Outer sheath:
PUR
Sheat colour:
Black
Bending radius fixed:
6 x cable diameter
Bending radius moved:
6 x cable diameter
Min operating temperature fixed:
-50°C
Max operating temperature fixed:
+90°C
Min operating temperature moved:
-40°C
Max operating temperature moved:
+90°C
Testing voltage:
2500V
Max temperature at conductor:
+90°C
Flame retardant:
IEC 60332-1
