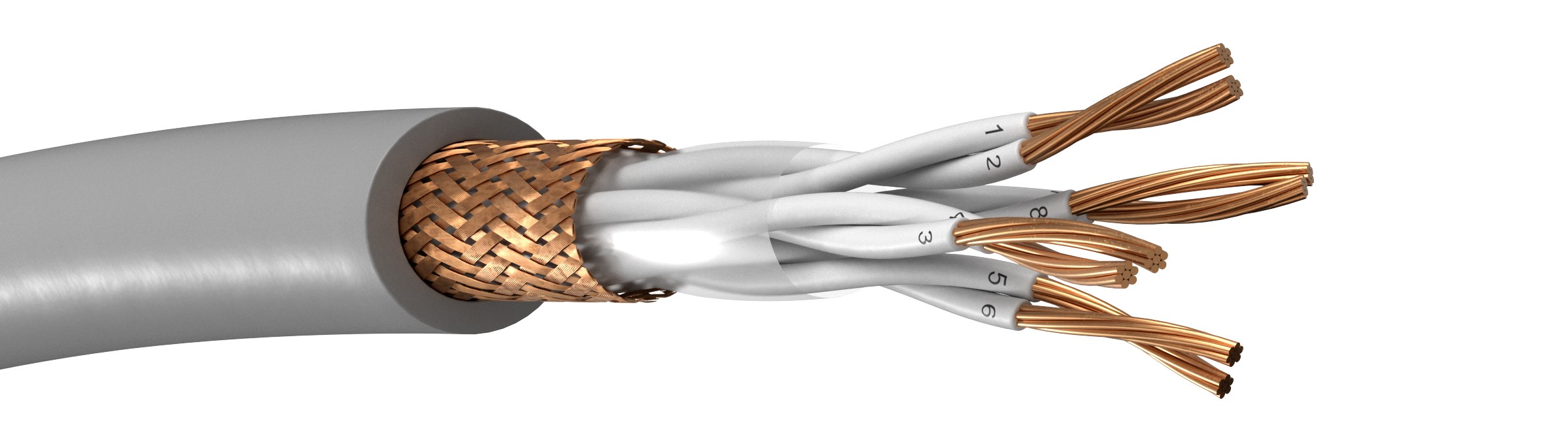

FM2XCH
Halogen free shielded electronic cable
- 2 (1)
- 4 (1)
- 8 (1)
- 14 (1)
- 20 (1)
- 28 (1)
- 38 (1)
- 48 (1)
- 0.75 (8)
- No (8)
| E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m |
| N2580110 | 1x2x0,75 | 7.1 | 4.2 |
| N2580120 | 2x2x0,75 | 10 | 6.9 |
| N2580130 | 4x2x0,75 | 11.7 | 11.2 |
| N2580140 | 7x2x0,75 | 14.3 | 16.83 |
| N2580150 | 10x2x0,75 | 17.9 | 24.85 |
| N2580160 | 14x2x0,75 | 19.5 | 31.98 |
| N2580170 | 19x2x0,75 | 21.6 | 40.81 |
| N2580180 | 24x2x0,75 | 25.4 | 49.92 |
Halogen free shielded communication cable in radio-, radar- and information-systems of marine vehicles.
Standard:
IEC 60092/375-376, IEC 60092/350-359
Approvals:
ABS, BV, CRS, DNV, LR, NK, RINA
Rated Voltage Uo/U:
60/250V
Conductor class:
Class 2 = stranded wires
Conductor material:
Copper
Core insulation:
XLPE
Core identification:
White with numerals
Overall shield:
Braided copper wire
Outer sheath:
SHF1
Sheat colour:
Grey
Bending radius fixed:
8 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+90°C
Halogen-free acc. to:
IEC 60754/1-2
Smoke emission:
IEC 61034/1-2 (DIN EN 50268/1-2)
Flame retardant:
IEC 60332-1, IEC 60332-3-22
