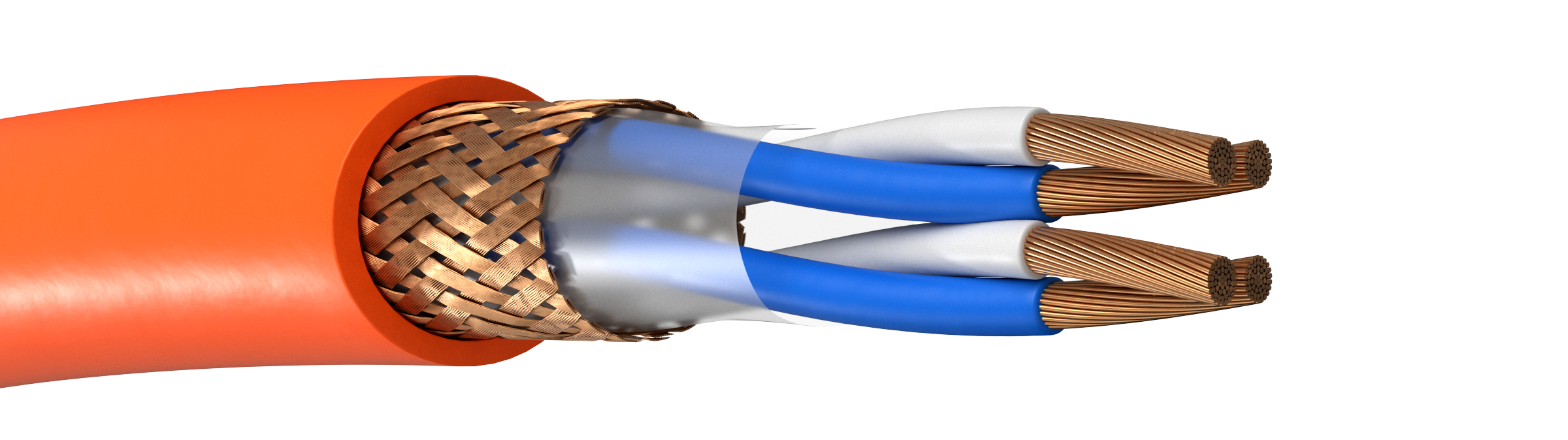

Novosafe RFE-FRHF
Fire resistant halogen free instrument and communication cable
- 2 (2)
- 4 (2)
- 8 (2)
- 16 (2)
- 24 (2)
- 38 (1)
- 64 (1)
- 0.75 (7)
- 1.5 (5)
- No (12)
| E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m |
| N4222020 | 1x2x0,75 | 9.5 | 11.5 |
| N4222040 | 2x2x0,75 | 14 | 21 |
| N4222080 | 4x2x0,75 | 16.5 | 33 |
| N4222160 | 8x2x0,75 | 21 | 51.5 |
| N4222240 | 12x2x0,75 | 25.5 | 71 |
| N4222380 | 19x2x0,75 | 31 | 102.5 |
| N4222640 | 32x2x0,75 | 39.4 | 160.5 |
| N4224020 | 1x2x1,5 | 10.5 | 15.5 |
| N4224040 | 2x2x1,5 | 16 | 31.5 |
| N4224080 | 4x2x1,5 | 18.5 | 43 |
| N4224160 | 8x2x1,5 | 24 | 72.5 |
| N4224240 | 12x2x1,5 | 29 | 101 |
Approvals:
ABS, BV, CCS, CRS, DNV, LR, RINA
Rated Voltage Uo/U:
150/250V
Conductor class:
Klass 2 = fåtrådig (7 trådar)
Conductor material:
Copper
Core insulation:
Mica tape and XLPE
Core identification:
A: White with numerals, B: Blue with numerals
Overall shield:
Braided copper wire
Shield coverage:
>94%
Outer sheath:
Polyolefin SHF1
Sheat colour:
Orange
Bending radius fixed:
6 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+80°C
Lowest installation temperature:
-15°C
Conductor resistance:
0,75mm² 52 Ohm/km / 1,5mm² 24,4 Ohm/km
Insulation resistance:
≥1500 MOhm/km
Capacitance:
0,75mm² 45nF/km / 1,5mm² 55 nF/km
Inductance:
0,75mm² 0,6 mH/km / 1,5mm² 0,7 mH/km
Max temperature at conductor:
+90°C
Halogen-free acc. to:
IEC 60754
Smoke emission:
IEC 61034
Fire resistant:
IEC 60331-1, -2
Flame retardant:
IEC 60332-1, IEC 60332-3-22
