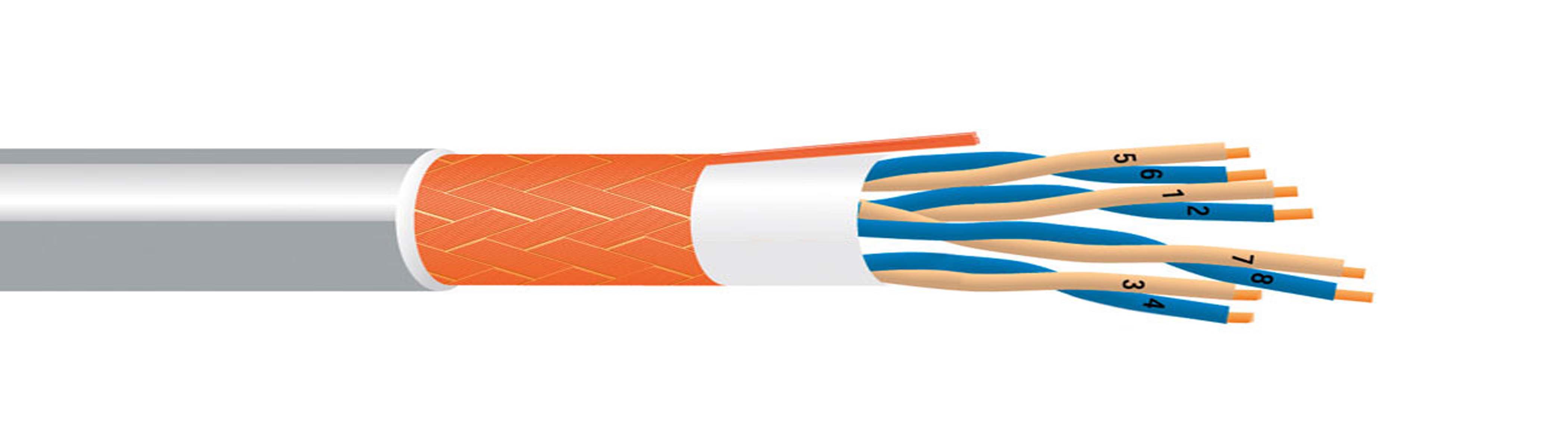

RFE-HF
Halogen free shielded instrument and electronic cable
- 2 (3)
- 4 (6)
- 8 (3)
- 14 (3)
- 16 (3)
- 20 (3)
- 24 (3)
- 28 (3)
- 38 (3)
- 48 (3)
- 74 (1)
- 0.5 (12)
- 0.75 (11)
- 1.5 (11)
- No (34)
| E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m |
| N2550020 | 1x2x0,5 | 6.5 | 7.5 |
| N2560040 | 2x2x0,5Quad | 7.5 | 9.5 |
| N2550040 | 2x2x0,5 | 9.5 | 12 |
| N2550080 | 4x2x0,5 | 10.5 | 15.5 |
| N2550140 | 7x2x0,5 | 12.5 | 22 |
| N2550160 | 8x2x0,5 | 13.5 | 24 |
| N2550200 | 10x2x0,5 | 15.5 | 31.5 |
| N2550240 | 12x2x0,5 | 16 | 35 |
| N2550280 | 14x2x0,5 | 17 | 39 |
| N2550380 | 19x2x0,5 | 19 | 49 |
| N2550480 | 24x2x0,5 | 21.5 | 60 |
| N2550720 | 37x2x0,5 | 34 | 120 |
| N2551020 | 1x2x0,75 | 7 | 8.5 |
| N2561040 | 2x2x0,75Quad | 8.5 | 11.5 |
| N2551040 | 2x2x0,75 | 11 | 15 |
| N2551080 | 4x2x0,75 | 12.5 | 21 |
| N2551140 | 7x2x0,75 | 15 | 29 |
| N2551160 | 8x2x0,75 | 16 | 35 |
| N2551200 | 10x2x0,75 | 18 | 42.5 |
| N2551240 | 12x2x0,75 | 19 | 47.5 |
| N2551280 | 14x2x0,75 | 20 | 53 |
| N2551380 | 19x2x0,75 | 23 | 68 |
| N2551480 | 24x2x0,75 | 25.5 | 82 |
| N2553020 | 1x2x1,5 | 10 | 14 |
| N2563040 | 2x2x1,5Quad | 10.5 | 18.5 |
| N2553040 | 2x2x1,5 | 14.5 | 23.5 |
| N2553080 | 4x2x1,5 | 17 | 38 |
| N2553140 | 7x2x1,5 | 20 | 55.5 |
| N2553160 | 8x2x1,5 | 21.5 | 63.5 |
| N2553200 | 10x2x1,5 | 24.5 | 77 |
| N2553240 | 12x2x1,5 | 26 | 86.5 |
| N2553280 | 14x2x1,5 | 27.5 | 97.5 |
| N2553380 | 19x2x1,5 | 31.5 | 125 |
| N2553480 | 24x2x1,5 | 35 | 155.5 |
Standard:
IEC 60092-350, IEC 60092-360, IEC 60092-376
Approvals:
ABS, BV, CCS, CRS, DNV, LR, RINA
Rated Voltage Uo/U:
150/250V
Conductor class:
Class 2 = stranded wires
Conductor material:
Copper
Core insulation:
XLPE
Core identification:
White and Blue with numerals
Overall shield:
Braided copper wire
Bending radius fixed:
6 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+90°C
Lowest installation temperature:
-15°C
Conductor resistance:
See technical appendix
Max temperature at conductor:
+90°C
Halogen-free acc. to:
IEC 60754
Smoke emission:
IEC 61034
Flame retardant:
IEC 60332-1, IEC 60332-3-22
