Encoder/resolver PMXX

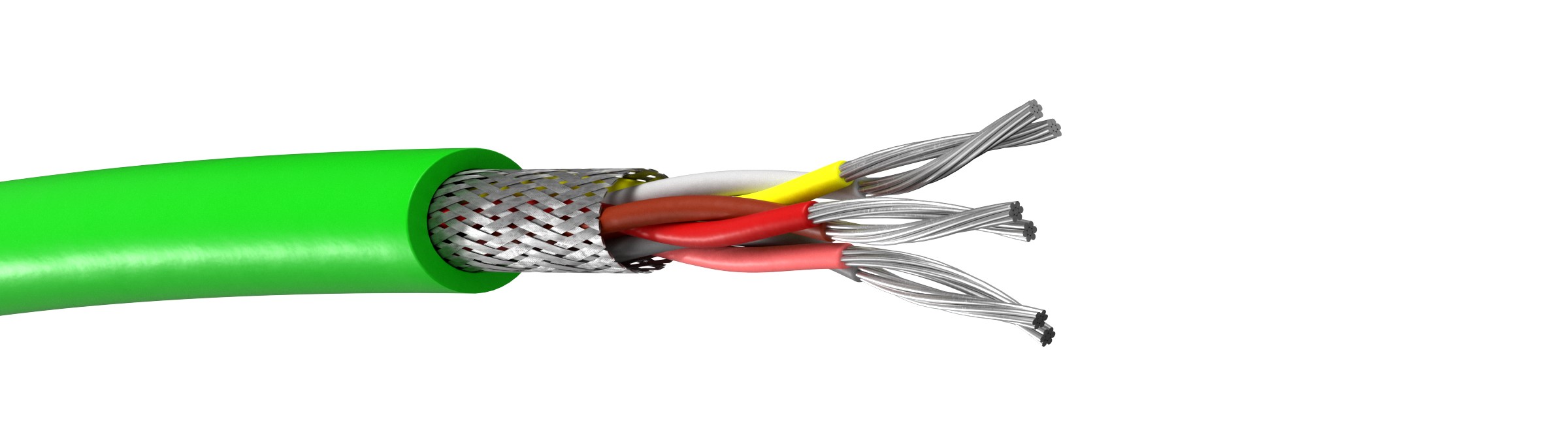

Halogen-free encoder/resolver cable for drag chain
- No (11)
| E-number | Dimension n x mm² | Manufacturer spec | Outer diameter mm | Weight kg/100m |
| N8337300 | (8x2x0,18) | Siemens | 7.8 | 8.5 |
| N8337310 | (3x(2x0,14)+4x0,14+2x0,5) | Siemens | 8.6 | 11 |
| N8337320 | (3x(2x0,14)+4x0,14+4x0,25+2x0,5) | Siemens | 10 | 13 |
| N8337330 | (3x(2x0,14)+2x(0,5)) | Siemens | 8.5 | 12 |
| N8337340 | (4x2x0,34+4x0,5) | Siemens | 9.2 | 12.4 |
| N8337350 | (4x2x0,25+2x0,5) | Bosch / Indramat | 8.5 | 9.8 |
| N8337360 | (4x(2x0,25)) | Bosch / Indramat | 9 | 7.5 |
| N8337370 | (9x0,5) | Bosch / Indramat | 9 | 11 |
| N8337380 | ((6x0,14)+2x(2x0,14)+2x2x0,14+4x0,5) | Bosch / Indramat | 9.4 | 8.5 |
| N8337390 | (4x2x0,14+4x0,5) | Heidenhain | 8.6 | 9.5 |
| N8337400 | (4x(2x0,34)) | - | 11.2 | 7.5 |
Approvals:
UL/CSA AWM
Rated Voltage acc to. UL/CSA:
300V (8x2x0,18 30V)
Conductor class:
Class 6 = extra fine stranded wires
Conductor material:
Copper
Core insulation:
Polyolefin
Fabric lapping:
Foil
Overall shield:
Braided tinned copper wire
Shield coverage:
≥85%
Outer sheath:
PUR
Sheat colour:
Green RAL 6018
Bending radius fixed:
3 x cable diameter
Bending radius moved:
6 x cable diameter
Min operating temperature fixed:
-50°C
Max operating temperature fixed:
+80°C
Min operating temperature moved:
-40°C
Max operating temperature moved:
+80°C
Testing voltage:
2000V
Impedance:
100 Ohm
Halogen-free acc. to:
IEC 60754
Flame retardant:
IEC 60332-1, UL1581 VW1
