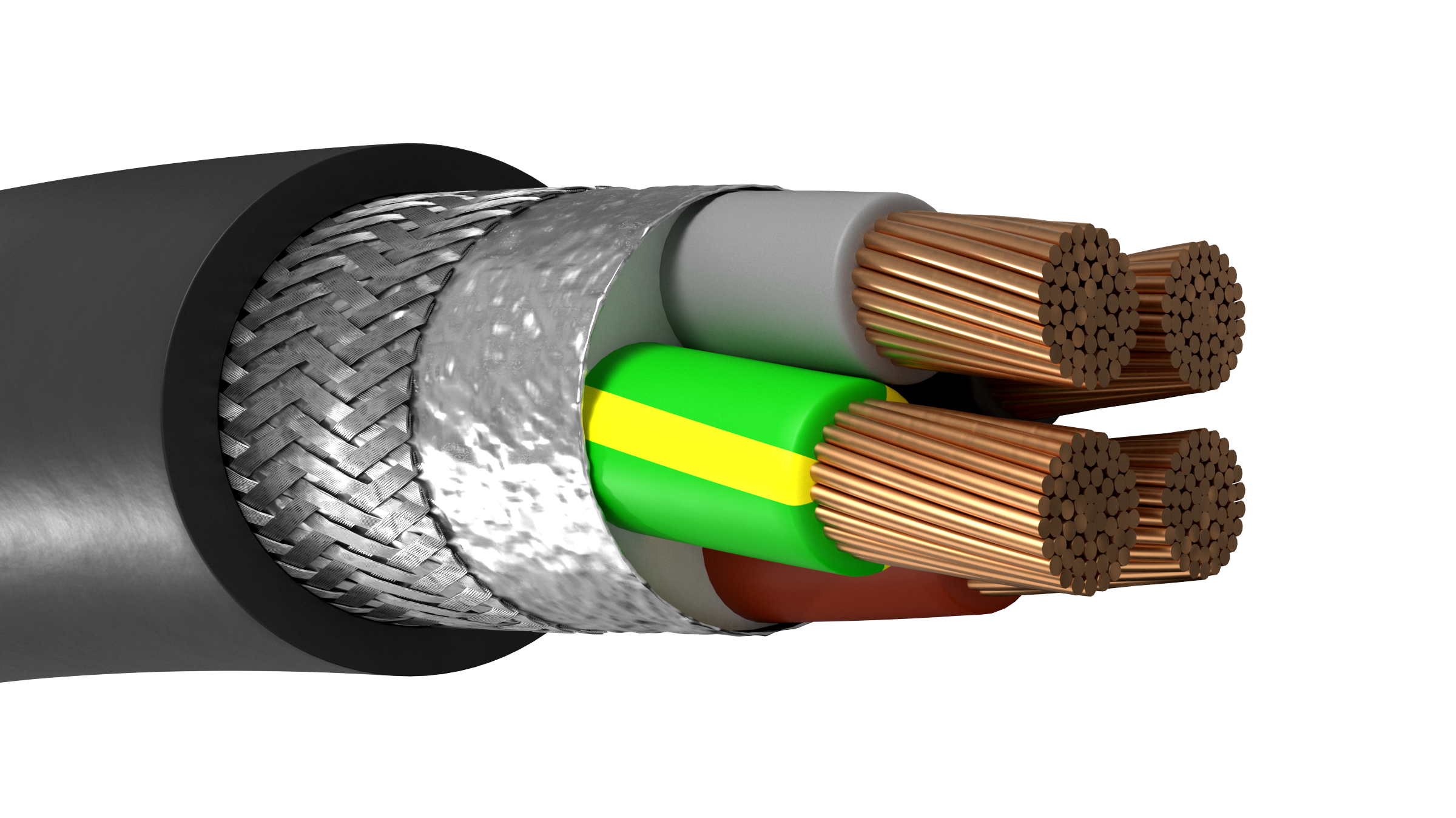

NCH-2 Plus UV
Halogen free and UV double screened control cable
- 4 (15)
- 1.5 (2)
- 2.5 (1)
- 4 (1)
- 6 (1)
- 10 (1)
- 16 (1)
- 25 (1)
- 35 (1)
- 50 (1)
- 70 (1)
- 95 (1)
- 120 (1)
- 150 (1)
- 185 (1)
- 240 (1)
- Yes (15)
| E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m |
| 0547130 | 4G1,5 | 11.3 | 23 |
| 0547140 | 4G2,5 | 12.4 | 30 |
| 0547150 | 4G4 | 13.6 | 48.5 |
| 0547160 | 4G6 | 14.8 | 63 |
| 0547170 | 4G10 | 17.5 | 86 |
| 0547180 | 4G16 | 20.2 | 129 |
| 0547190 | 4G25 | 24.8 | 186 |
| 0547200 | 4G35 | 27.4 | 261 |
| 0547210 | 4G50 | 32 | 295 |
| 0547220 | 4G70 | 37.1 | 395 |
| 0547230 | 4G95 | 41.6 | 530 |
| 0547240 | 4G120 | 45.2 | 660 |
| 0547250 | 4G150 | 52 | 704 |
| 0547260 | 4G185 | 58.1 | 838 |
| 0547280 | 4G240 | 66.1 | 1130 |
Standard:
VDE 0207, 0250, 0295, IEC 60228
Approvals:
SSEN 60204
Rated Voltage Uo/U:
0,6/1kV
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
XLPE
Core identification:
Black, Brown, Grey and Green/Yellow
Protective conductor:
Yellow/Green
Overall shield:
Aluminum foil and braided tinned copper wire
Outer sheath:
Halogen free special compound
Sheat colour:
Black
Bending radius fixed:
7,5 x cable diameter at the outer Ø <20 mm, 10 x cable diameter at the outer Ø >20mm
Bending radius moved:
10 x cable diameter at outer Ø <20mm, 20 x cable diameter at the outer Ø >20mm
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+80°C
Min operating temperature moved:
-5°C
Max operating temperature moved:
+70°C
Testing voltage:
2500V
Max temperature at conductor:
+90°C
Halogen-free acc. to:
IEC 60754
Flame retardant:
IEC 60332-1, IEC 60332-3-24
