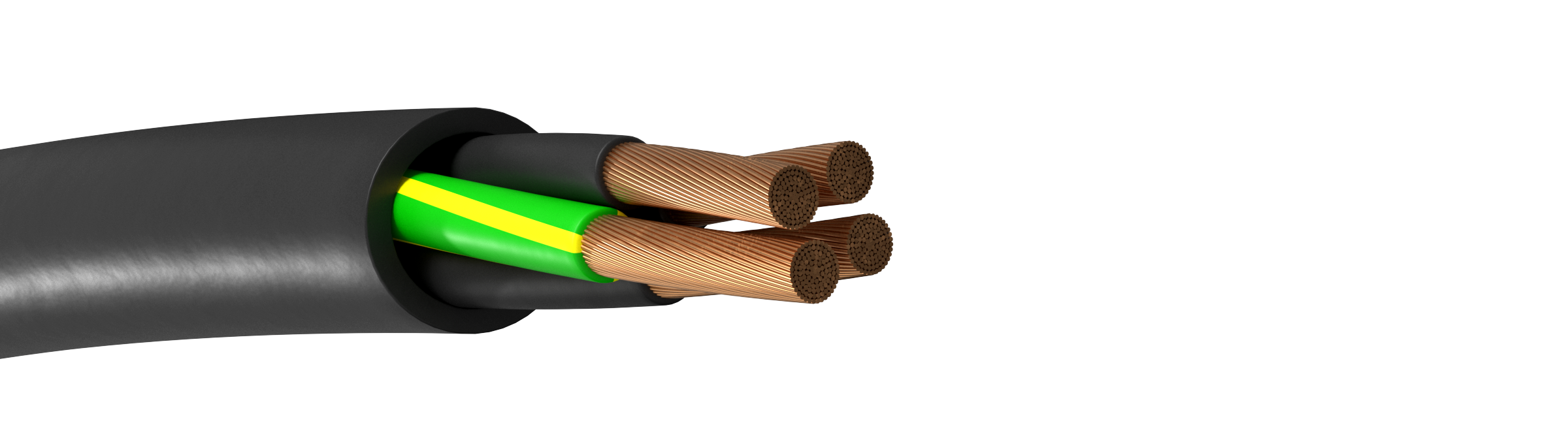

Novoflex 7320 SK-TPE UL/CSA
Highly flexiblel TPE-sheathed motor cable
- 4 (9)
- 5 (4)
- 1.5 (1)
- 2.5 (1)
- 4 (2)
- 6 (2)
- 10 (2)
- 16 (2)
- 25 (1)
- 35 (1)
- 50 (1)
- Yes (13)
| E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m |
| N8460040 | 4G1,5 | 7.6 | 9.7 |
| N8461040 | 4G2,5 | 9 | 15.1 |
| N8462040 | 4G4,0 | 10.9 | 23.2 |
| N8462050 | 5G4,0 | 12.1 | 29.5 |
| N8463040 | 4G6,0 | 13.4 | 34.8 |
| N8463050 | 5G6,0 | 15 | 43.6 |
| N8464040 | 4G10 | 17.2 | 57 |
| N8464050 | 5G10 | 19.3 | 72.1 |
| N8465040 | 4G16 | 21.7 | 90.5 |
| N8465050 | 5G16 | 24.3 | 114 |
| N8466040 | 4G25 | 25.4 | 135.5 |
| N8467040 | 4G35 | 31 | 191.4 |
| N8468040 | 4G50 | 36.6 | 271.5 |
Standard:
VDE 0295, IEC 60228
Approvals:
UL/CSA 80°C, 1000 V, cULus 80°C, 1000 V
Rated Voltage Uo/U:
0,6/1kV
Rated Voltage acc to. UL/CSA:
1000V
Conductor class:
Class 6 = extra fine stranded wires
Conductor material:
Copper
Core insulation:
TPE
Core identification:
Black with phase marking
Protective conductor:
Yellow/Green
Outer sheath:
TPE
Sheat colour:
Black RAL 9005
Bending radius fixed:
4 x cable diameter
Bending radius moved:
7,5 x cable diameter
Min operating temperature fixed:
-50°C
Max operating temperature fixed:
+90°C
Min operating temperature moved:
-40°C
Max operating temperature moved:
+90°C
Max. speed / travel distance:
10 m/s unsupported, 6 m/s sliding, max 400m
Max. acceleration:
80 m/s²
Testing voltage:
4000V
Conductor resistance:
See technical appendix
Flame retardant:
IEC 60332-1
