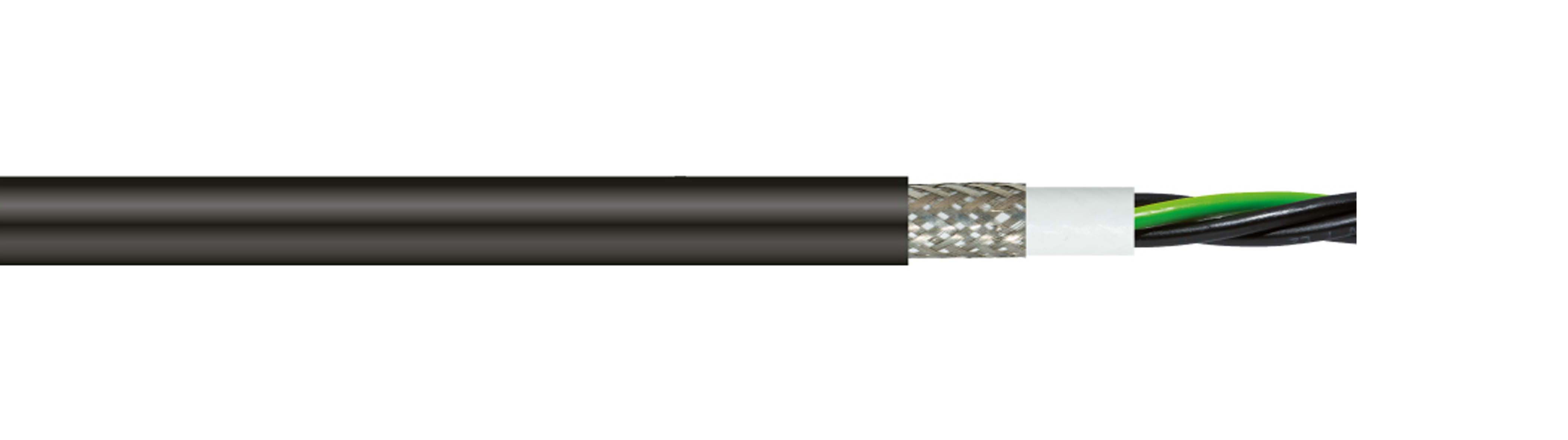

Novoflex 7420 SK-C-TPE UL/CSA
Highly flexible TPE-sheathed shielded motor cable
- 4 (9)
- 5 (5)
- 1.5 (1)
- 2.5 (2)
- 4 (2)
- 6 (2)
- 10 (2)
- 16 (2)
- 25 (1)
- 35 (1)
- 50 (1)
- Yes (14)
| E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m |
| N8470040 | 4G1,5 | 9.8 | 14.8 |
| N8471040 | 4G2,5 | 11.2 | 21 |
| N8471050 | 5G2,5 | 12.4 | 26 |
| N8472040 | 4G4,0 | 13.7 | 32.5 |
| N8472050 | 5G4,0 | 14.9 | 39.5 |
| N8473040 | 4G6,0 | 16.2 | 46.1 |
| N8473050 | 5G6,0 | 17.8 | 56.1 |
| N8474040 | 4G10 | 20.6 | 76 |
| N8474050 | 5G10 | 22.5 | 92 |
| N8475040 | 4G16 | 25.3 | 114 |
| N8475050 | 5G16 | 27.9 | 140.5 |
| N8476040 | 4G25 | 28.8 | 161.6 |
| N8477040 | 4G35 | 34.6 | 229 |
| N8478040 | 4G50 | 40.4 | 324 |
Standard:
VDE 0295, IEC 60228
Approvals:
UL/CSA 80°C, 1000 V, cULus 80°C, 1000 V
Rated Voltage Uo/U:
0,6/1kV
Rated Voltage acc to. UL/CSA:
1000V
Conductor class:
Class 6 = extra fine stranded wires
Conductor material:
Copper
Core insulation:
TPE
Core identification:
Black with phase marking
Protective conductor:
Yellow/Green
Inner sheath material:
TPE
Overall shield:
Braided tinned copper wire
Shield coverage:
>85%
Outer sheath:
TPE
Sheat colour:
Black RAL 9005
Bending radius fixed:
4 x cable diameter
Bending radius moved:
7,5 x cable diameter
Min operating temperature fixed:
-50°C
Max operating temperature fixed:
+90°C
Min operating temperature moved:
-40°C
Max operating temperature moved:
+90°C
Max. speed / travel distance:
10 m/s unsupported, 6 m/s sliding, max 400m
Max. acceleration:
80 m/s²
Testing voltage:
4000V
Conductor resistance:
See technical appendix
Flame retardant:
IEC 60332-1
