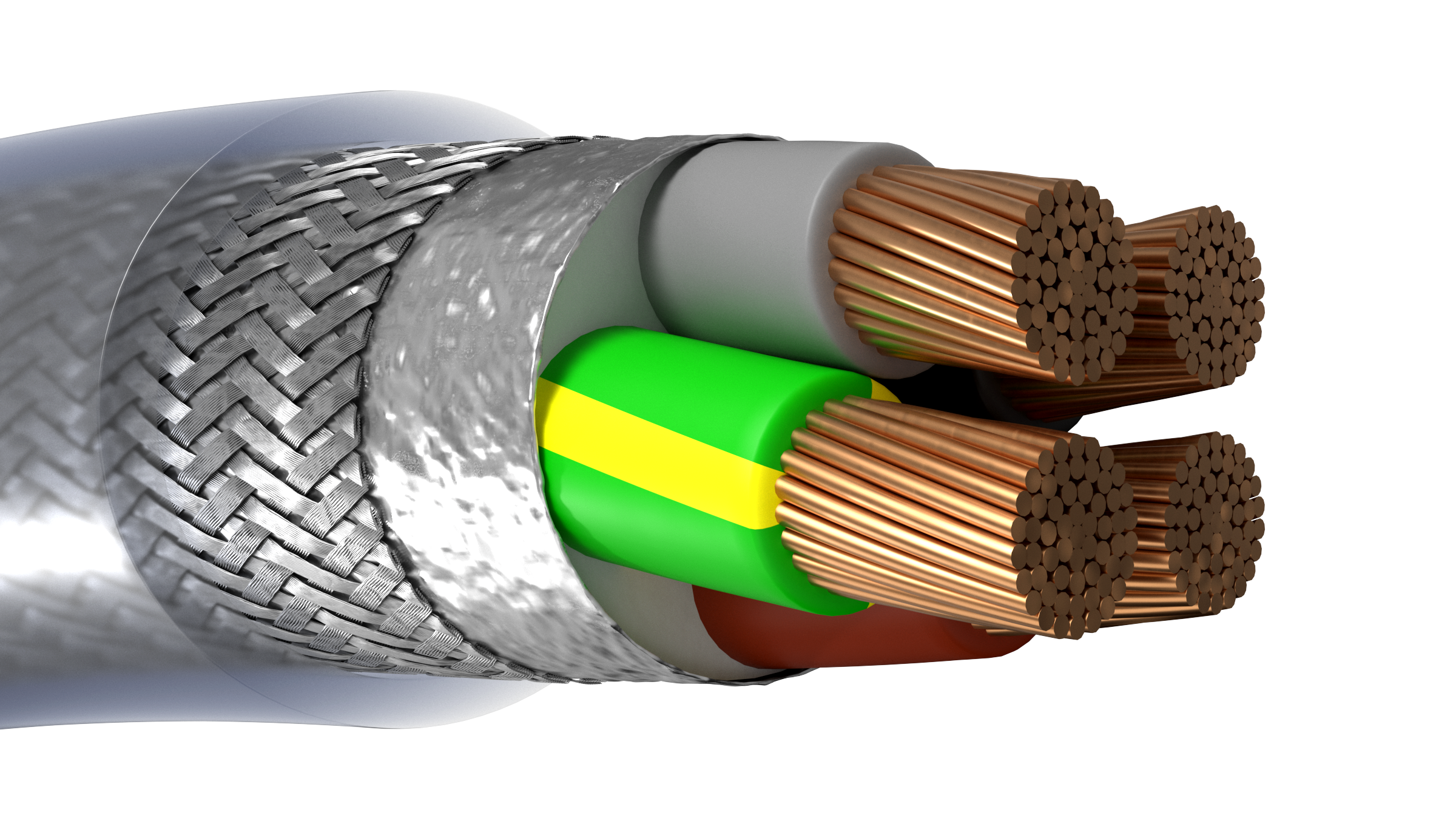

Novoflex NCY-2 Plus
Shielded (EMC) motor cable 0,6/1 kV
- 4 (15)
- 1.5 (1)
- 2.5 (1)
- 4 (1)
- 6 (1)
- 10 (1)
- 16 (1)
- 25 (1)
- 35 (1)
- 50 (1)
- 70 (1)
- 95 (1)
- 120 (1)
- 150 (1)
- 185 (1)
- 240 (1)
- Yes (15)
E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m |
0547000 | 4G1,5 | 10.4 | 21.7 |
0547010 | 4G2,5 | 12.1 | 24.2 |
0547020 | 4G4 | 14.5 | 33 |
0547030 | 4G6 | 16.4 | 42.5 |
0547040 | 4G10 | 19.3 | 63.5 |
0547050 | 4G16 | 21.9 | 91.7 |
0547060 | 4G25 | 26.6 | 132.8 |
0547070 | 4G35 | 29.9 | 178.5 |
0547080 | 4G50 | 35 | 241.7 |
0547090 | 4G70 | 39.4 | 329.8 |
0547100 | 4G95 | 46 | 460 |
0547110 | 4G120 | 51.9 | 660 |
0547120 | 4G150 | 57.5 | 759 |
N7729840 | 4G185 | 61.1 | 942 |
N7729940 | 4G240,0 | 69 | 1215 |
Standard:
VDE 0295, 0250, IEC 60228
Approvals:
EN 55011
Rated Voltage Uo/U:
0,6/1kV
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
PE
Core identification:
Black, Brown, Grey and Green/Yellow
Protective conductor:
Yellow/Green
Overall shield:
Aluminum foil and braided tinned copper wire
Outer sheath:
PVC
Sheat colour:
Transparent
Bending radius fixed:
5 x cable diameter at the outer Ø <12 mm, 7,5 x cable diameter at the outer Ø 12-20mm, 10 x cable diameter at the outer Ø >20mm
Bending radius moved:
10 x cable diameter at outer Ø <12mm, 15 x cable diamter at outer Ø 12-20mm, 20 x cable diameter at the outer Ø >20mm
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+70°C
Min operating temperature moved:
-5°C
Max operating temperature moved:
+70°C
Testing voltage:
4000V
Flame retardant:
IEC 60332-1
