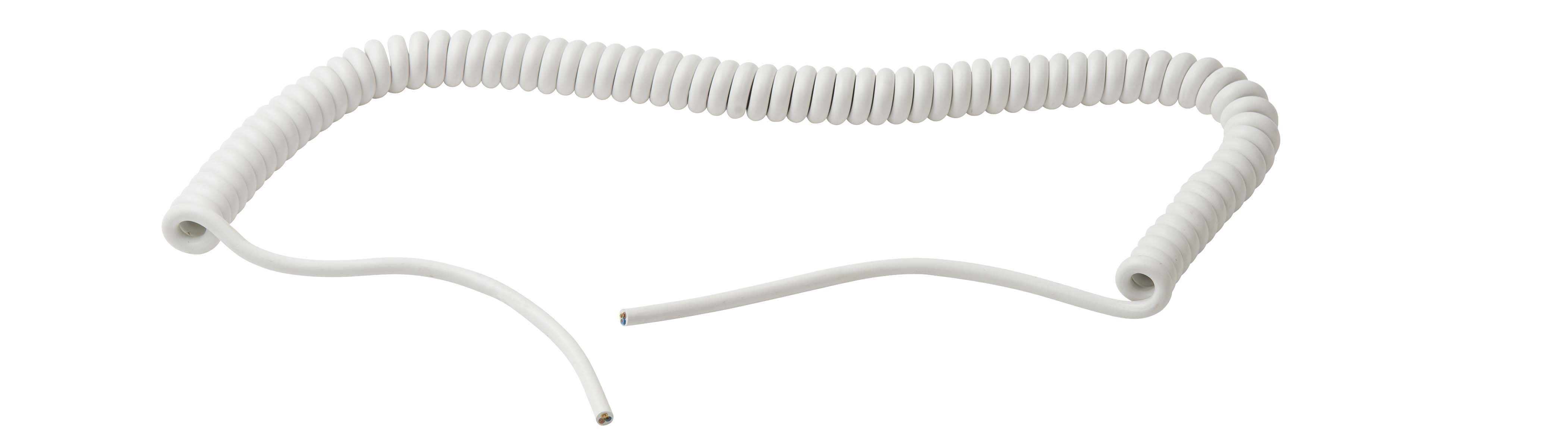

Spiral cable RKK (H05VV-F)
PVC-insulated PVC-sheathed spiral cable
- 3 (4)
- 1 (2)
- 1.5 (2)
- Yes (4)
| E-number | Dimension n x mm² | Retracted spiral length mm | Extended spiral length mm | Outer diam coiled cable mm | Colour |
| 2404153 | 3G1,0 | 500 | 2000 | 24 | Black |
| 2404152 | 3G1,0 | 1000 | 4000 | 24 | White |
| 2404154 | 3G1,5 | 500 | 2000 | 28.8 | White |
| 2404155 | 3G1,5 | 1500 | 6000 | 28.8 | White |
Approvals:
Cenelec HAR
Rated Voltage Uo/U:
300/500V
Conductor class:
Class 6 = extra fine stranded wires
Conductor material:
Copper
Core insulation:
PVC
Core identification:
Colour coded
Protective conductor:
Yellow/Green
Outer sheath:
PVC
Elongated endings:
approx. 150mm
Min operating temperature moved:
-5°C
Max operating temperature moved:
+70°C
Testing voltage:
2000V
Flame retardant:
IEC 60332-1
