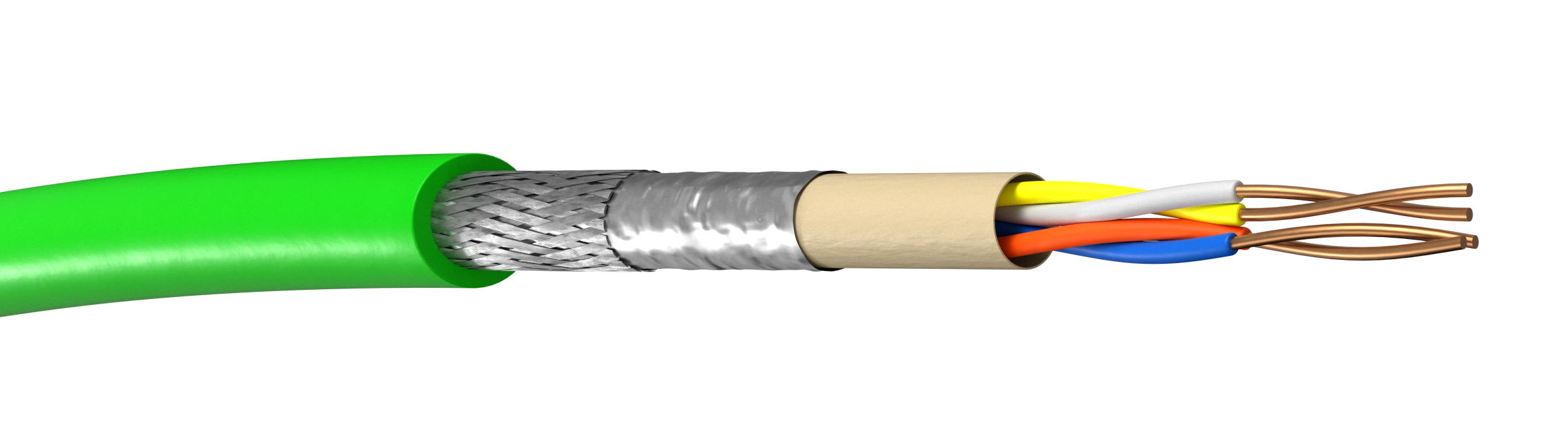

Novotronic Profinet UL/CSA, SK Type C
Industrial 100 Mbit/s Ethernet cable for drag chains
Standard:
UL 444
Rated Voltage Uo/U control cores:
125V
Conductor class:
19-wire (AWG22/19)
Conductor material:
Tinned Copper
Core insulation:
Polyolefin
Core identification:
White, Yellow, Blue and Orange
Overall shield:
Aluminum foil and braided tinned copper wire
Outer sheath:
PUR
Sheat colour:
Green RAL 6018
Bending radius moved:
8 x cable diameter
Min operating temperature moved:
-30°C
Max operating temperature moved:
+70°C
Insulation resistance:
Min. 5 G Ohm x km
Capacitance:
max. 48 nF/km
Impedance:
100 Ohm at 1-100 Hz
Halogen-free acc. to:
IEC 60754
Flame retardant:
IEC 60332-1
