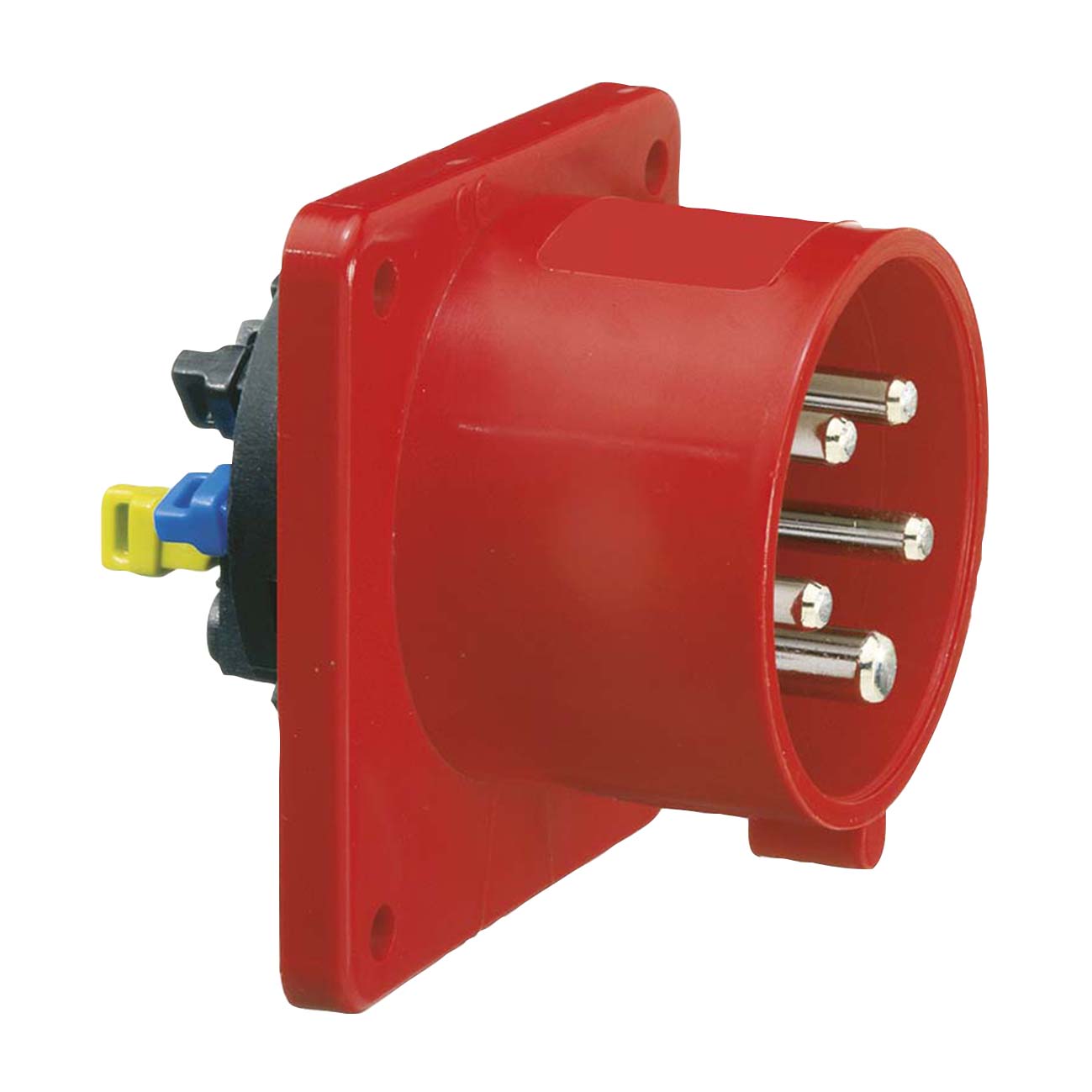

Straight Appliance Inlet with Flange Quick-Connect
16A / 32A / Brass nickel plated contacts
- Flange 75x75mm
- 16 (2)
- 32 (1)
- 3 (1)
- 5 (2)
- 230V / Blue (1)
- 400V / Red (2)
| E-number | Article no. | Description | Rated current (A) | Number of poles | Voltage / Color code | Fixing holes mm | Pcs/pack |
| 2421770 | 28019 | 216-6 | 16 | 3 | 230V / Blue | 60 x 60 | 1 |
| 2421771 | 28026 | 416-6 | 16 | 5 | 400V / Red | 60 x 60 | 1 |
| 2421772 | 28036 | 432-6 | 32 | 5 | 400V / Red | 60 x 60 | 1 |
Material Enclosure:
Polyamide
Material Terminals:
Brass nickel plated
Ingress protection:
IP44
