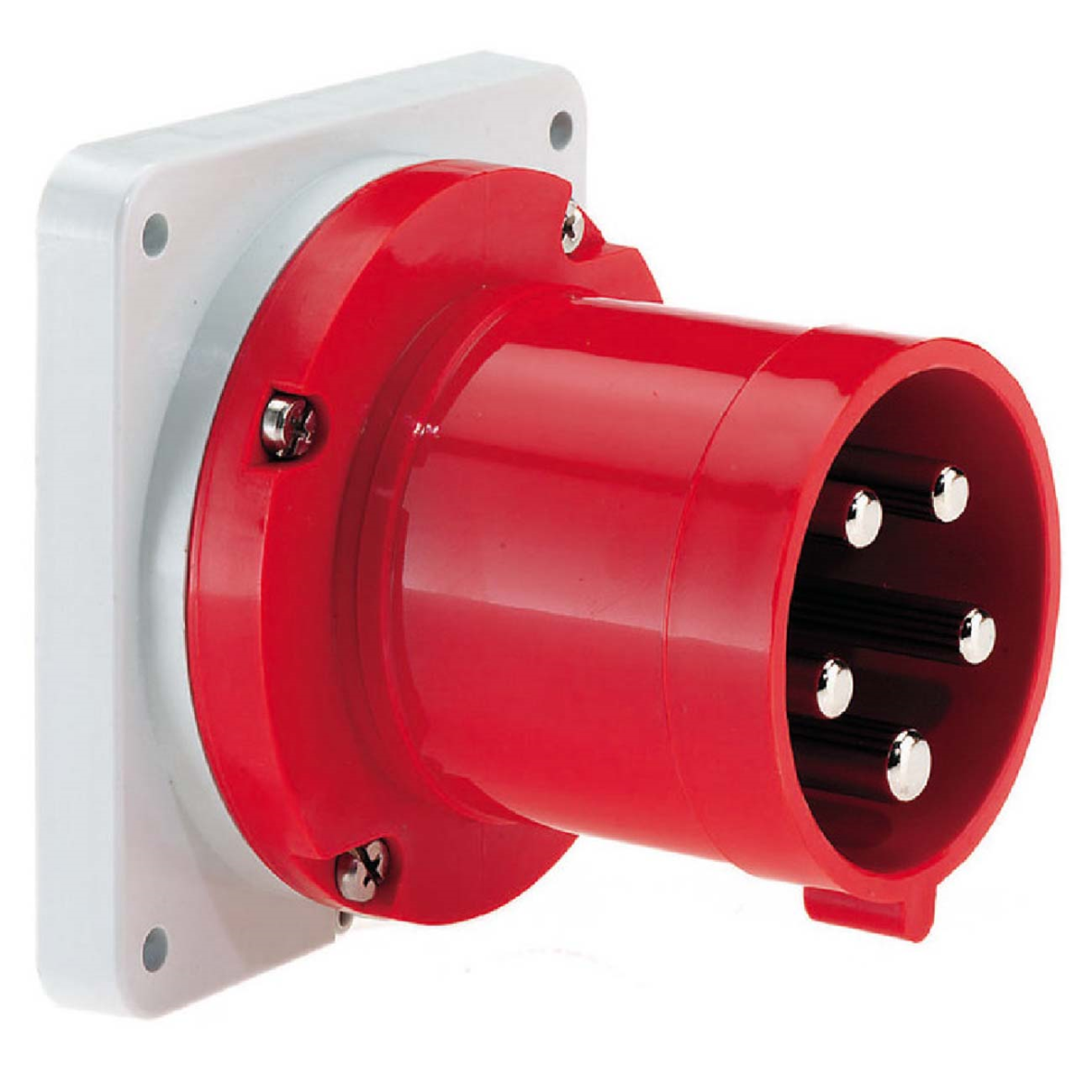

Straight Appliance Inlet with Flange and Screw Terminals
63A
- Flange 110x106mm
- 63 (6)
- 3 (1)
- 4 (3)
- 5 (2)
- 230V / Blue (2)
- 400V / Red (2)
- 500V / Black (2)
| E-number | Article no. | Description | Rated current (A) | Number of poles | Voltage / Color code | Fixing holes mm | Pcs/pack |
| - | 2834 | 263-6 | 63 | 3 | 230V / Blue | 90 x 90 | 5 |
| - | 2841 | 363-9 | 63 | 4 | 230V / Blue | 90 x 90 | 5 |
| 2421606 | 2837 | 463-6 | 63 | 5 | 400V / Red | 90 x 90 | 5 |
| 2421605 | 2833 | 363-6 | 63 | 4 | 400V / Red | 90 x 90 | 5 |
| - | 2864 | 363-7 | 63 | 4 | 500V / Black | 90 x 90 | 5 |
| - | 2858 | 463-7 | 63 | 5 | 500V / Black | 90 x 90 | 5 |
Material Terminals:
Brass nickel plated
Ingress protection:
IP44
