Connector with screw terminals and Multi-Grip IP44
63A / INNOLINQ-design
- Connector INNOLINQ-design with screw terminals and Multi-Grip
- IP44
- Screwless enclosure connection
- Simultanious cable gland and seal
- 63 (4)
- 3 (2)
- 4 (1)
- 5 (1)
- 230V / Blue (1)
- 400V / Red (3)
| E-number | Article no. | Description | Rated current (A) | Number of poles | Voltage / Color code | Cable entries mm | Pcs/pack |

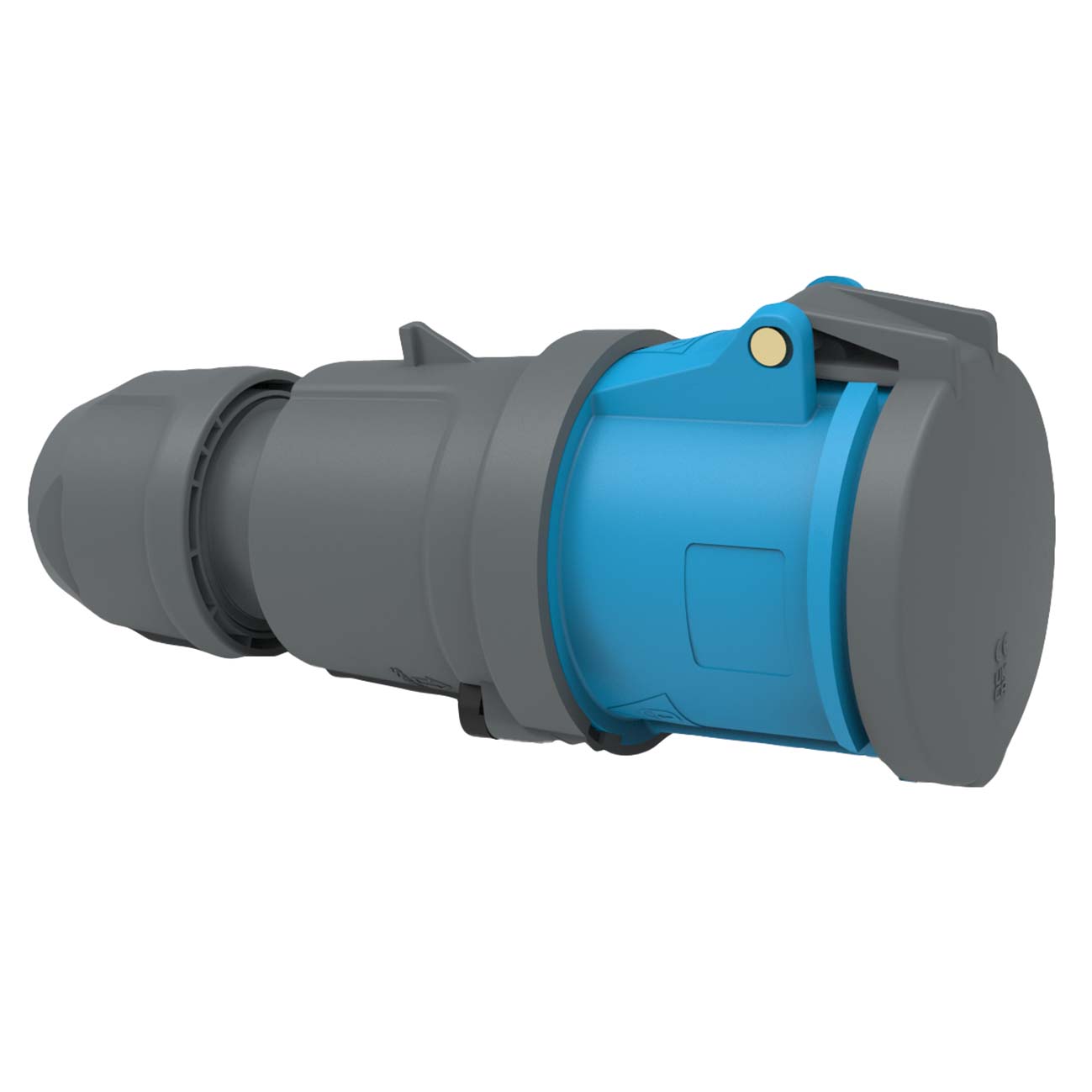

| - | 3104 | 263-6 | 63 | 3 | 230V / Blue | 16 - 36 | 5 |
| - | 3109 | 263-9 | 63 | 3 | 400V / Red | 16 - 36 | 5 |

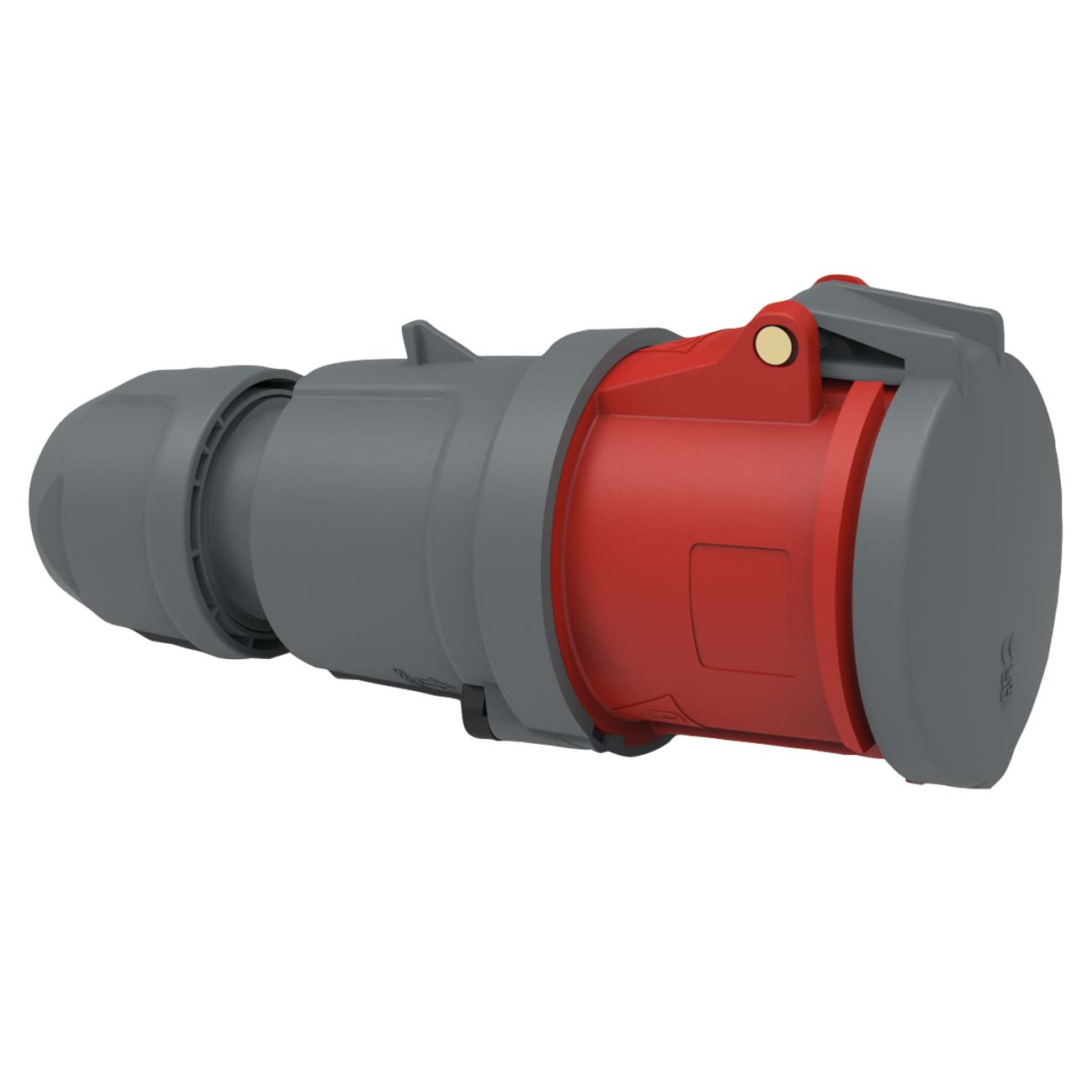

| 2421778 | 3151 | 363-6 | 63 | 4 | 400V / Red | 16 - 36 | 5 |
| 2421780 | 3112 | 463-6 | 63 | 5 | 400V / Red | 16 - 36 | 5 |
Material Enclosure:
Polyamide
Material Terminals:
Brass nickel plated
Connection capacity:
6 - 16mm²
Ingress protection:
IP44
