Connector with QUICK-CONNECT and MULTI-GRIP
16A / 32A / Lead-Free - INNOLINQ
- 16 (2)
- 32 (2)
- 3 (2)
- 5 (2)
- 230V / Blue (2)
- 400V / Red (2)
| E-number | Article no. | Description | Rated current (A) | Number of poles | Voltage / Color code | Cable entries mm | Pcs/pack |

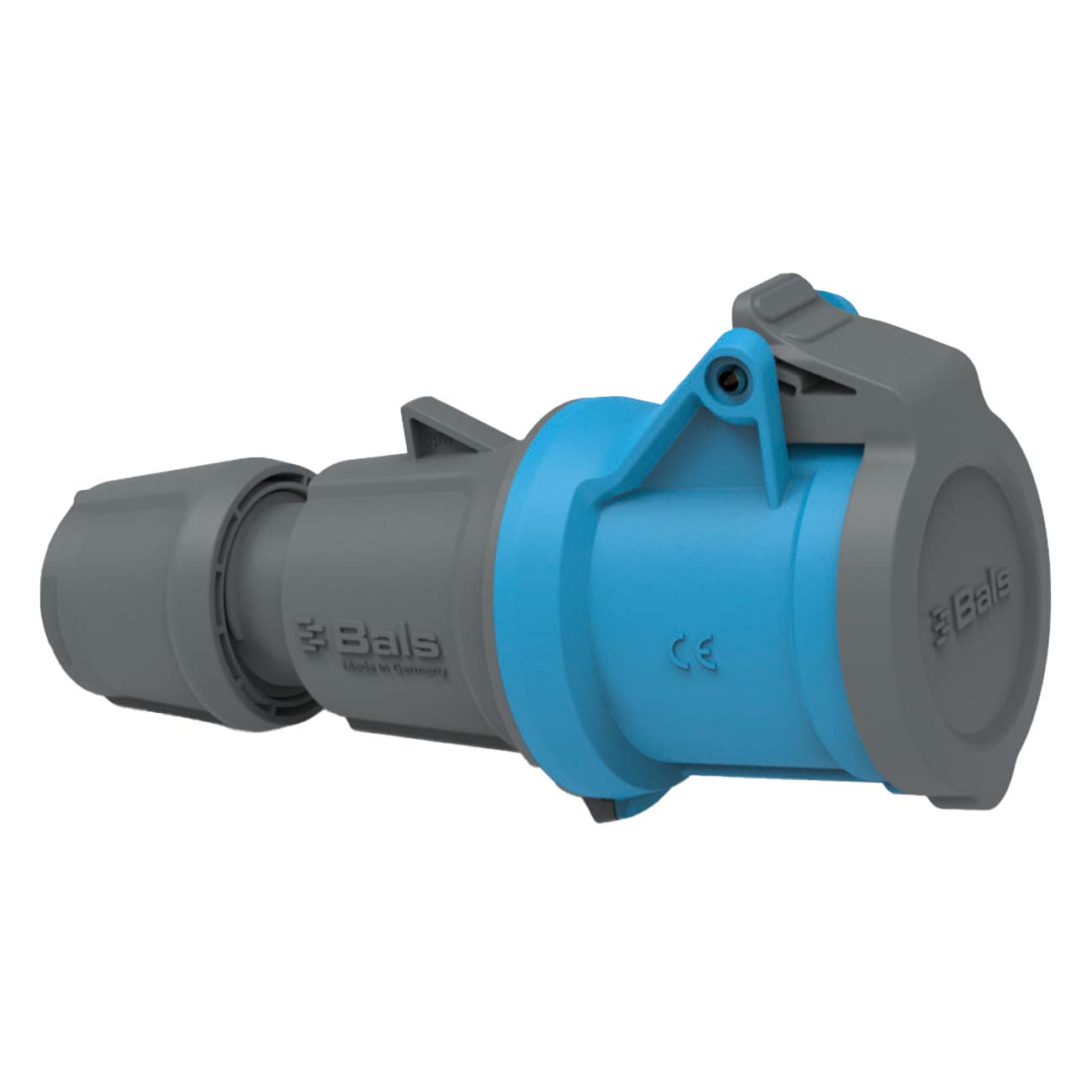

| 2418302 | 311 | 216-6 | 16 | 3 | 230V / Blue | 8 - 18 | 10 |

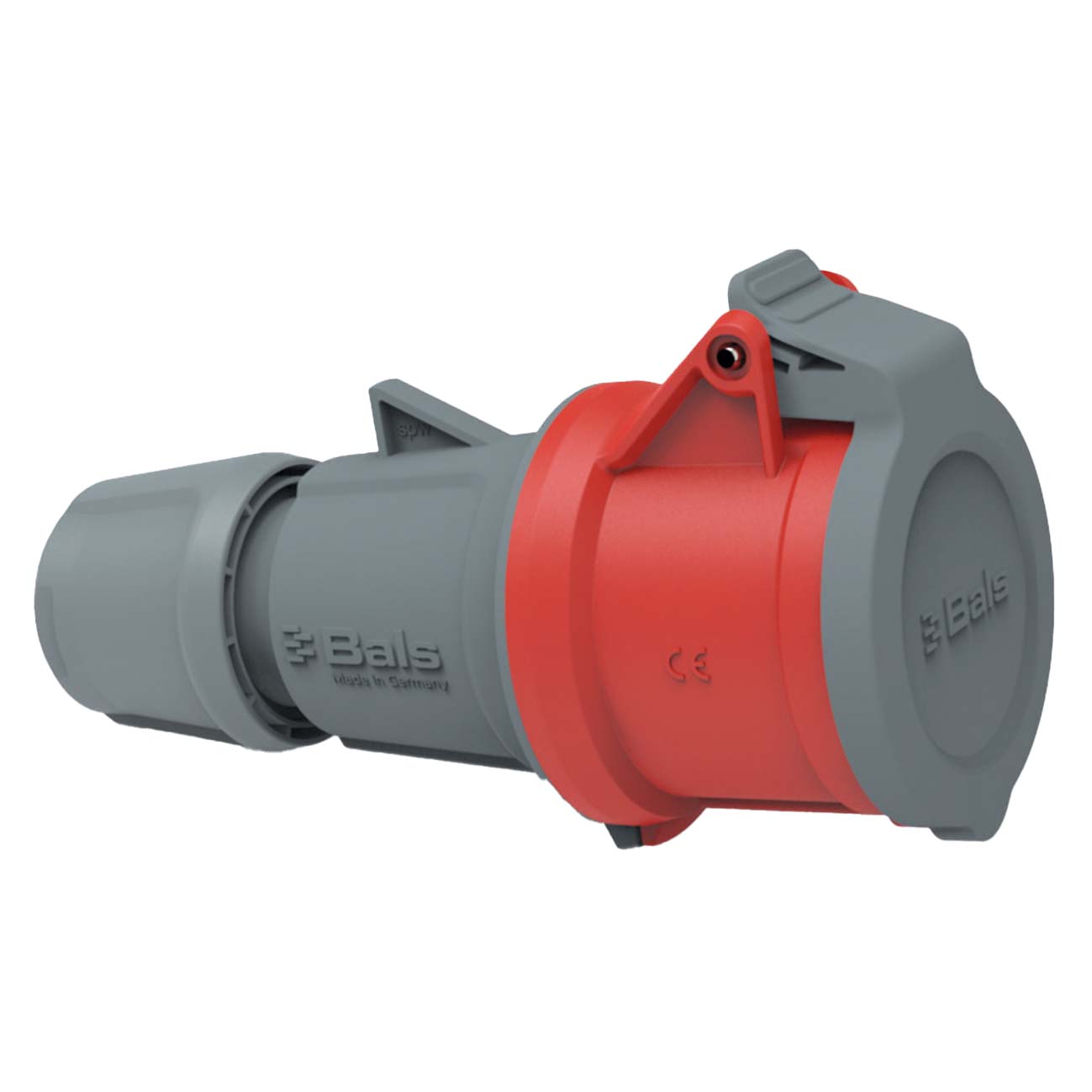

| 2418303 | 300 | 416-6 | 16 | 5 | 400V / Red | 10 - 21 | 10 |
| 2418367 | 3114 | 232-6 | 32 | 3 | 230V / Blue | 13 - 29 | 1 |
| 2418304 | 301 | 432-6 | 32 | 5 | 400V / Red | 13 - 29 | 10 |
Material Enclosure:
Polyamide
Material Terminals:
Brass
Connection capacity:
16A max. 2,5mm²
32A max. 6mm²
32A max. 6mm²
Ingress protection:
IP54
