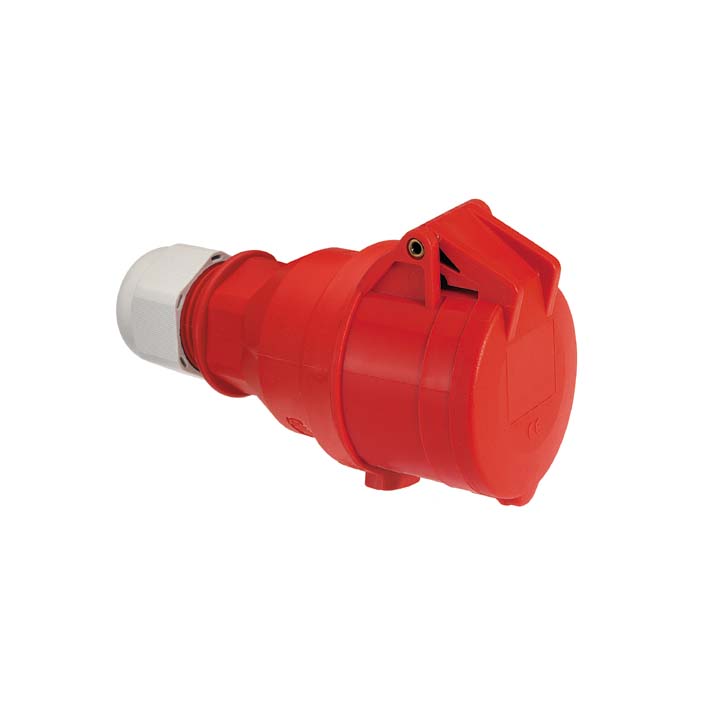

Connector Quick-Connect with Multi-Grip
16A / 32A
- 16 (6)
- 32 (5)
- 3 (2)
- 4 (5)
- 5 (4)
- 230V / Blue (6)
- 400V / Red (4)
- 500V / Black (1)
| E-number | Article no. | Description | Rated current (A) | Number of poles | Voltage / Color code | Cable entries mm | Pcs/pack |
| 2421710 | 3126 | 216-6 | 16 | 3 | 230V / Blue | 8 - 18 | 10 |
| - | 3129 | 316-9 | 16 | 4 | 230V / Blue | 8 - 18 | 10 |
| - | 3135 | 416-9 | 16 | 5 | 230V / Blue | 8 - 18 | 10 |
| 2421711 | 3130 | 316-6 | 16 | 4 | 400V / Red | 8 - 18 | 10 |
| 2421712 | 3136 | 416-6 | 16 | 5 | 400V / Red | 8 - 18 | 10 |
| 2418345 | 31959 | 316-7 | 16 | 4 | 500V / Black | 8 - 18 | 1 |
| 2421714 | 3138 | 232-6 | 32 | 3 | 230V / Blue | 11 - 23,5 | 10 |
| - | 3141 | 332-9 | 32 | 4 | 230V / Blue | 11 - 23,5 | 10 |
| - | 3147 | 432-9 | 32 | 5 | 230V / Blue | 11 - 23,5 | 10 |
| 2421715 | 3142 | 332-6 | 32 | 4 | 400V / Red | 11 - 23,5 | 10 |
| 2421716 | 3148 | 432-6 | 32 | 5 | 400V / Red | 11 - 23,5 | 10 |
Material Enclosure:
Polyamide PA6
Material Terminals:
Brass
Connection capacity:
16A max. 2,5mm²
32A max. 6mm²
32A max. 6mm²
Ingress protection:
IP44
Halogen-Free:
Yes
