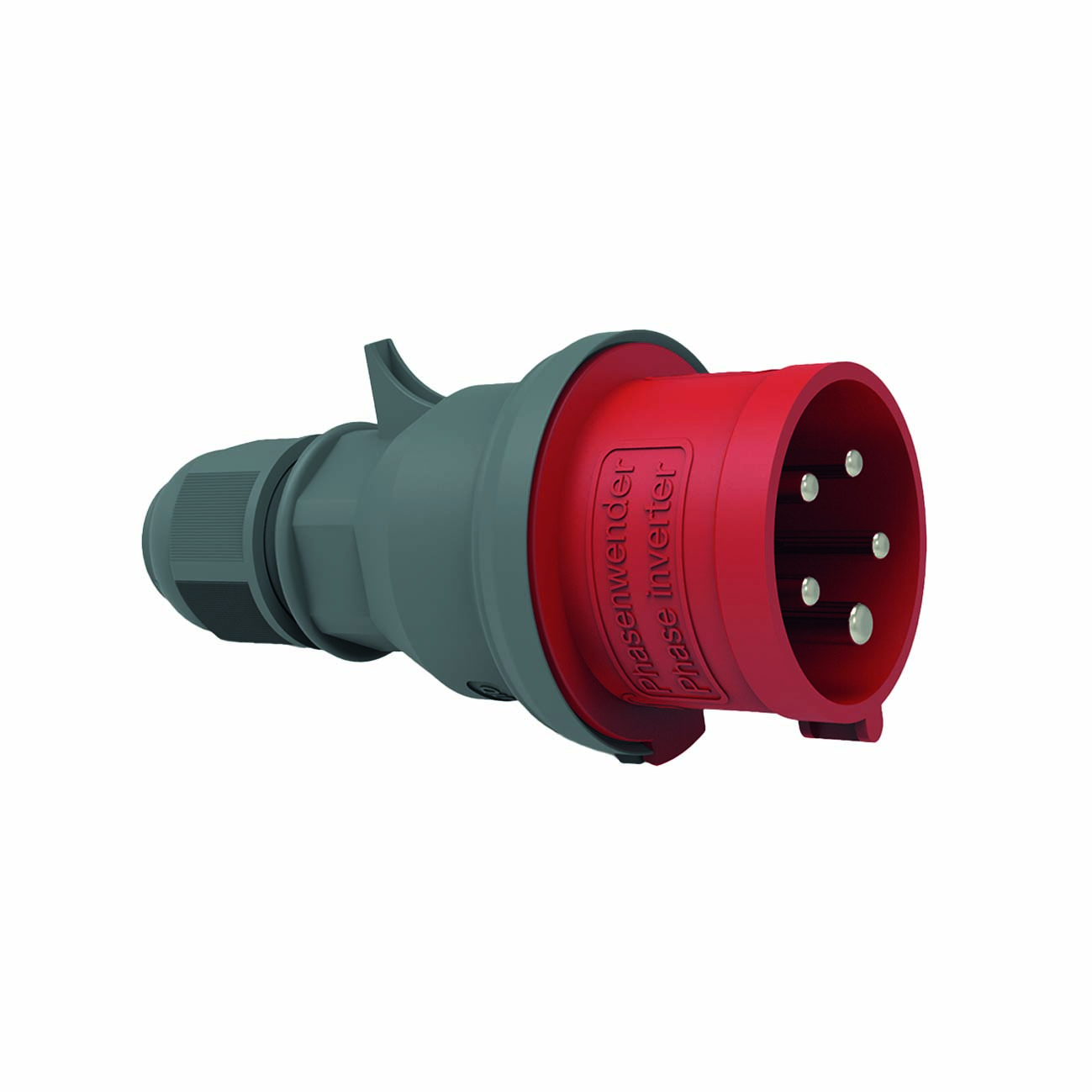

Phase inverter Quick-Connect med Multi-Grip
16A / 32A
- 16 (4)
- 32 (4)
- 4 (4)
- 5 (4)
- 230V / Blue (4)
- 400V / Red (4)
| E-number | Article no. | Description | Rated current (A) | Number of poles | Voltage / Color code | Cable entries mm | Pcs/pack |
| - | 22052 | 316-9 | 16 | 4 | 230V / Blue | 8 - 18 | 10 |
| - | 224 | 416-9 | 16 | 5 | 230V / Blue | 8 - 18 | 10 |
| - | 22054 | 332-9 | 32 | 4 | 230V / Blue | 11 - 23,5 | 10 |
| - | 226 | 432-9 | 32 | 5 | 230V / Blue | 11 - 23,5 | 10 |
| - | 22053 | 316-6 | 16 | 4 | 400V / Red | 8 - 18 | 10 |
| 2421648 | 225 | 416-6 | 16 | 5 | 400V / Red | 8 - 18 | 10 |
| - | 22055 | 332-6 | 32 | 4 | 400V / Red | 11 - 23,5 | 10 |
| 2421649 | 227 | 432-6 | 32 | 5 | 400V / Red | 11 - 23,5 | 10 |
Material Enclosure:
Polyamide PA6
Material Terminals:
Brass
Connection capacity:
16A max. 2,5mm²
32A max. 6mm²
32A max. 6mm²
Ingress protection:
IP44
Halogen-Free:
Yes
