Plug with screw terminals and Multi-Grip IP67
63A / 125A / INNOLINQ-design
- Plug INNOLINQ-design with screw terminals and Multi-Grip
- IP67
- Screwless enclosure connection
- Simultanious cable gland and seal
- 63 (3)
- 125 (8)
- 3 (3)
- 4 (4)
- 5 (4)
- 230V / Blue (4)
- 400V / Red (5)
- 500V / Black (2)
| E-number | Article no. | Description | Rated current (A) | Number of poles | Voltage / Color code | Cable entries mm | Pcs/pack |

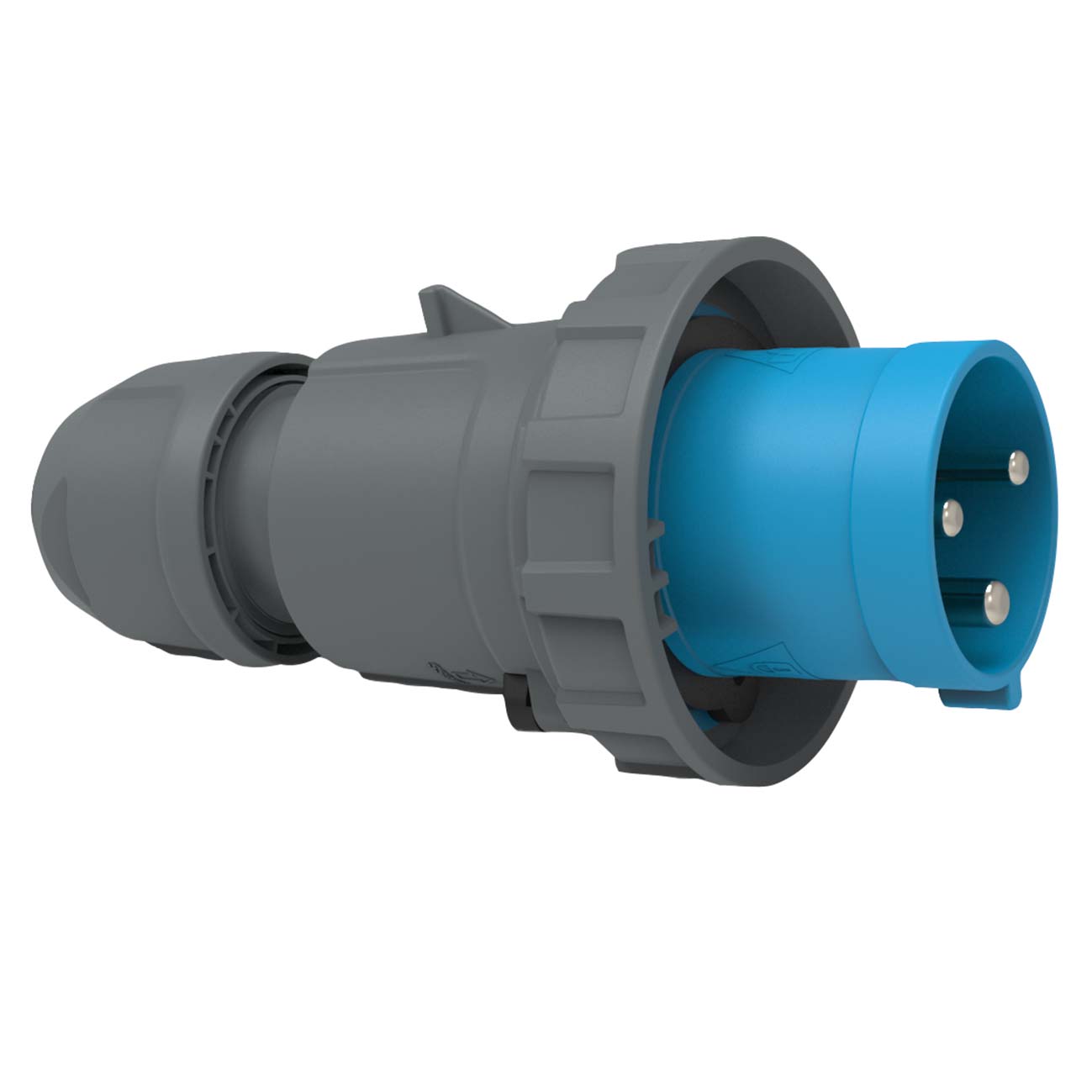

| - | 2181 | 263-6 | 63 | 3 | 230V / Blue | 16 - 36 | 5 |
| - | 2185 | 363-6 | 63 | 4 | 400V / Red | 16 - 36 | 5 |
| 2421781 | 2189 | 463-6 | 63 | 5 | 400V / Red | 16 - 36 | 5 |
| - | 2191 | 2125-6 | 125 | 3 | 230V / Blue | 26 - 50 | 5 |
| - | 2194 | 3125-9 | 125 | 4 | 230V / Blue | 26 - 50 | 5 |
| - | 2198 | 125 | 5 | 230V / Blue | 26 - 50 | 5 | |
| - | 2192 | 2125-9 | 125 | 3 | 400V / Red | 26 - 50 | 5 |

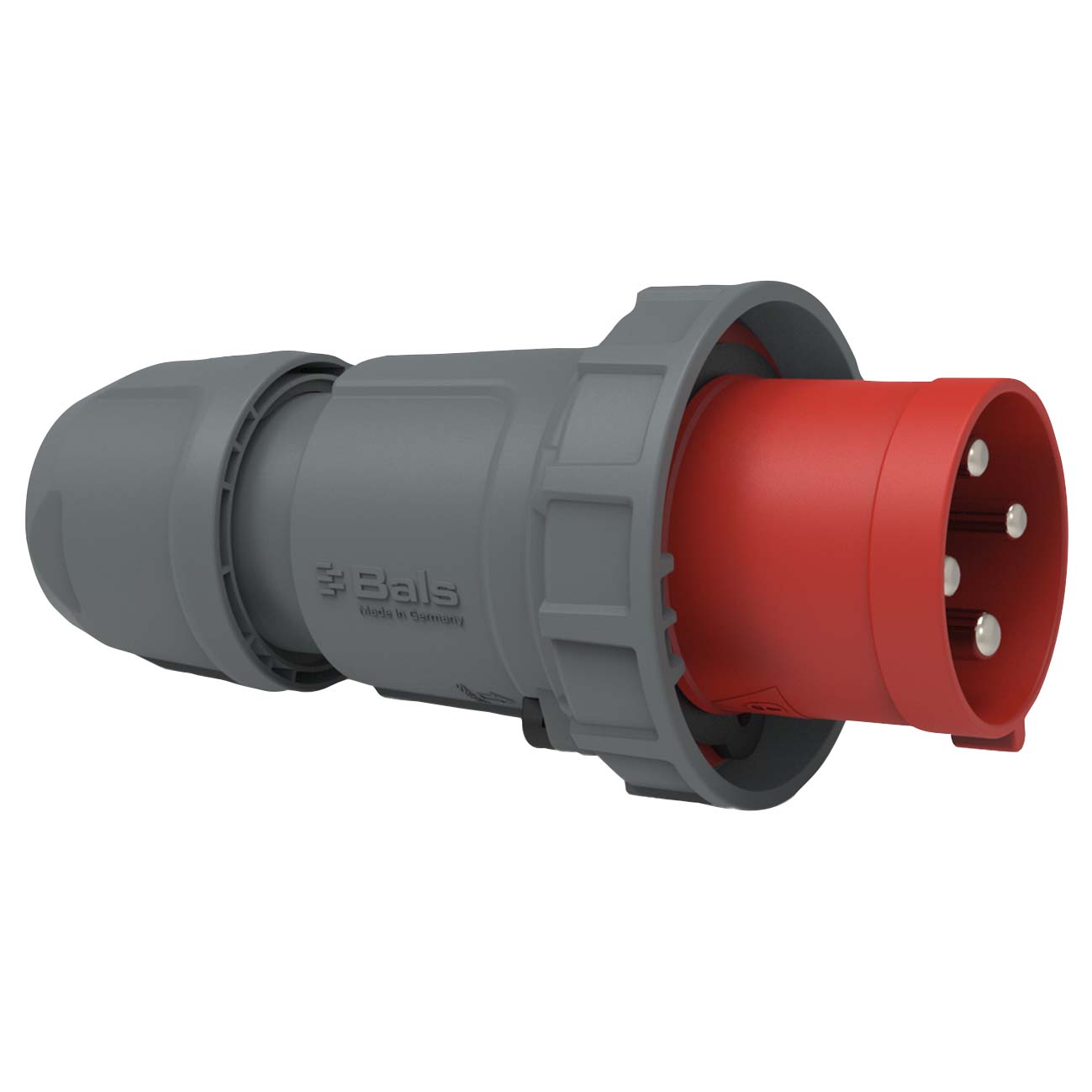

| 2421783 | 2195 | 3125-6 | 125 | 4 | 400V / Red | 26 - 50 | 5 |

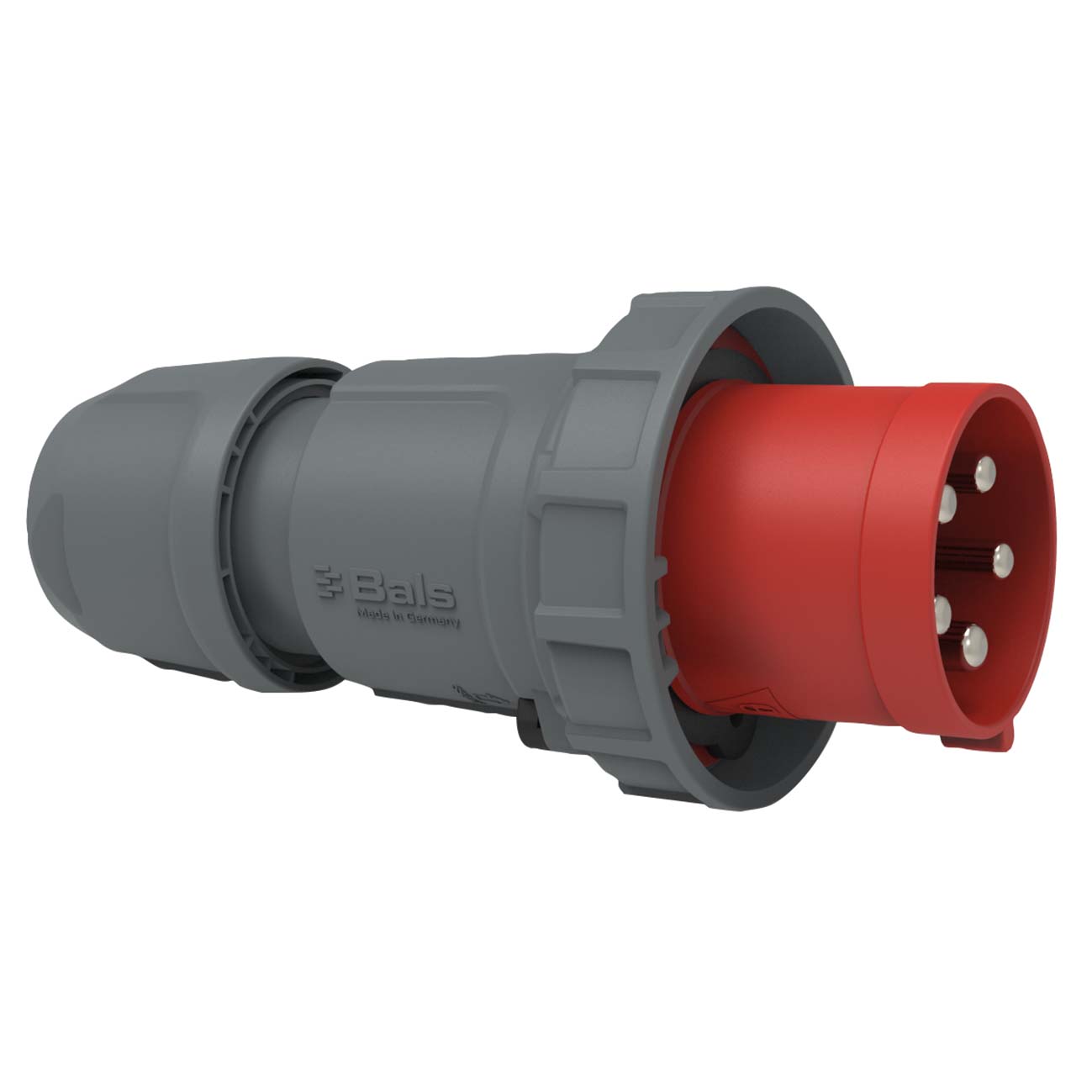

| 2421785 | 2199 | 4125-6 | 125 | 5 | 400V / Red | 26 - 50 | 5 |
| - | 2196 | 3125-7 | 125 | 4 | 500V / Black | 26 - 50 | 5 |
| - | 21555 | 4125-7 | 125 | 5 | 500V / Black | 26 - 50 | 5 |
Material Enclosure:
Polyamide
Material Terminals:
Brass nickel plated
Connection capacity:
63A: 6 - 16mm²
125A: 16 - 50mm²
125A: 16 - 50mm²
Ingress protection:
IP67
