Plug Quick-Connect with Multi-Grip
16A / 32A
- 16 (6)
- 32 (7)
- 3 (2)
- 4 (6)
- 5 (5)
- 230V / Blue (6)
- 400V / Red (5)
- 500V / Black (2)
| E-number | Article no. | Description | Rated current (A) | Number of poles | Voltage / Color code | Cable entries mm | Pcs/pack |
| 2421700 | 2126 | 216-6 | 16 | 3 | 230V / Blue | 8 - 18 | 10 |
| - | 2129 | 316-9 | 16 | 4 | 230V / Blue | 8 - 18 | 10 |
| - | 2135 | 416-9 | 16 | 5 | 230V / Blue | 8 - 18 | 10 |
| 2421703 | 2138 | 232-6 | 32 | 3 | 230V / Blue | 11 - 23,5 | 10 |
| - | 2141 | 332-9 | 32 | 4 | 230V / Blue | 11 - 23,5 | 10 |
| - | 2147 | 432-9 | 32 | 5 | 230V / Blue | 11 - 23,5 | 10 |
| 2421701 | 2130 | 316-6 | 16 | 4 | 400V / Red | 8 - 18 | 10 |

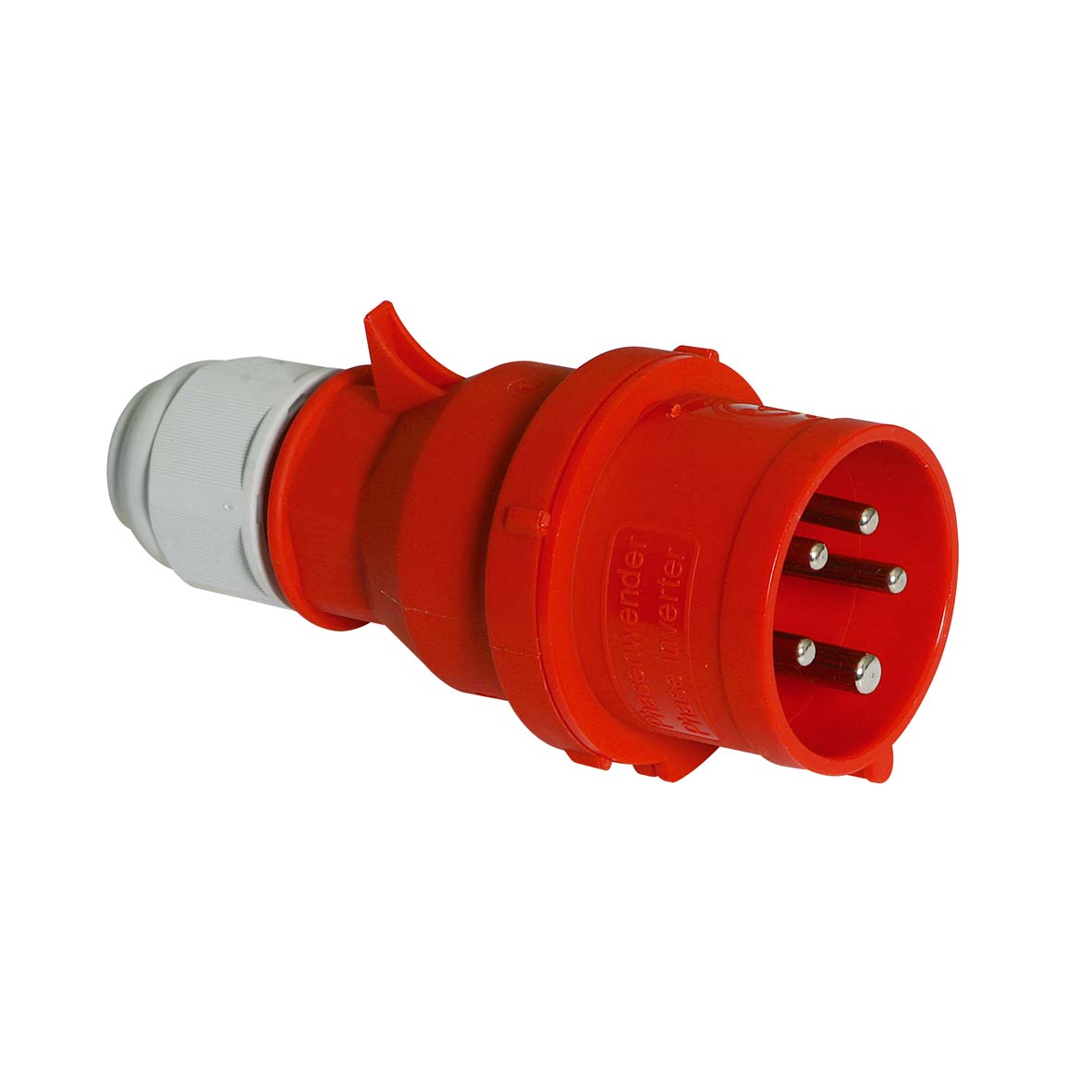

| 2421702 | 2136 | 416-6 | 16 | 5 | 400V / Red | 8 - 18 | 10 |
| 2421705 | 2142 | 332-6 | 32 | 4 | 400V / Red | 11 - 23,5 | 10 |
| 2421706 | 2148 | 432-6 | 32 | 5 | 400V / Red | 11 - 23,5 | 10 |
| 2418362 | 21241 | 432-6 | 32 | 5 | 400V / Red | 13 -27 | 10 |
| 2418343 | 21692 | 332-7 | 32 | 4 | 500V / Black | 11 - 23,5 | 10 |
| 2418361 | 21688 | 316-7 | 16 | 4 | 500V / Black | 8 - 18 | 10 |
Material Enclosure:
Polyamide PA6
Material Terminals:
Brass
Connection capacity:
16A max. 2,5mm²
32A max. 6mm²
32A max. 6mm²
Ingress protection:
IP44
Halogen-Free:
Yes
