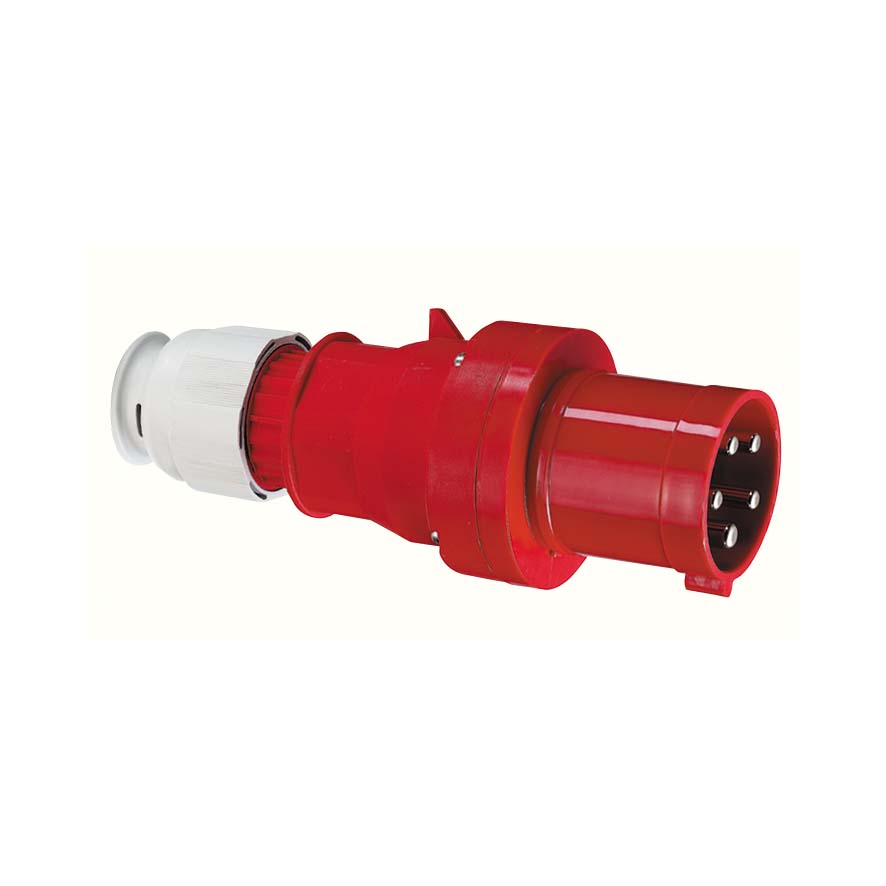

Plug with screw terminals Multi-Grip
16A / 32A
- 16 (6)
- 32 (6)
- 3 (4)
- 4 (4)
- 5 (4)
- 230V / Blue (6)
- 400V / Red (6)
| E-number | Article no. | Description | Rated current (A) | Number of poles | Voltage / Color code | Cable entries mm | Pcs/pack |
| 2421550 | 21001-TLS | 216-6 | 16 | 3 | 230V / Blue | 8 - 18 | 10 |
| 2421577 | 21004-TLS | 316-9 | 16 | 4 | 230V / Blue | 8 - 18 | 10 |
| - | 21010-TLS | 416-9 | 16 | 5 | 230V / Blue | 8 - 18 | 10 |
| 2421553 | 21013-TLS | 232-6 | 32 | 3 | 230V / Blue | 11 - 23,5 | 10 |
| 2421579 | 21016-TLS | 332-9 | 32 | 4 | 230V / Blue | 11 - 23,5 | 10 |
| - | 21022-TLS | 432-9 | 32 | 5 | 230V / Blue | 11 - 23,5 | 10 |
| - | 21002-TLS | 216-9 | 16 | 3 | 400V / Red | 8 - 18 | 10 |
| 2421551 | 21005-TLS | 316-6 | 16 | 4 | 400V / Red | 8 - 18 | 10 |
| 2421552 | 203-TLS | 416-6 | 16 | 5 | 400V / Red | 8 - 18 | 10 |
| - | 21014-TLS | 232-9 | 32 | 3 | 400V / Red | 11 - 23,5 | 10 |
| 2421554 | 21017-TLS | 332-6 | 32 | 4 | 400V / Red | 11 - 23,5 | 10 |
| 2421555 | 204-TLS | 432-6 | 32 | 5 | 400V / Red | 11 - 23,5 | 10 |
Material Enclosure:
Polyamide PA6.6
Material Terminals:
Brass nickel plated
Connection capacity:
16A max. 2,5mm²
32A max. 6mm²
63A max. 16mm²
32A max. 6mm²
63A max. 16mm²
Ingress protection:
IP44
Halogen-Free:
Yes
