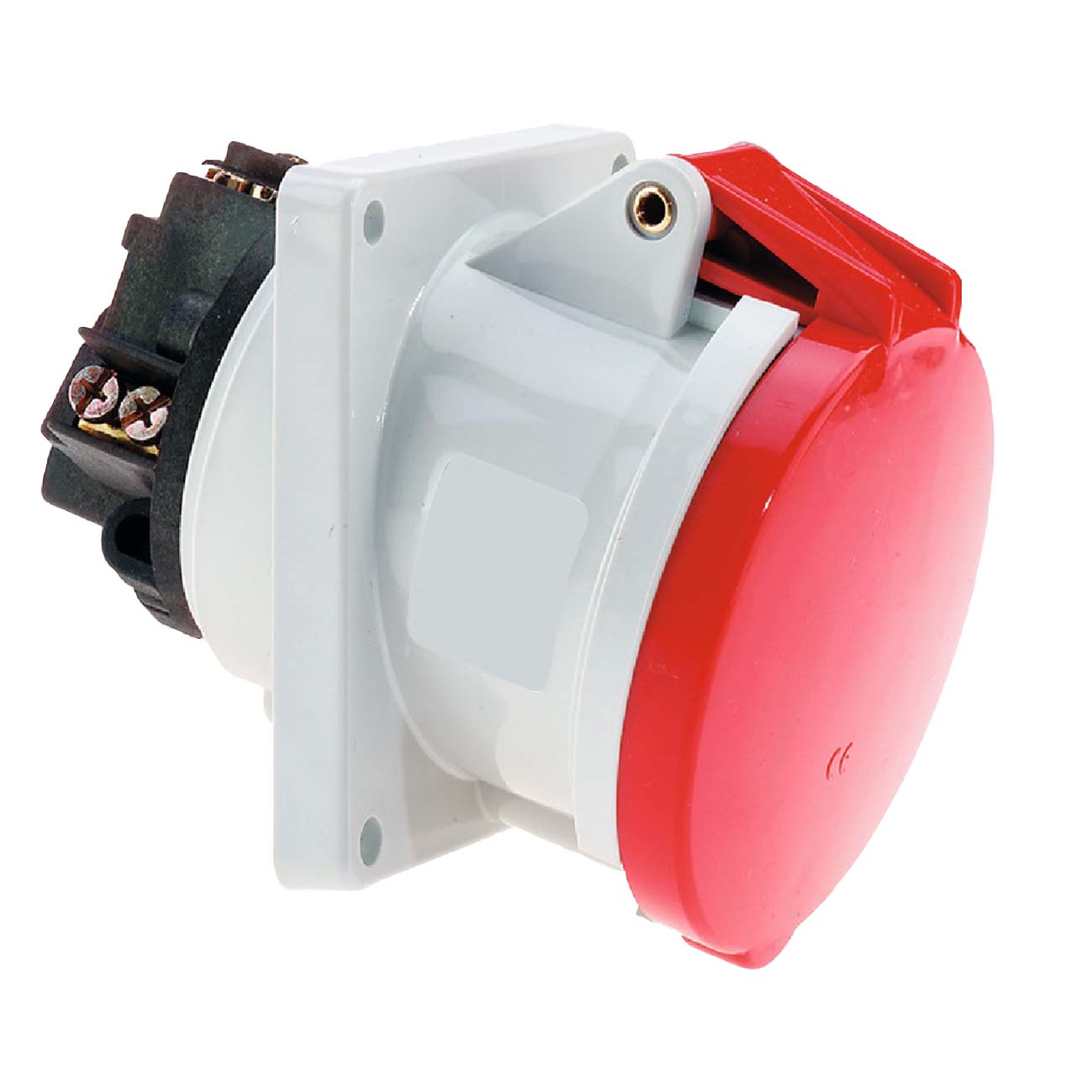

Angled Panel Mounting Socket Outlet with screw terminals
- Flange 114x114mm
- 63 (3)
- 3 (1)
- 4 (1)
- 5 (1)
- 230V / Blue (1)
- 400V / Red (2)
| E-number | Article no. | Description | Rated current (A) | Number of poles | Voltage / Color code | Fixing holes mm | Pcs/pack |
| - | 12135 | 263-6 | 63 | 3 | 230V / Blue | 90 x 90 | 5 |
| 2421622 | 1201 | 363-6 | 63 | 4 | 400V / Red | 90 x 90 | 5 |
| 2421623 | 1202 | 463-6 | 63 | 5 | 400V / Red | 90 x 90 | 5 |
Material Enclosure:
Polyamide
Material Terminals:
Brass nickel plated
Ingress protection:
IP44
