Panel mounting socket outlet angled
16A / 32A
- Flange 68x62mm (12732), 74x62mm (12773), 100x92mm (12778, 12784, 12779, 12730, 12789, 12794, 12800, 12790, 12795, 12801)
- 16 (6)
- 32 (6)
- 3 (4)
- 4 (4)
- 5 (4)
- 230V / Blue (6)
- 400V / Red (6)
| E-number | Article no. | Description | Rated current (A) | Number of poles | Voltage / Color code | Fixing holes mm | Pcs/pack |
| 2421773 | 12732 | 216-6 | 16 | 3 | 230V / Blue | 47 x 47 | 10 |
| - | 12778 | 316-9 | 16 | 4 | 230V / Blue | 85 x 77 | 10 |
| - | 12784 | 416-9 | 16 | 5 | 230V / Blue | 85 x 77 | 10 |
| - | 12773 | 216-9 | 16 | 3 | 400V / Red | 60 x 52 | 10 |

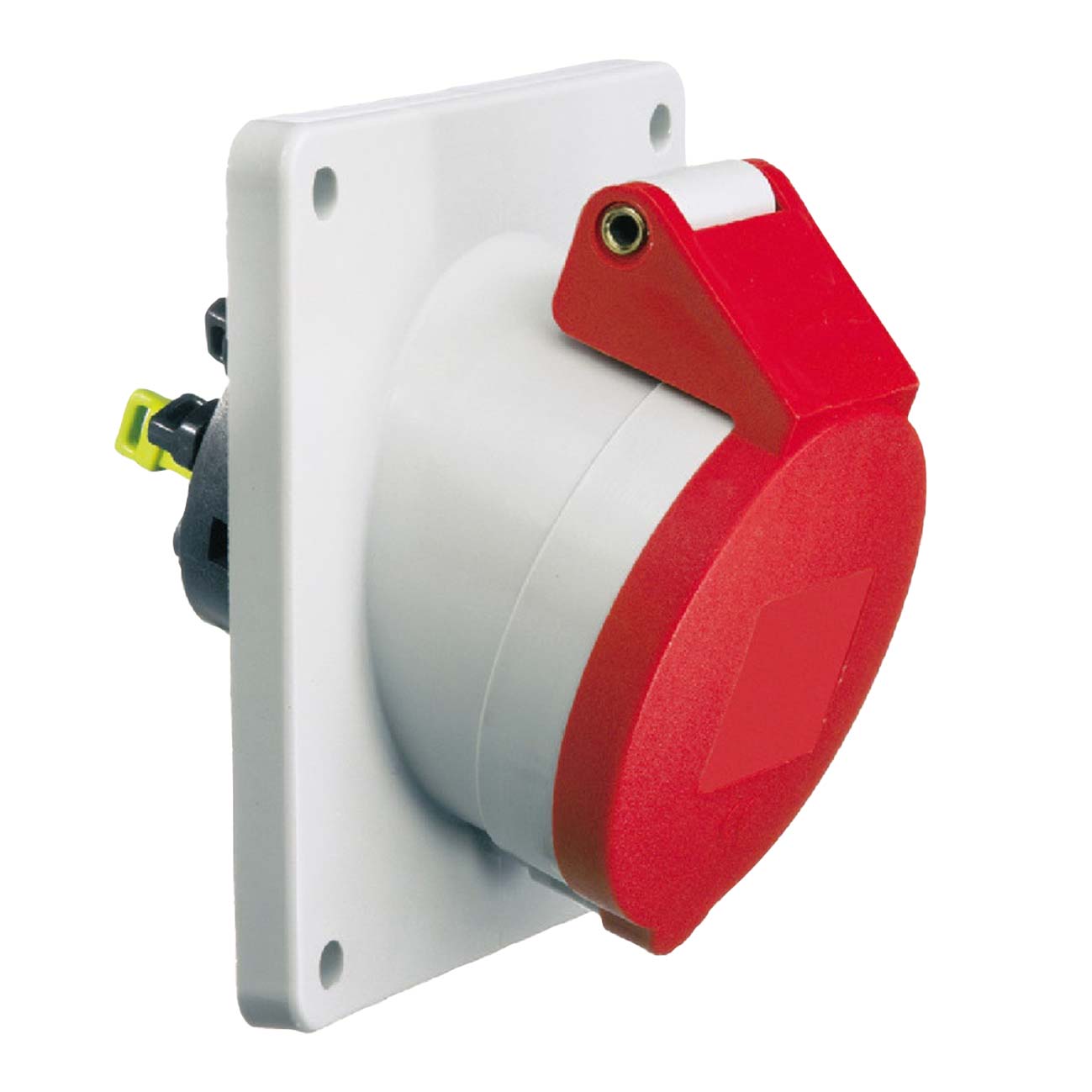

| 2421747 | 12779 | 316-6 | 16 | 4 | 400V / Red | 85 x 77 | 10 |
| 2421748 | 12730 | 416-6 | 16 | 5 | 400V / Red | 85 x 77 | 10 |

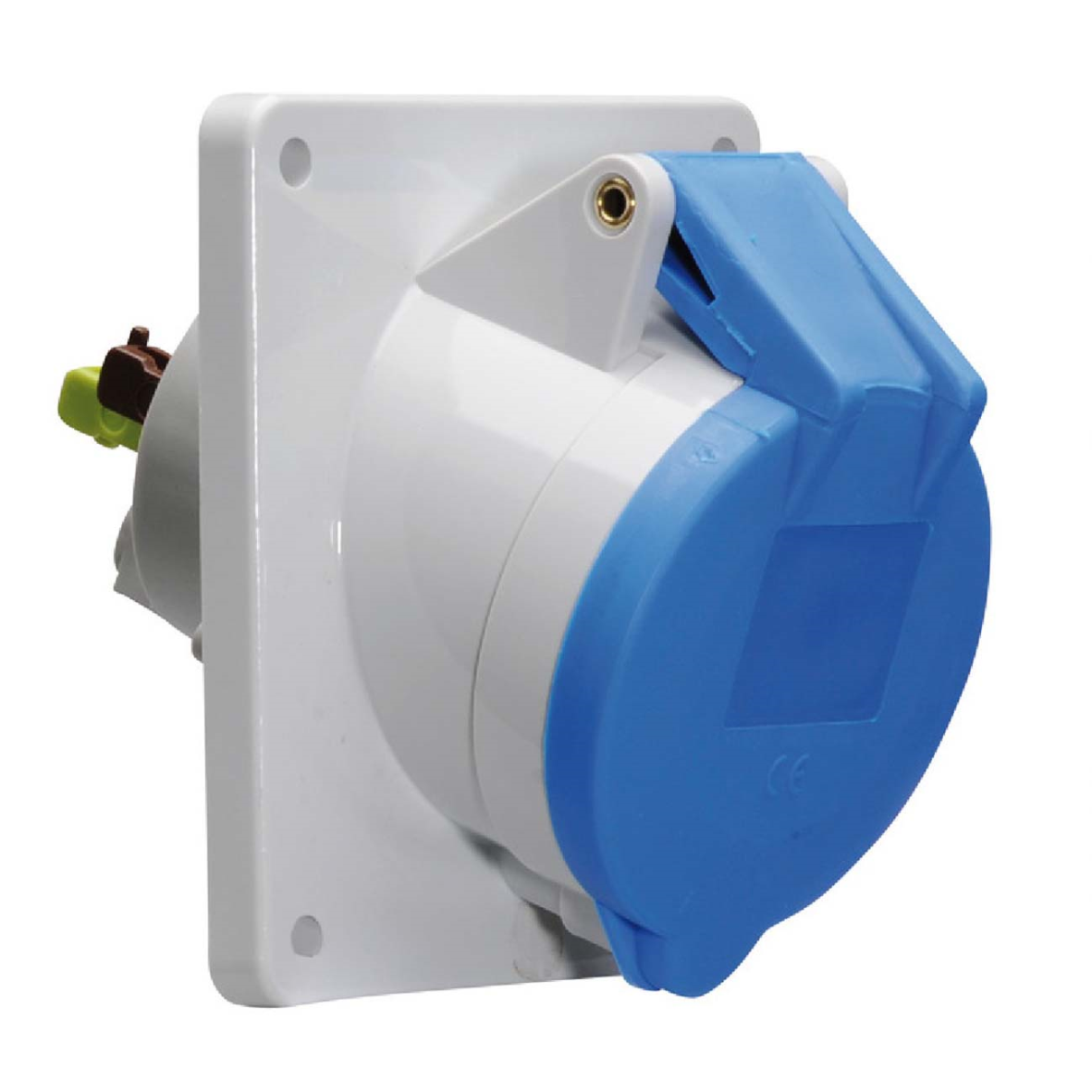

| 2421749 | 12789 | 232-6 | 32 | 3 | 230V / Blue | 85 x 77 | 10 |
| - | 12794 | 332-9 | 32 | 4 | 230V / Blue | 85 x 77 | 10 |
| - | 12800 | 432-9 | 32 | 5 | 230V / Blue | 85 x 77 | 10 |
| - | 12790 | 232-9 | 32 | 3 | 400V / Red | 85 x 77 | 10 |
| 2421750 | 12795 | 332-6 | 32 | 4 | 400V / Red | 85 x 77 | 10 |
| 2421751 | 12801 | 432-6 | 32 | 5 | 400V / Red | 85 x 77 | 10 |
Material Enclosure:
Polyamide
Material Terminals:
Brass
Ingress protection:
IP44
