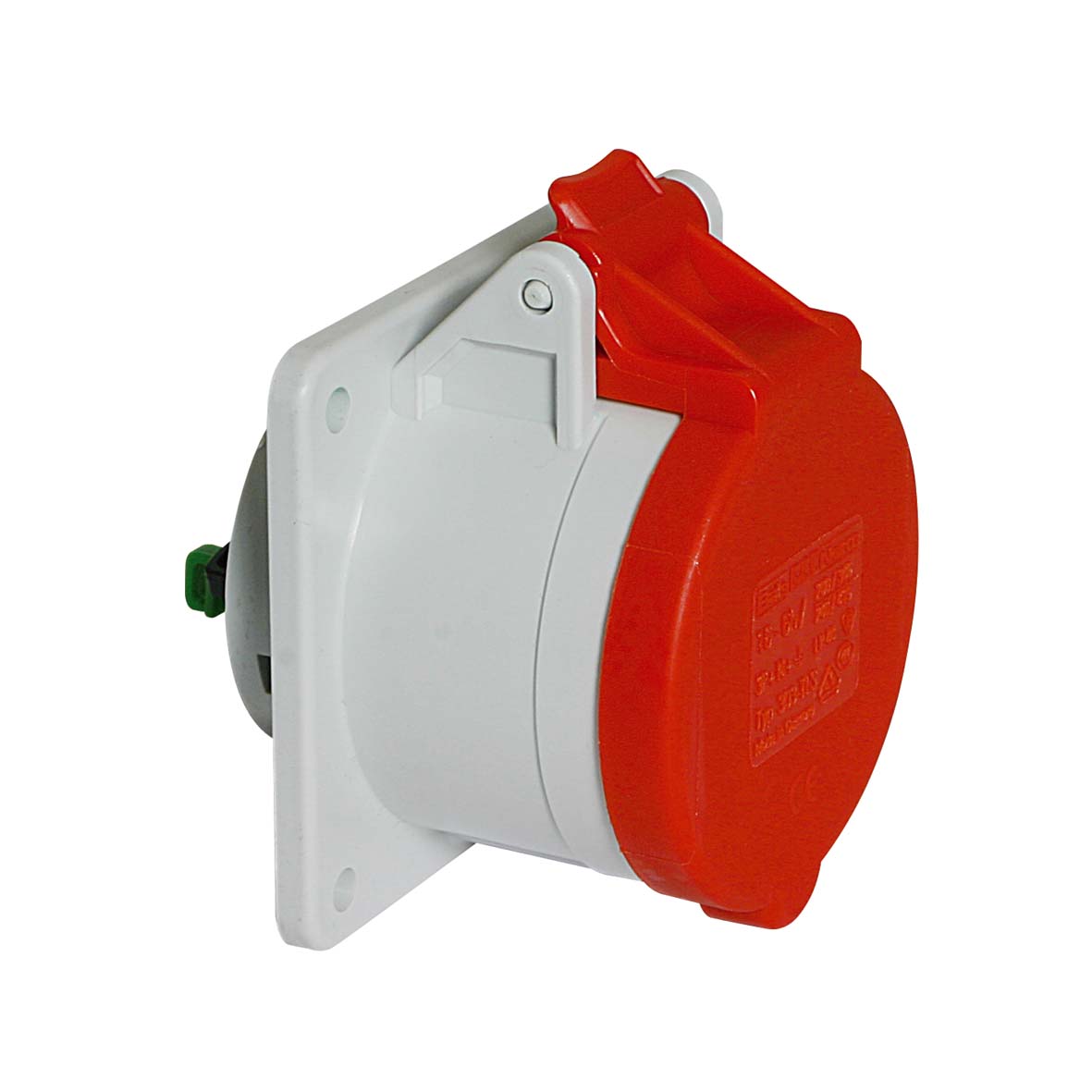

Straight Panel Mounting Socket Outlet Quick-Connect
16A / 32A
- Flange 75x75mm
- 16 (4)
- 32 (5)
- 4 (4)
- 5 (2)
- 3 (3)
- 230V / Blue (5)
- 400V / Red (4)
| E-number | Article no. | Description | Rated current (A) | Number of poles | Voltage / Color code | Fixing holes mm | Pcs/pack |
| - | 13692 | 316-9 | 16 | 4 | 230V / Blue | 60 x 60 | 10 |
| - | 13698 | 416-9 | 16 | 5 | 230V / Blue | 60 x 60 | 10 |
| - | 13687 | 216-9 | 16 | 3 | 400V / Red | 60 x 60 | 10 |
| 2421741 | 13693 | 316-6 | 16 | 4 | 400V / Red | 60 x 60 | 10 |
| 2421743 | 13703 | 232-6 | 32 | 3 | 230V / Blue | 60 x 60 | 10 |
| - | 13709 | 332-9 | 32 | 4 | 230V / Blue | 60 x 60 | 10 |
| - | 13715 | 432-9 | 32 | 5 | 230V / Blue | 60 x 60 | 10 |
| - | 13704 | 232-9 | 32 | 3 | 400V / Red | 60 x 60 | 10 |
| 2421744 | 13710 | 332-6 | 32 | 4 | 400V / Red | 60 x 60 | 10 |
Material Enclosure:
Polyamide PA6
Material Terminals:
Brass
Connection capacity:
16A max. 4mm²
32A max. 10mm²
32A max. 10mm²
Ingress protection:
IP44
Halogen-Free:
Yes
