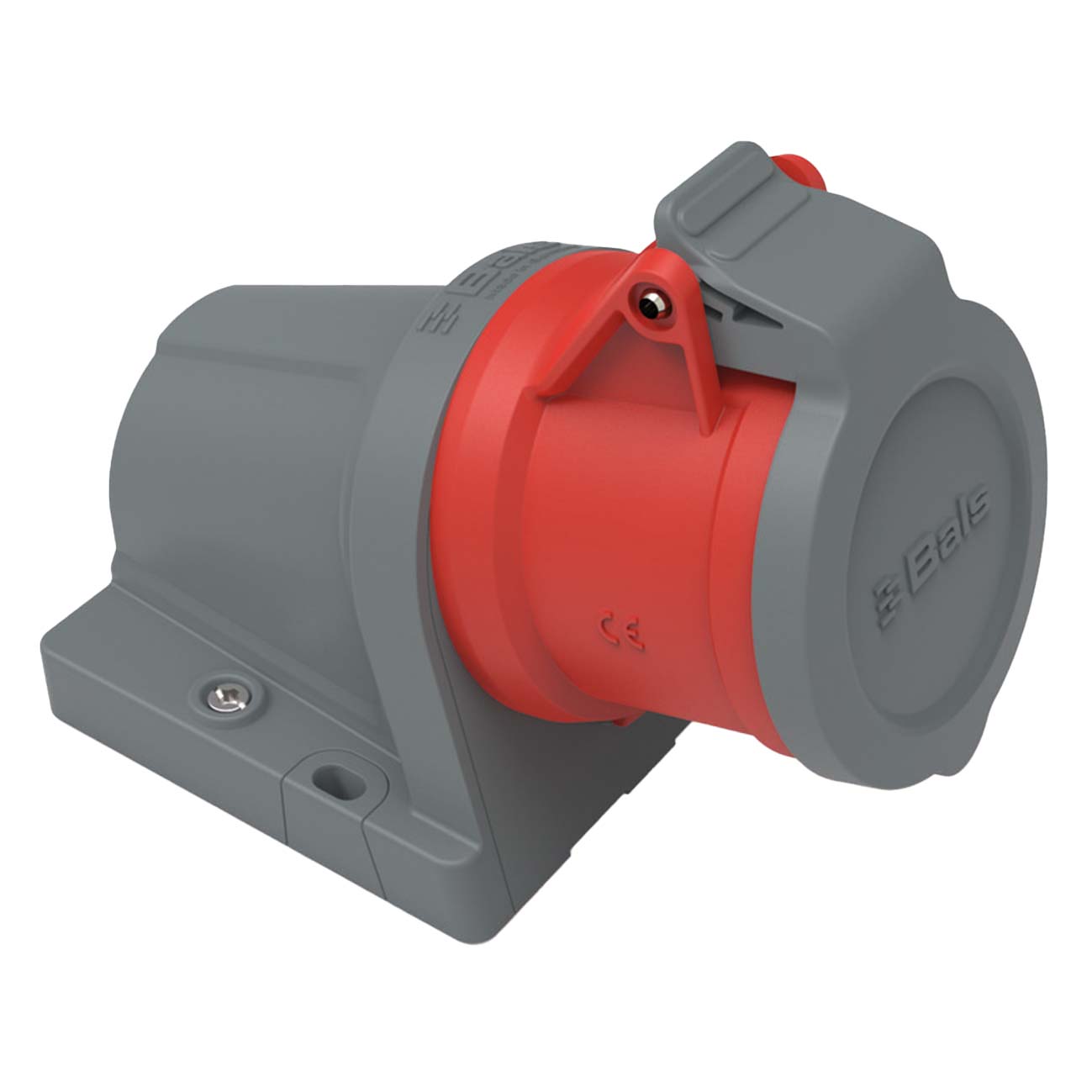

Surface Mounting Socket Outlet Quick-Connect
16A / 32A / Lead-Free - INNOLINQ
- 16 (1)
- 32 (1)
- 5 (2)
- 400V / Red (2)
| E-number | Article no. | Description | Rated current (A) | Number of poles | Voltage / Color code | Cable entries mm | Pcs/pack |
| 2418307 | 110624 | 416-6 | 16 | 5 | 400V / Red | M32 | 10 |
| 2418308 | 110635 | 432-6 | 32 | 5 | 400V / Red | M32 | 10 |
Material Enclosure:
Polyamide
Material Terminals:
Brass
Connection capacity:
16A max. 4mm²
32A max. 10mm²
32A max. 10mm²
Ingress protection:
IP44
