Surface Mounting Socket Outlet Quick-Connect
16A / 32A
- 16 (5)
- 32 (5)
- 3 (2)
- 4 (6)
- 5 (2)
- 230V / Blue (4)
- 400V / Red (4)
- 500V / Black (2)
| E-number | Article no. | Description | Rated current (A) | Number of poles | Voltage / Color code | Cable entries mm | Pcs/pack |
| 2421720 | 11895 | 216-6 | 16 | 3 | 230V / Blue | M20 | 10 |
| - | 11910 | 316-9 | 16 | 4 | 230V / Blue | M25 | 10 |
| 2421721 | 11905 | 316-6 | 16 | 4 | 400V / Red | M25 | 10 |

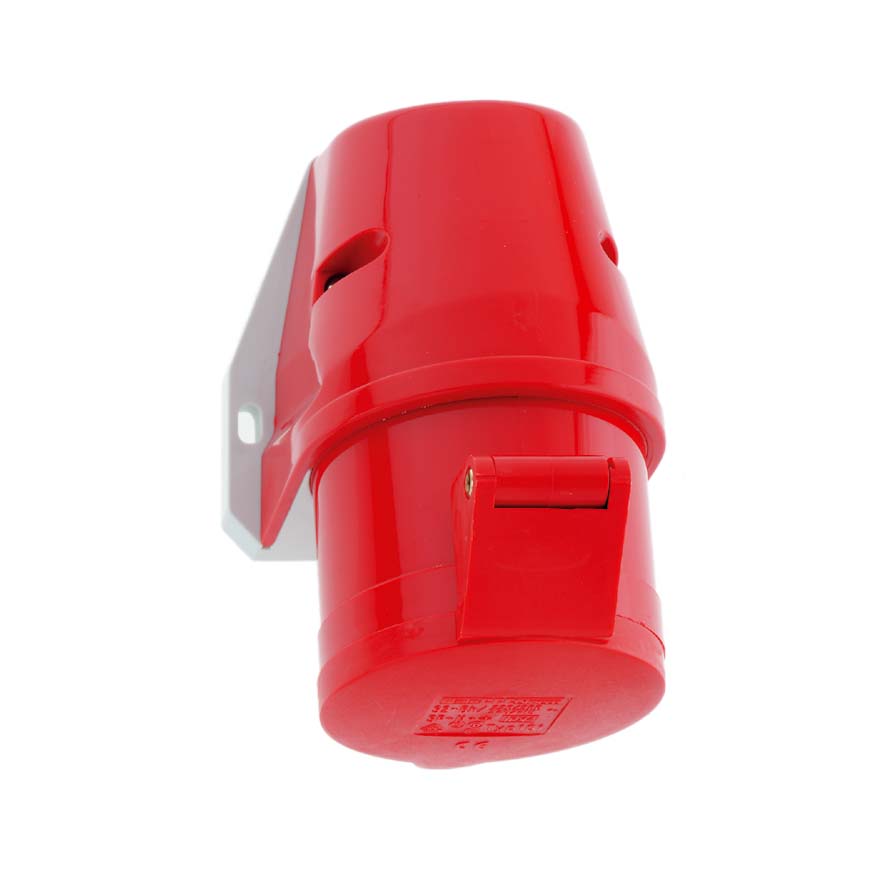

| 2421722 | 112001 | 416-6 | 16 | 5 | 400V / Red | M25 | 10 |
| 2418347 | 11914 | 16 | 4 | 500V / Black | M25 | 10 | |
| 2421723 | 11919 | 232-6 | 32 | 3 | 230V / Blue | M25 | 10 |
| - | 11921 | 332-9 | 32 | 4 | 230V / Blue | M25 | 10 |
| 2421724 | 11922 | 332-6 | 32 | 4 | 400V / Red | M25 | 10 |
| 2421725 | 112002 | 432-6 | 32 | 5 | 400V / Red | M25 | 10 |
| 2418348 | 11924 | 332-7 | 32 | 4 | 500V / Black | M25 | 10 |
Material Enclosure:
Polyamide PA6
Material Terminals:
Brass
Connection capacity:
16A max. 4mm²
32A max. 10mm²
32A max. 10mm²
Ingress protection:
IP44
Halogen-Free:
Yes
