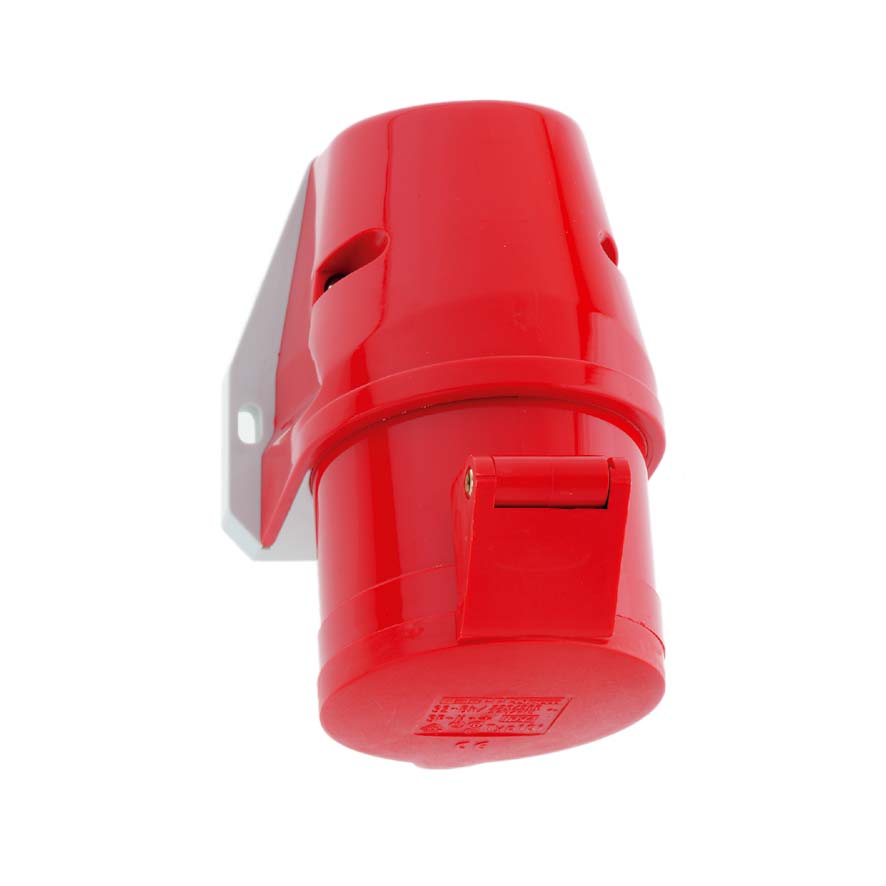

Surface Mounting Socket Outlet with screw terminals
16A / 32A
- Screw terminals
- One open cable entry at the top and one closed at the bottom
- Protection degree IP44
- 131x87x98mm (Height xWidth x Depth)
- 16 (2)
- 32 (1)
- 5 (3)
- 230V / Blue (2)
- 400V / Red (1)
| E-number | Article no. | Description | Rated current (A) | Number of poles | Voltage / Color code | Cable entries mm | Pcs/pack |
| - | 11725 | 416-9 | 16 | 5 | 230V / Blue | M25 | 10 |
| 2421571 | 100 | 416-6 | 16 | 5 | 400V / Red | M25 | 10 |
| - | 11738 | 432-9 | 32 | 5 | 230V / Blue | M25 | 10 |
Material Enclosure:
Polyamide PA6
Material Terminals:
Brass
Connection capacity:
16A max. 4mm²
32A max. 10mm²
32A max. 10mm²
Ingress protection:
IP44
Halogen-Free:
Yes
