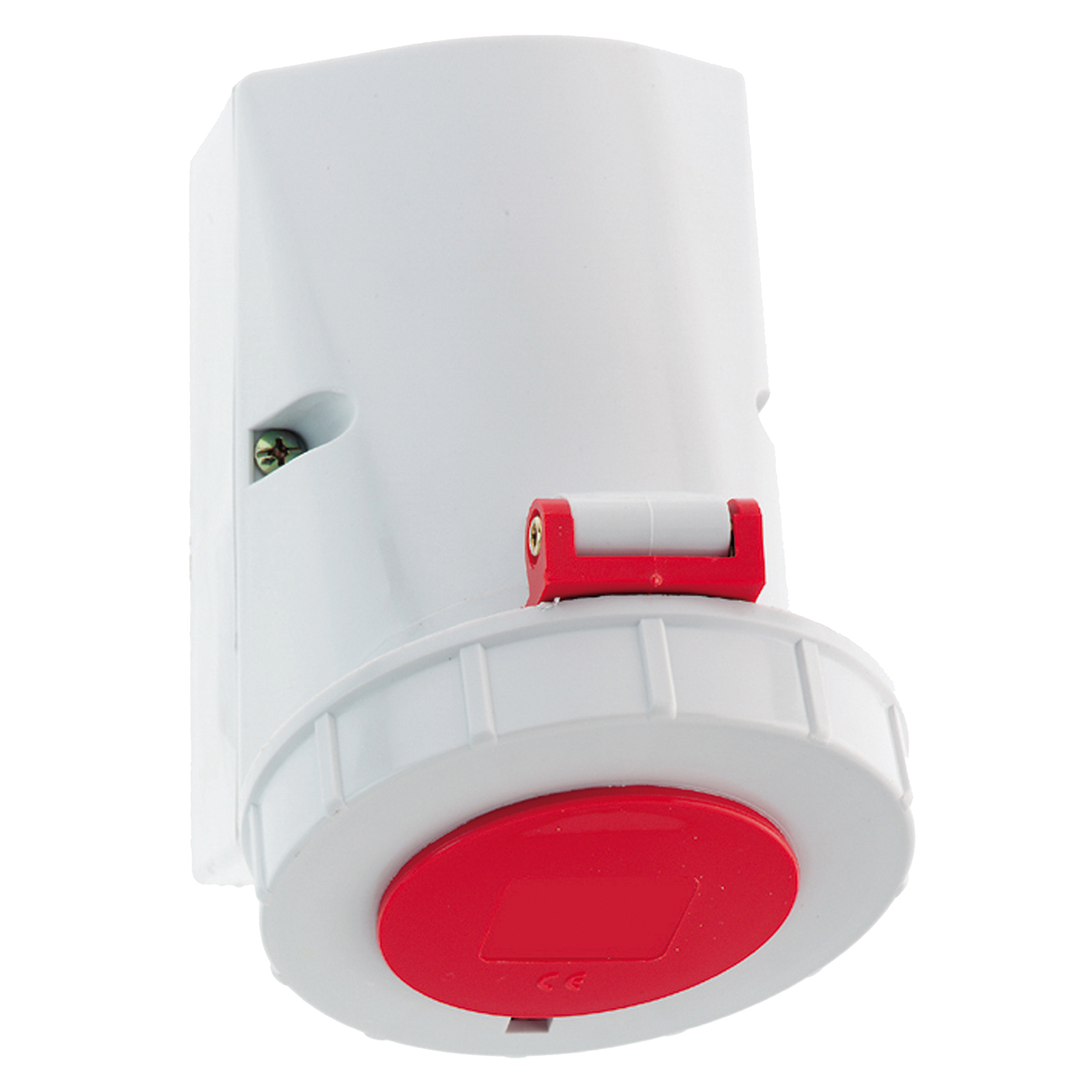

Wall mounting socket outlet IP67 with screw terminals
16A / 32A
- 16 (3)
- 32 (2)
- 3 (2)
- 4 (1)
- 5 (2)
- 230V / Blue (2)
- 400V / Red (3)
| E-number | Article no. | Description | Rated current (A) | Number of poles | Voltage / Color code | Cable entries mm | Width mm | Depth mm | Height mm | Pcs/pack |
| 2418349 | 1133 | 216-6 | 16 | 3 | 230V / Blue | M20 | 64 | 103 | 115 | 10 |
| - | 1137 | 316-6 | 16 | 4 | 400V / Red | M20 | 75 | 110 | 130 | 10 |
| 2418350 | 1143 | 16 | 5 | 400V / Red | M20 | 75 | 115 | 130 | 10 | |
| - | 1145 | 232-6 | 32 | 3 | 230V / Blue | M25 | 83 | 129 | 160 | 10 |
| 2418351 | 1155 | 32 | 5 | 400V / Red | M25 | 83 | 135 | 160 | 10 |
Material Enclosure:
Polyamide
Material Terminals:
Brass
Ingress protection:
IP67
