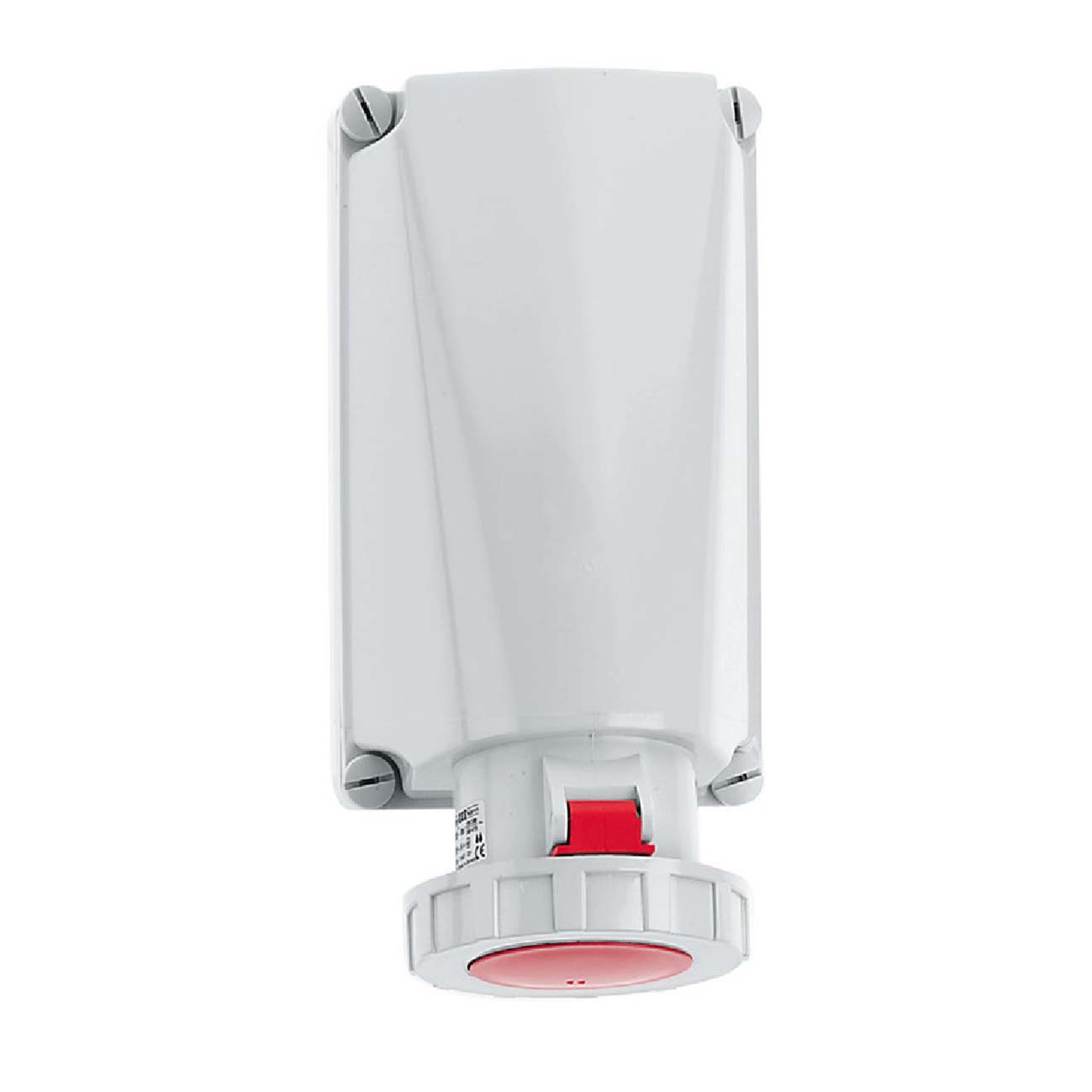

Wall mounting socket outlet IP67 with screw terminals
125A. Housing 260x160mm
- 125 (3)
- 3 (1)
- 4 (1)
- 5 (1)
- 230V / Blue (1)
- 400V / Red (2)
| E-number | Article no. | Description | Rated current (A) | Number of poles | Voltage / Color code | Cable entries mm | Width mm | Depth mm | Height mm | Pcs/pack |
| - | 11437 | 2125-6 | 125 | 3 | 230V / Blue | M50 | 160 | 168 | 330 | 1 |
| - | 11441 | 3125-6 | 125 | 4 | 400V / Red | M50 | 160 | 168 | 330 | 1 |
| 2421576 | 11447 | 4125-6 | 125 | 5 | 400V / Red | M50 | 160 | 168 | 330 | 1 |
Material Enclosure:
Polycarbonate
Material Terminals:
Brass nickel plated
Ingress protection:
IP67
