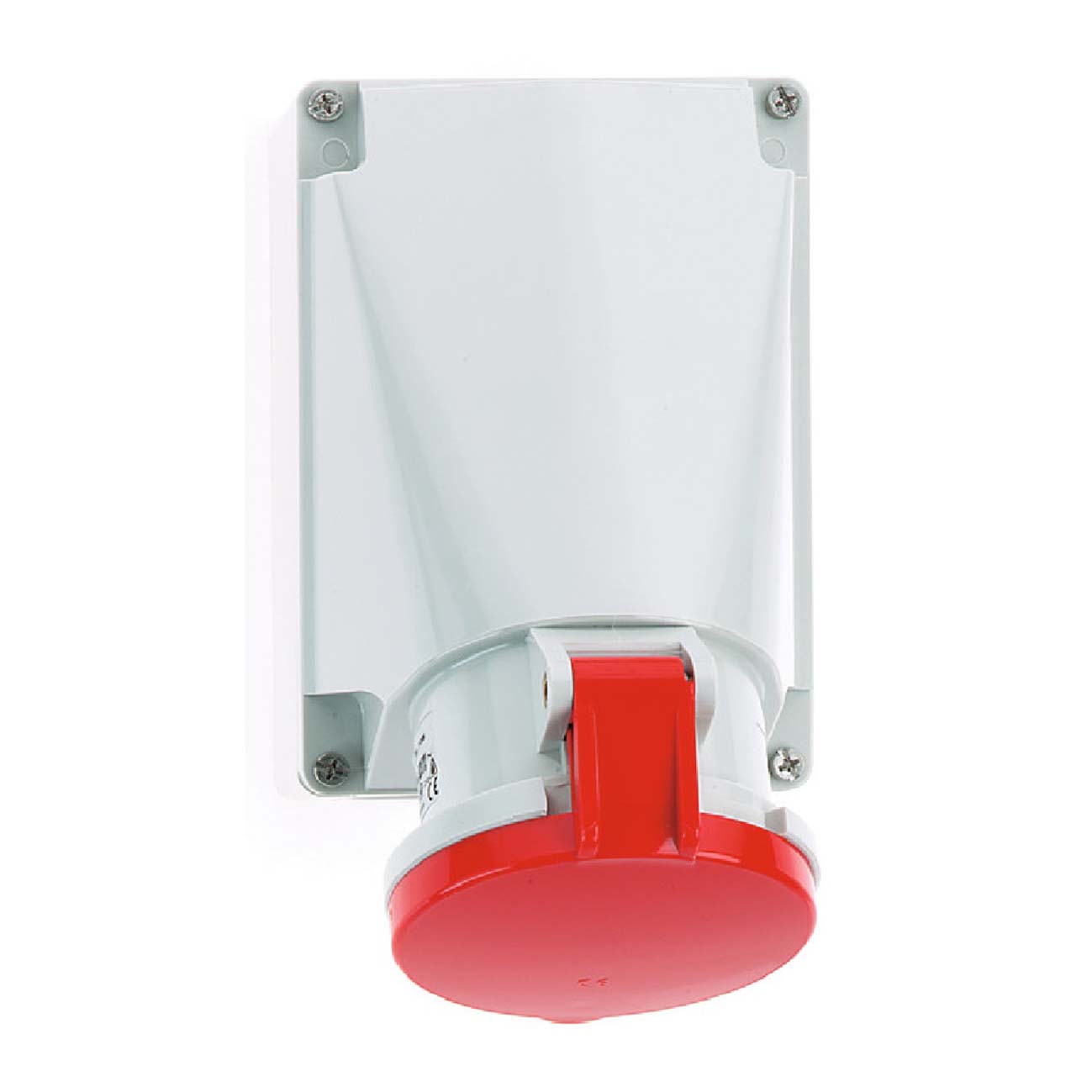

Wall Mounting Socket Outlet with screw terminals
63A / Housing 170x118mm
- Screw terminals
- One open cable entry (M40) at the top and two closed (M32) at the bottom
- Protection degree IP44
- 63 (3)
- 3 (1)
- 4 (1)
- 5 (1)
- 230V / Blue (1)
- 400V / Red (2)
| E-number | Article no. | Rated current (A) | Number of poles | Voltage / Color code | Cable entries mm | Width mm | Depth mm | Height mm | Pcs/pack | Description |
| - | 1104 | 63 | 3 | 230V / Blue | M32 / M40 | 118 | 168 | 223 | 5 | |
| 2421574 | 1127 | 363-6 | 63 | 4 | 400V / Red | M32 / M40 | 118 | 168 | 223 | 5 |
| 2421575 | 1124 | 463-6 | 63 | 5 | 400V / Red | M32 / M40 | 118 | 168 | 223 | 5 |
Material Enclosure:
Polycarbonate
Material Terminals:
Brass nickel plated
Ingress protection:
IP44
