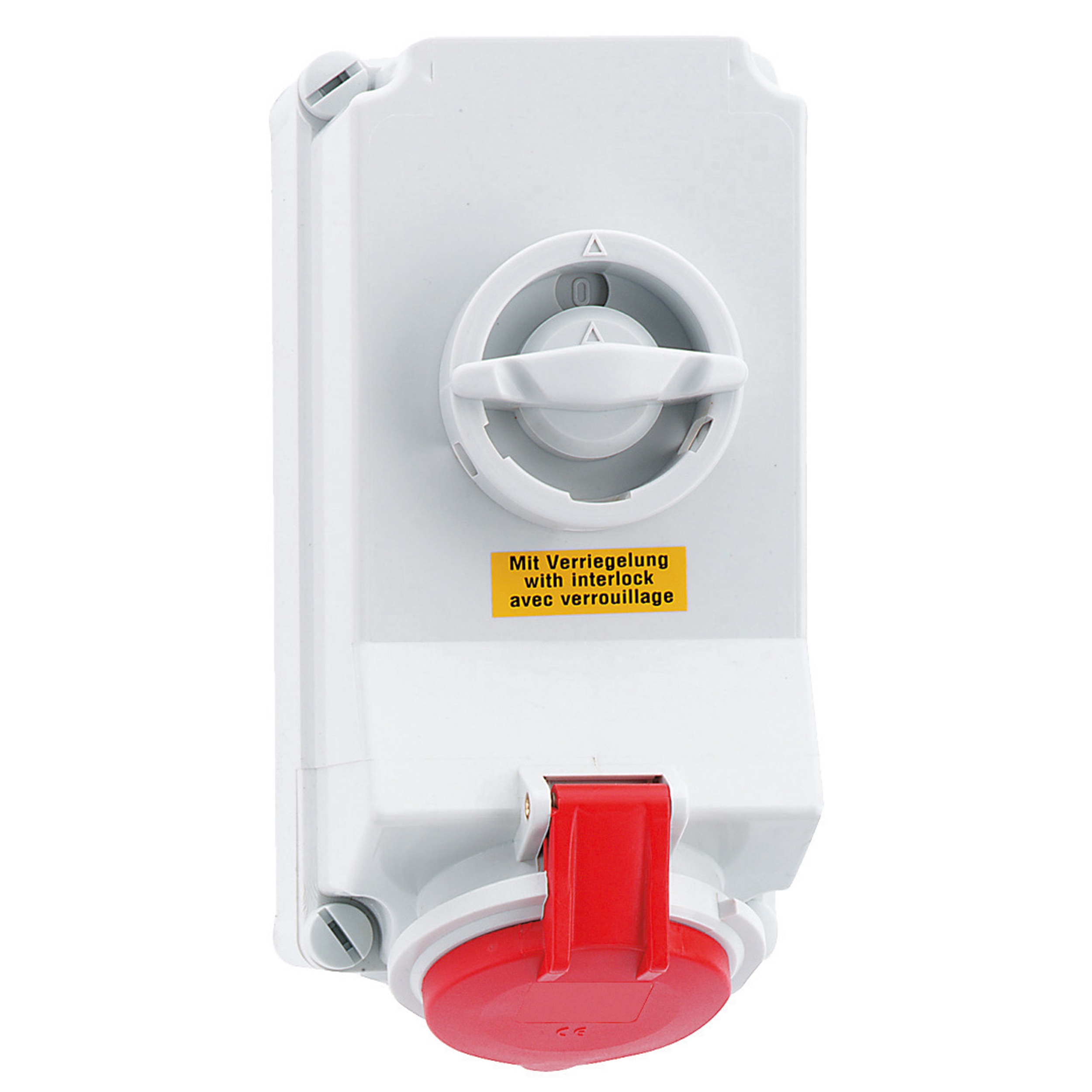

Wall mounting socket outlet switched and interlocked
16A / 32A / Housing 225x118mm
- 16 (3)
- 32 (3)
- 4 (4)
- 5 (2)
- 400V / Red (4)
- 500V / Black (2)
| E-number | Article no. | Description | Rated current (A) | Number of poles | Voltage / Color code | Cable entries mm | Width mm | Depth mm | Height mm | Pcs/pack |
| - | 16038 | 316-6 | 16 | 4 | 400V / Red | M25 | 118 | 126 | 242 | 1 |
| - | 16039 | 416-6 | 16 | 5 | 400V / Red | M25 | 118 | 134 | 242 | 1 |
| - | 16064 | 316-7 | 16 | 4 | 500V / Black | M25 | 118 | 126 | 242 | 1 |
| 2421633 | 16042 | 332-6 | 32 | 4 | 400V / Red | M25 | 118 | 137 | 251 | 1 |
| 2418346 | 16043 | 432-6 | 32 | 5 | 400V / Red | M25 | 118 | 144 | 251 | 1 |
| - | 16066 | 332-7 | 32 | 4 | 500V / Black | M25 | 118 | 137 | 251 | 1 |
Material Enclosure:
Polycarbonate
Material Terminals:
Brass nickel plated
Ingress protection:
IP44
