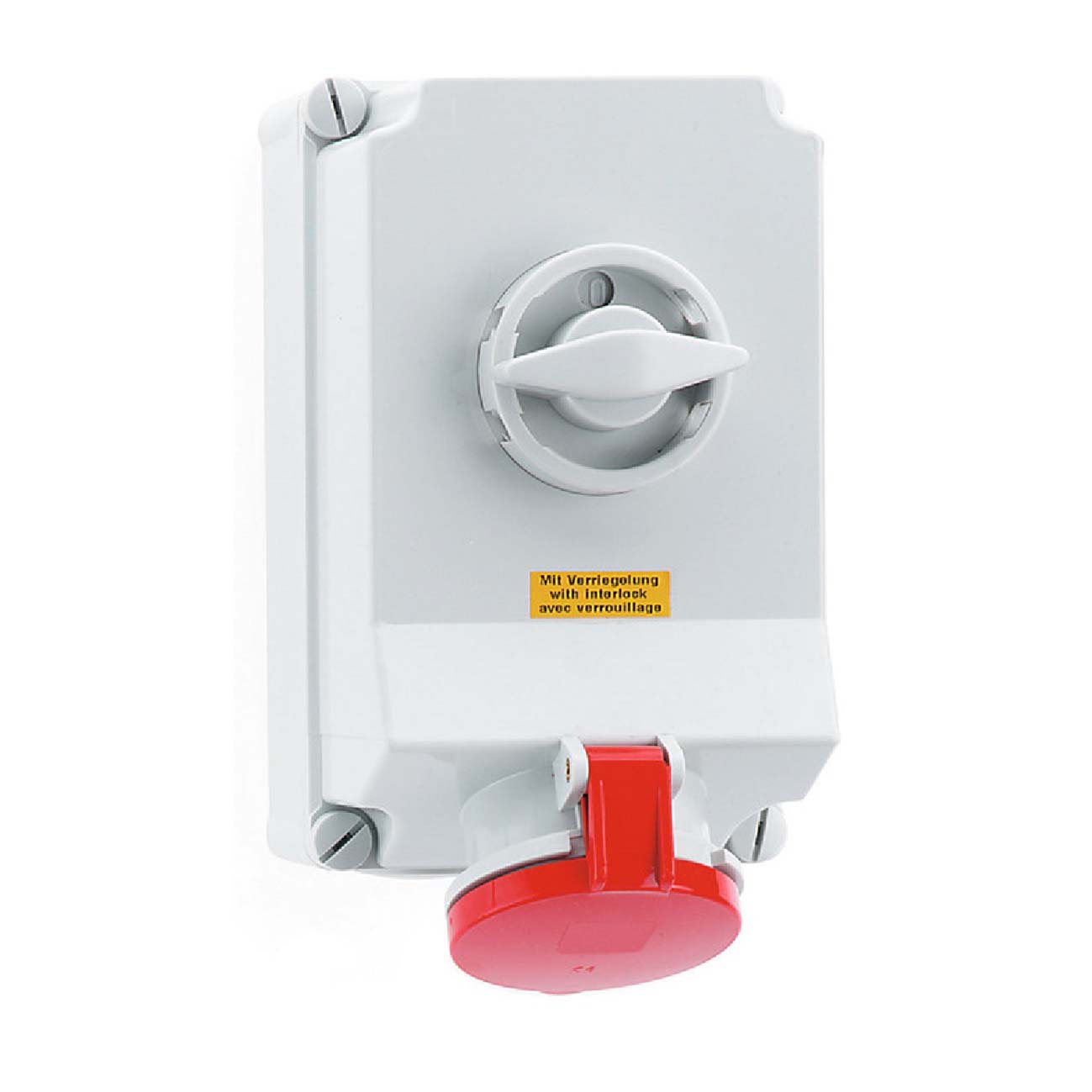

Wall mounting socket outlet switched and interlocked
63A / Housing 260x160mm
- 63 (3)
- 3 (1)
- 4 (1)
- 5 (1)
- 230V / Blue (1)
- 400V / Red (2)
| E-number | Article no. | Description | Rated current (A) | Number of poles | Voltage / Color code | Cable entries mm | Width mm | Depth mm | Height mm | Pcs/pack |
| - | 16956 | 263-6 | 63 | 3 | 230V / Blue | M32 / M40 | 160 | 184 | 302 | 1 |
| 2421634 | 16605 | 363-6 | 63 | 4 | 400V / Red | M32 / M40 | 160 | 184 | 302 | 1 |
| 2421635 | 16603 | 463-6 | 63 | 5 | 400V / Red | M32 / M40 | 160 | 184 | 302 | 1 |
Material Enclosure:
Polycarbonate
Material Terminals:
Brass nickel plated
Ingress protection:
IP44
