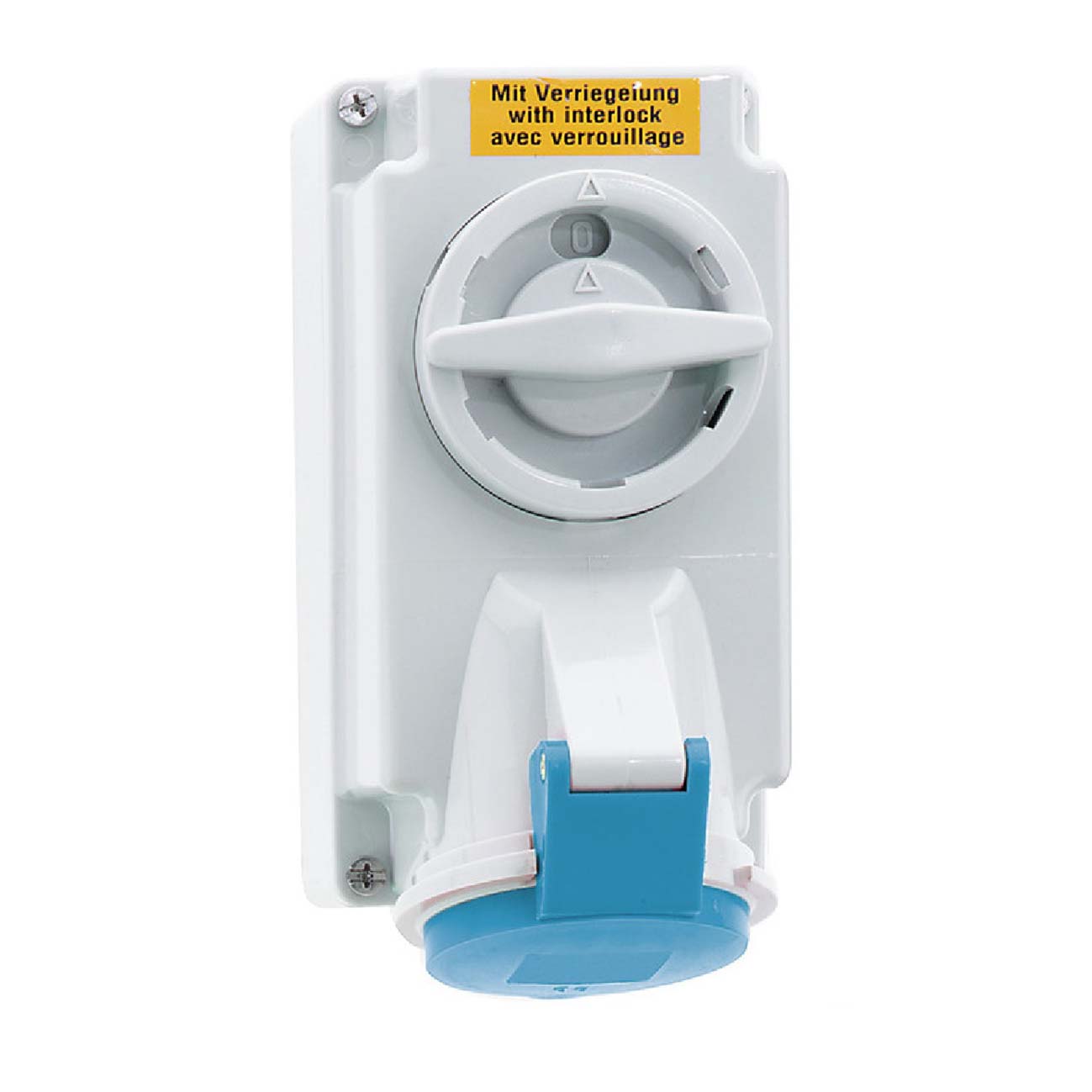

Wall mounting socket outlet switched and interlocked
16A / Housing 170x90mm
- 16 (3)
- 3 (1)
- 4 (1)
- 5 (1)
- 230V / Blue (1)
- 400V / Red (2)
| E-number | Article no. | Description | Rated current (A) | Number of poles | Voltage / Color code | Cable entries mm | Width mm | Depth mm | Height mm | Pcs/pack |
| 2421630 | 1619 | 216-6 | 16 | 3 | 230V / Blue | M20 / M25 | 90 | 108 | 189 | 1 |
| 2421631 | 1610 | 316-6 | 16 | 4 | 400V / Red | M20 / M25 | 90 | 114 | 189 | 1 |
| 2421632 | 1611 | 416-6 | 16 | 5 | 400V / Red | M20 / M25 | 90 | 121 | 190 | 1 |
Material Enclosure:
Polycarbonate
Material Terminals:
Brass nickel plated
Ingress protection:
IP44
