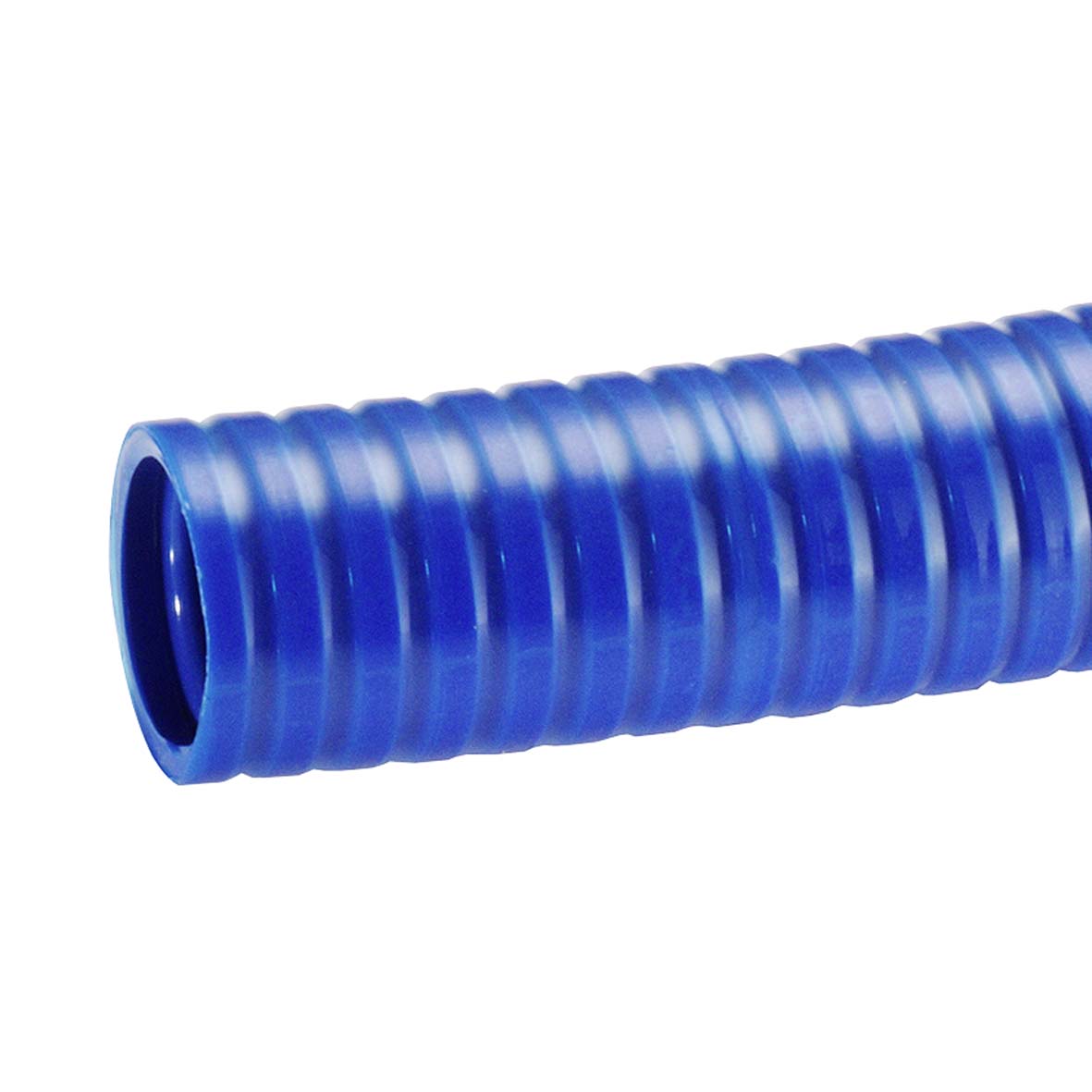

Conduit JFBD - Blue
Conduits for the food and beverage industry
The requirements for production equipment used in the food industry are particularly stringent.
The JFBD conduit offers assured protection not only for cables in the food processing sector but wherever there are stricter requirements for cleanability.
The JFBD conduit meets the FDA‘s CFR 21 / EU 10/2011 standards (up to 65°C).
Flexible, easy to clean and has high resistance to cleaning agents has been confirmed by the award of an ECOLAB certificate.

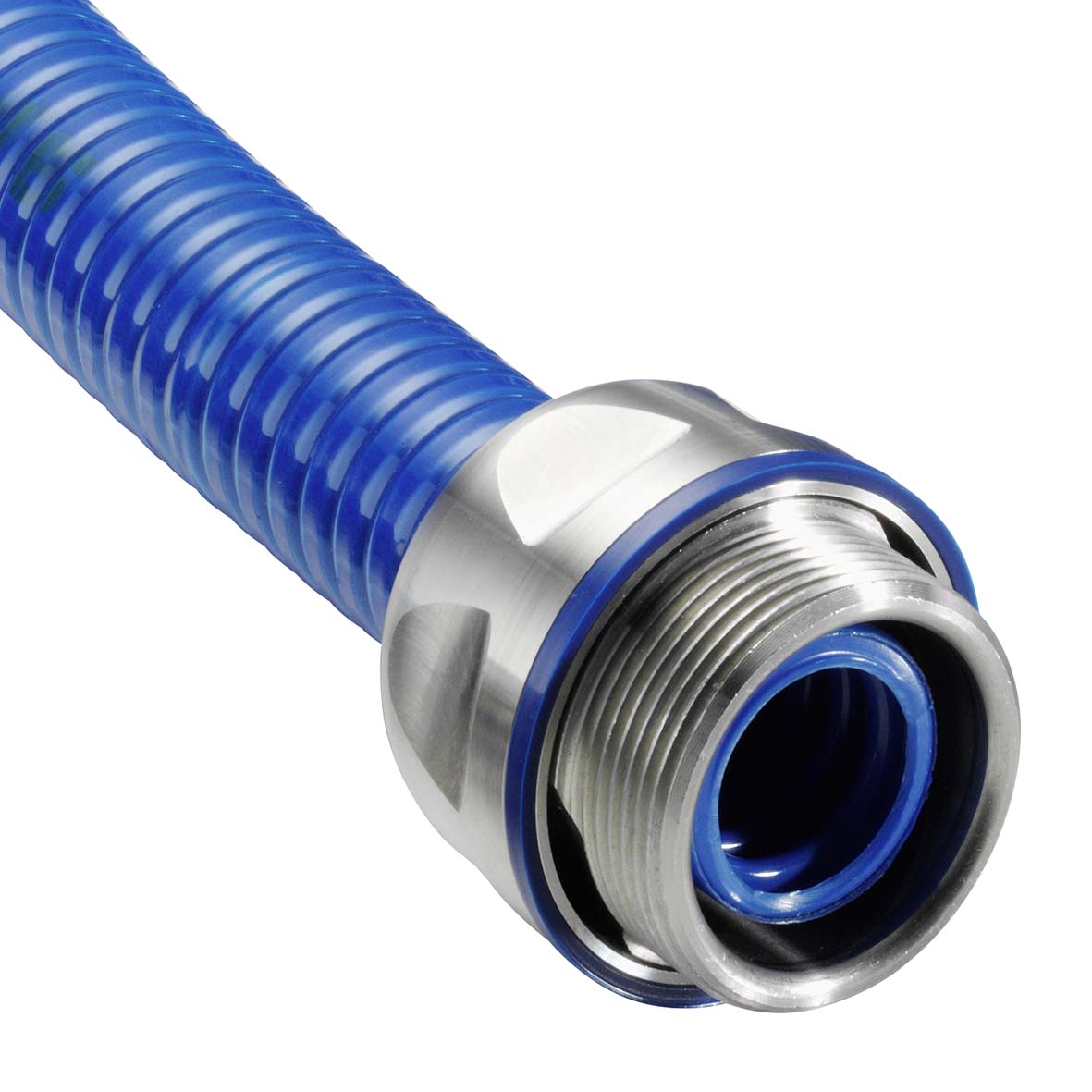

Combining the JFBD conduit with our new blueglobe CLEAN® Plus cable gland offers end-to-end cable protection solutions for the food production sector.
Application
- for dynamic or static processing cable protection systems in food industry
- for general applications with high cleaning requirements
Characteristics
- smooth outer layer
- easy cleaning
- good resistance to dynamic loads / high reversed bending stresses
- good flexibility in combination with high strength
- high resistance to abrasion
- high resistance to chemicals and cleaning agents
- free from halogen and cadmium
- corrosion free
Specifications
- FDA 21 CFR / EU 10/2011 approved outer layer material; ECOLAB certificate
Ingress protection
- IP68 with cable gland blueglobe CLEAN Plus®
Thermal properies
- Continuous application temperature -20°C...+95°C, short term +120°C (168 h)
- FDA application: continuous application temperature -20°C...+65°C
Material:
Polyamide 12, overextrusion made from modified polyamide elastomer
Temperature range:
-20°C....+95°C
Halogen-Free:
Yes
