Open Braided Hose G.PX
For mechanical protection in a wide range of applications,
also for retrofit installation.
Material: polyester monofil and multifil fibres.
For bundling and protection of electrical wires or cables.
Abrasion and vibration protection.
Very good resistance against chemicals.
UV resistant.
Highly flexible.
Self-extinguishing.
Free from halogens

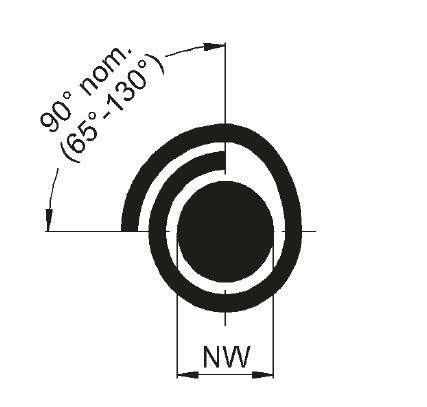

Article no. | min Ø mm | max Ø mm | NW | Pcs/pack |
G.PX.05SW | 4.5 | 5.5 | 5 | 25 |
G.PX.08SW | 7 | 9 | 8 | 25 |
G.PX.10SW | 9 | 11 | 10 | 25 |
G.PX.13SW | 11.5 | 13 | 13 | 25 |
G.PX.16SW | 14.5 | 17.5 | 16 | 25 |
G.PX.19SW | 17 | 21 | 19 | 25 |
G.PX.25SW | 22.5 | 27.5 | 25 | 25 |
G.PX.29SW | 26 | 32 | 29 | 25 |
G.PX.32SW | 29 | 35 | 32 | 25 |
G.PX.38SW | 34 | 42 | 38 | 25 |
G.PX.50SW | 45 | 55 | 50 | 25 |
Temperature range:
-55°C....+150°C
Colour:
Black
Halogen-Free:
Yes
