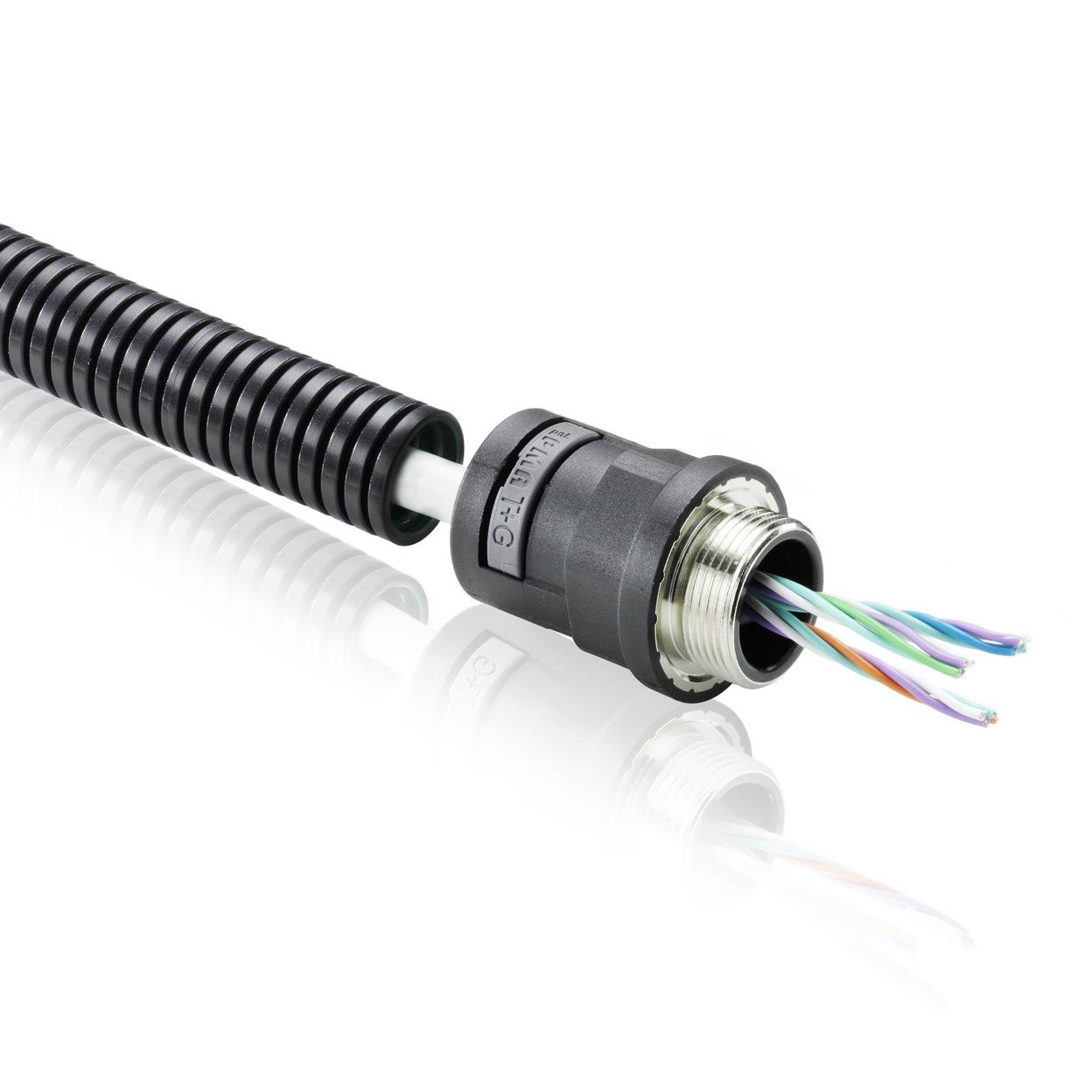

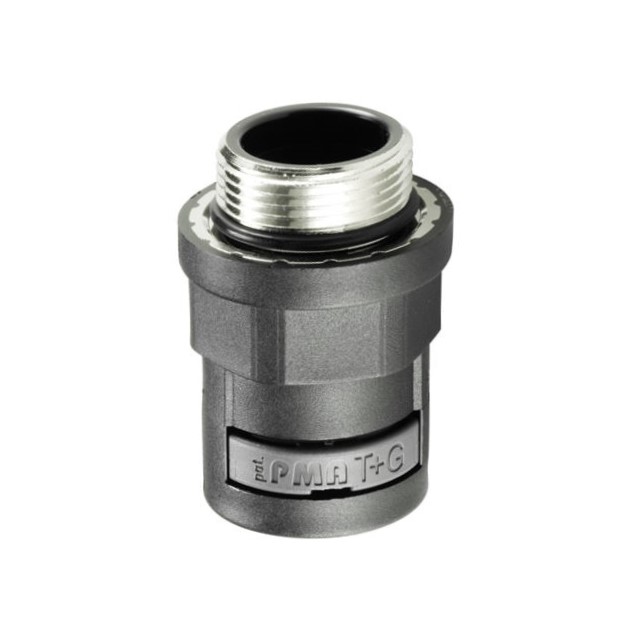

Straight conduit-connector with metal thread IP68 Metric
- For cable protection systems in a wide range of applications.
- High-grade, specially formulated polyamide 6.
- Nickel-plated brass thread
- Very high impact resistance.
- Vibration-proof connection to PMAFLEX conduits.
- Easy installation
- High conduit pull-out strength.
- Very good chemical properties.
- Free from halogens and cadmium.
- Fits both conduit profiles - fine (T) and coarse (G)
- M12x1,5 (2)
- M16x1,5 (4)
- M20x1,5 (4)
- M25x1,5 (4)
- M32x1,5 (4)
- M40x1,5 (4)
- M50x1,5 (4)
- M63x1,5 (2)
- 10 (4)
- 12 (4)
- 17 (4)
- 23 (4)
- 29 (4)
- 36 (4)
- 48 (4)
| Article no. | Connection thread | Conduit size | g mm | L mm | SW mm | Ø ID mm | Ø D max mm | Pcs/pack |
| NVNV-M120-10 | M12x1,5 | 10 | 10 | 40 | 19 | 5.5 | 21 | 50 |
| NVNV-M120-5 | M12x1,5 | 10 | 5 | 35 | 19 | 5.5 | 21 | 50 |
| NVNV-M160-10 | M16x1,5 | 10 | 10 | 40 | 19 | 9.5 | 24 | 50 |
| NVNV-M160-5 | M16x1,5 | 10 | 5 | 35 | 19 | 9.5 | 24 | 50 |
| NVNV-M162-10 | M16x1,5 | 12 | 10 | 43 | 24 | 9.5 | 26 | 50 |
| NVNV-M162-5 | M16x1,5 | 12 | 5 | 38 | 24 | 9.5 | 26 | 50 |
| NVNV-M202-10 | M20x1,5 | 12 | 10 | 43 | 24 | 13.5 | 28 | 50 |
| NVNV-M202-6 | M20x1,5 | 12 | 6 | 39 | 24 | 13.5 | 28 | 50 |
| NVNV-M207-10 | M20x1,5 | 17 | 10 | 51 | 30 | 13.5 | 33 | 50 |
| NVNV-M207-6 | M20x1,5 | 17 | 6 | 47 | 30 | 13.5 | 33 | 50 |
| NVNV-M257-11 | M25x1,5 | 17 | 11 | 52 | 30 | 18 | 35 | 50 |
| NVNV-M257-7 | M25x1,5 | 17 | 7 | 48 | 30 | 18 | 35 | 50 |
| NVNV-M253-11 | M25x1,5 | 23 | 11 | 54 | 36 | 18.5 | 39 | 30 |
| NVNV-M253-7 | M25x1,5 | 23 | 7 | 50 | 36 | 18.5 | 39 | 30 |
| NVNV-M323-13 | M32x1,5 | 23 | 13 | 56 | 36 | 24 | 43 | 30 |
| NVNV-M323-8 | M32x1,5 | 23 | 8 | 51 | 36 | 24 | 43 | 30 |
| NVNV-M329-13 | M32x1,5 | 29 | 13 | 57.3 | 46 | 25 | 50 | 20 |
| NVNV-M329-8 | M32x1,5 | 29 | 8 | 52.3 | 46 | 25 | 50 | 20 |
| NVNV-M409-13 | M40x1,5 | 29 | 13 | 57.3 | 46 | 31.5 | 53 | 20 |
| NVNV-M409-8 | M40x1,5 | 29 | 8 | 52.3 | 46 | 31.5 | 53 | 20 |
| NVNV-M406-13 | M40x1,5 | 36 | 13 | 71.4 | 55 | 32.5 | 59 | 20 |
| NVNV-M406-8 | M40x1,5 | 36 | 8 | 66.4 | 55 | 32.5 | 59 | 20 |
| NVNV-M506-14 | M50x1,5 | 36 | 14 | 72.4 | 55 | 39.5 | 65 | 20 |
| NVNV-M506-9 | M50x1,5 | 36 | 9 | 67.4 | 55 | 39.5 | 65 | 20 |
| NVNV-M508-14 | M50x1,5 | 48 | 14 | 72.4 | 55 | 41.5 | 71 | 10 |
| NVNV-M508-9 | M50x1,5 | 48 | 9 | 67.4 | 65 | 41.5 | 71 | 10 |
| NVNV-M638-14 | M63x1,5 | 48 | 14 | 72.4 | 65 | 41.5 | 75 | 10 |
| NVNV-M638-10 | M63x1,5 | 48 | 10 | 68.4 | 65 | 41.5 | 75 | 10 |
Material:
Polyamide 6 (PA6)
Ingress protection:
IP68
Temperature range:
-40°C....+105°C
Colour:
Black RAL 9005
Halogen-Free:
Yes
