Straight conduit-connector with metal thread IP68 PG
- For cable protection systems in a wide range of applications.
- High-grade, specially formulated polyamide 6.
- Nickel-plated brass thread
- Very high impact resistance.
- Vibration-proof connection to PMAFLEX conduits.
- Easy installation
- High conduit pull-out strength.
- Very good chemical properties.
- Free from halogens and cadmium.
- Fits both conduit profiles - fine (T) and coarse (G)
- PG 9 (1)
- PG 11 (1)
- PG 13,5 (1)
- PG 16 (1)
- PG 21 (1)
- PG 29 (2)
- PG 36 (1)
- PG 48 (1)
- 10 (1)
- 12 (1)
- 17 (2)
- 23 (2)
- 29 (1)
- 36 (1)
- 48 (1)

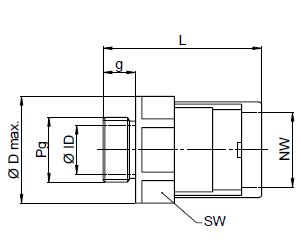

| Article no. | Connection thread | Internal Ø mm | Conduit size | g mm | L mm | SW mm | Ø ID mm | Ø D max mm | Pcs/pack |
| NVNV-P090 | PG 9 | 9.6 | 10 | 12 | 42 | 19 | 9.6 | 21 | 50 |
| NVNV-P112 | PG 11 | 12.5 | 12 | 12 | 45 | 24 | 12.5 | 26 | 50 |
| NVNV-P137 | PG 13,5 | 14.5 | 17 | 13 | 54 | 30 | 14.5 | 33 | 50 |
| NVNV-P167 | PG 16 | 16.5 | 17 | 13 | 54 | 30 | 16.5 | 33 | 50 |
| NVNV-P213 | PG 21 | 22 | 23 | 14 | 57 | 36 | 22 | 39 | 30 |
| NVNV-P293 | PG 29 | 26.5 | 23 | 14 | 62.5 | 36 | 26.5 | 43 | 30 |
| NVNV-P299 | PG 29 | 30 | 29 | 14 | 58.5 | 46 | 30 | 50 | 20 |
| NVNV-P366 | PG 36 | 40 | 36 | 17 | 75.5 | 55 | 40 | 59 | 20 |
| NVNV-P488 | PG 48 | 50 | 48 | 17 | 75.5 | 66 | 50 | 71 | 10 |
Material:
Polyamide 6 (PA6)
Ingress protection:
IP68
Temperature range:
-40°C....+105°C
Colour:
Black RAL 9005
Halogen-Free:
Yes
