Metal Swivel-Adapter
- For connection with connectors with metal thread.
- Nickel-plated brass)
- Connectors to swivel freely in applications where such movement is occasionally necessary. With thread edge protection
- M16x1,5 (1)
- M20x1,5 (1)
- M25x1,5 (1)
- M32x1,5 (1)
- M40x1,5 (1)
- M50x1,5 (1)
- M63x1,5 (1)
- M16x1,5 (1)
- M20x1,5 (1)
- M25x1,5 (1)
- M32x1,5 (1)
- M40x1,5 (1)
- M50x1,5 (1)
- M63x1,5 (1)

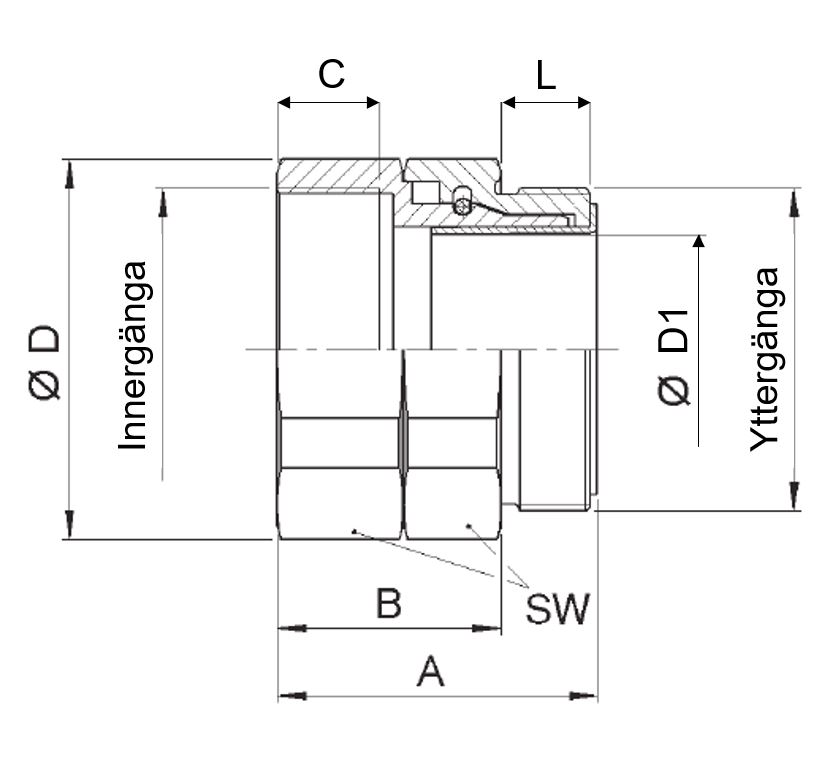

| Article no. | Connection thread | Internal thread | g mm | L mm | Ø D mm | Ø D1 mm | A mm | B mm | C mm | SW mm | Pcs/pack |
| SWA-M16-10 | M16x1,5 | M16x1,5 | 10 | 10 | 23 | 7.0 | 37.5 | 26,5 | 11,0 | 21 | 1 |
| SWA-M20-10 | M20x1,5 | M20x1,5 | 10 | 10 | 27 | 10.0 | 38.5 | 27,5 | 11,0 | 25 | 1 |
| SWA-M25-11 | M25x1,5 | M25x1,5 | 11 | 11 | 32 | 15.5 | 41 | 29,0 | 12,0 | 30 | 1 |
| SWA-M32-13 | M32x1,5 | M32x1,5 | 13 | 13 | 45 | 22.0 | 46.5 | 32,5 | 14,0 | 41 | 1 |
| SWA-M40-13 | M40x1,5 | M40x1,5 | 13 | 13 | 55 | 29.0 | 47.5 | 33,5 | 14,0 | 50 | 1 |
| SWA-M50-14 | M50x1,5 | M50x1,5 | 14 | 14 | 59 | 35.5 | 49.5 | 34,5 | 16,0 | 55 | 1 |
| SWA-M63-14 | M63x1,5 | M63x1,5 | 14 | 14 | 75 | 45.5 | 52 | 37,0 | 15,0 | 70 | 1 |
Material:
Brass nickel plated (CuZn39Pb3)
Ingress protection:
IP68
Temperature range:
-40°C....+105°C
