Elbow conduit-connector 45° IP66 Metric
- For cable protection systems in a wide range of applications.
- High-grade, specially formulated polyamide 6.
- Very high impact resistance.
- Vibration-proof connection to PMAFLEX conduits.
- Easy installation: simply push the conduit in.
- High conduit pull-out strength.
- Can be easily re-opened with a screwdriver.
- Very good chemical properties.
- Free from halogens and cadmium.
- Fits both conduit profiles - fine (T) and coarse (G)
- M12x1,5 (1)
- M16x1,5 (2)
- M20x1,5 (2)
- M25x1,5 (1)
- M32x1,5 (1)
- M40x1,5 (1)
- M50x1,5 (2)
- M63x1,5 (1)
- NW 10 (2)
- NW 12 (2)
- NW 17 (1)
- NW 23 (1)
- NW 29 (1)
- NW 36 (2)
- NW 48 (2)

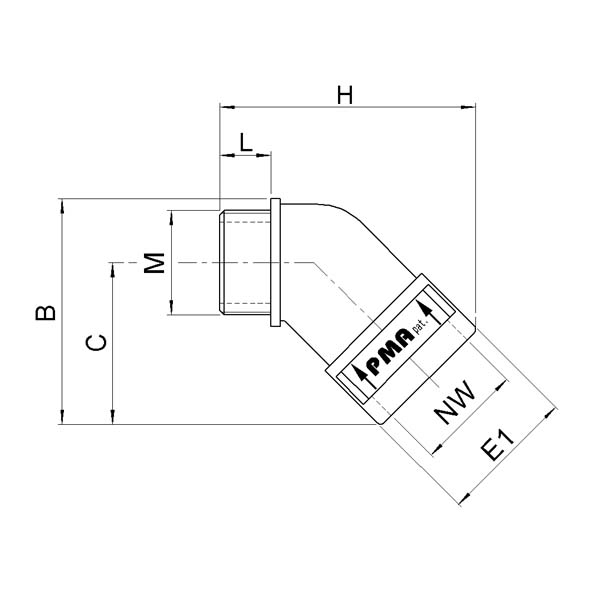

| E-number | Article no. | Connection thread | Conduit size | L mm | B mm | C mm | H mm | E1 mm | Pcs/pack |
| 1470129 | BVAD-M120GT | M12x1,5 | NW 10 | 11 | 37,0 | 27,0 | 43,5 | 20 | 50 |
| 1470120 | BVAD-M160GT | M16x1,5 | NW 10 | 11 | 38,0 | 27,0 | 43,5 | 20 | 50 |
| 1470121 | BVAD-M162GT | M16x1,5 | NW 12 | 11 | 40,0 | 28,5 | 48,0 | 24 | 50 |
| 1470130 | BVAD-M202GT | M20x1,5 | NW 12 | 11 | 41,5 | 28,5 | 48,0 | 24 | 50 |
| 1470122 | BVAD-M207GT | M20x1,5 | NW 17 | 11 | 51,5 | 37,0 | 55,5 | 30 | 50 |
| 1470123 | BVAD-M253GT | M25x1,5 | NW 23 | 12 | 58,5 | 43,0 | 65,0 | 37 | 30 |
| 1470124 | BVAD-M329GT | M32x1,5 | NW 29 | 15 | 66,5 | 46,5 | 73,5 | 44 | 20 |
| 1470125 | BVAD-M406GT | M40x1,5 | NW 36 | 19 | 85,5 | 60,0 | 92,5 | 53 | 20 |
| - | BVAD-M506GT | M50x1,5 | NW 36 | 19 | 90,5 | 59 | 93,5 | 59 | 20 |
| 1470126 | BVAD-M508GT | M50x1,5 | NW 48 | 19 | 96,0 | 66,5 | 100,0 | 65 | 10 |
| 1410667 | BVAD-M638GT | M63x1,5 | NW 48 | 19 | 104,0 | 66,5 | 100,0 | 65 | 10 |
Material:
Polyamide PA6
Ingress protection:
IP66
Temperature range:
-40°C....+105°C
Colour:
Black RAL 9005
Test standard:
EN 60529 / IEC 60529
Flame class:
UL94 V0
Glow wire test:
960°C acc. to EN 60695-2-10
Halogen-Free:
Yes
