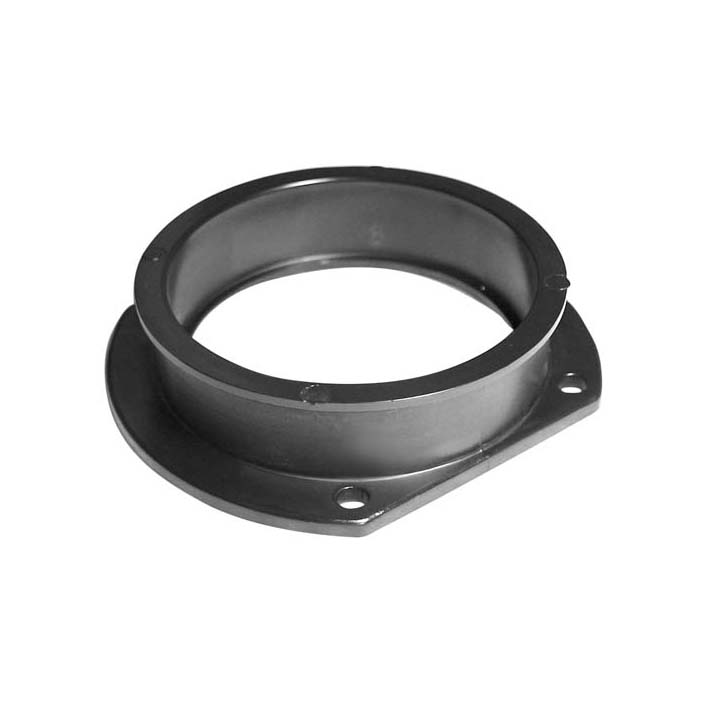

Flange straight IP65
- For cable protection systems in a wide range of applications.
- Specially formulated polyamide 6.
- Flange seal FGO4 made from EPDM.
- Flange seal FGO4/01 made from NBR.
- Very high impact resistance.
- Vibration-proof connection to PMAFLEX conduits.
- High conduit pull-out strength.
- Selectable flange seal included.
- Very good chemical properties.
- Free of halogen and cadmium.
- Fits both conduit profiles - fine (T) and coarse (G).
- NW 56 (1)
- NW 70 (1)
- NW 95 (1)
- NW 125 (1)

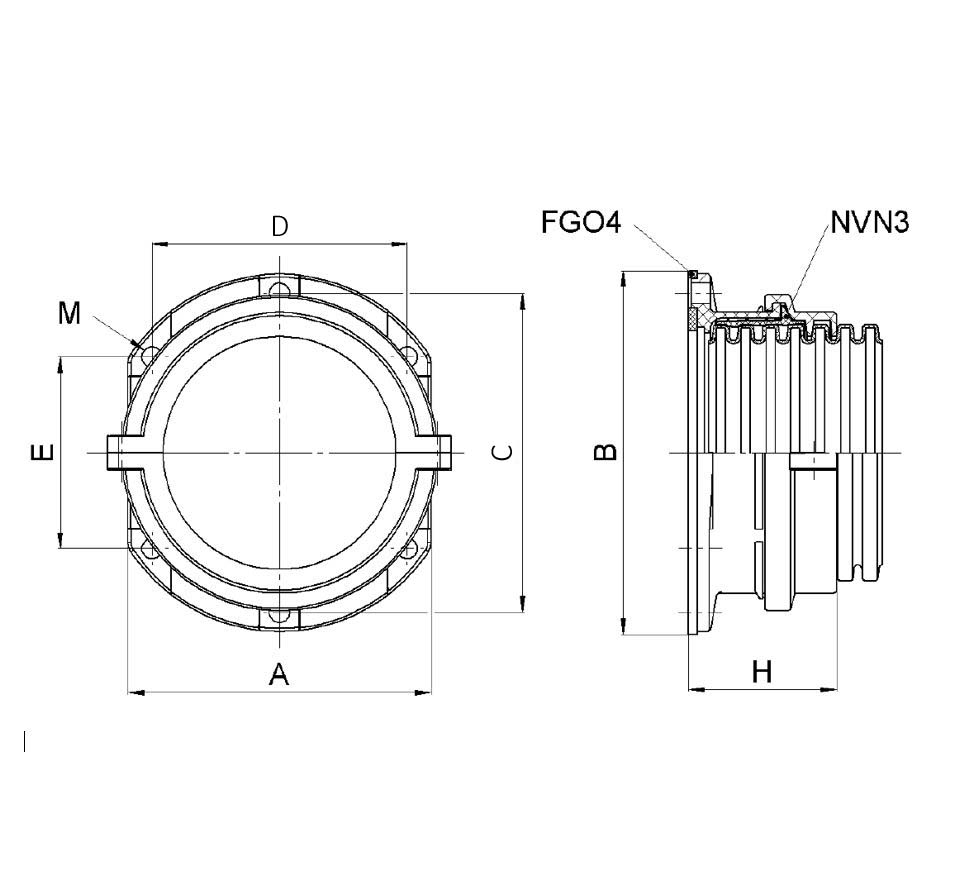

| E-number | Article no. | Conduit size | A mm | B mm | C mm | D mm | H mm | E mm | M | Pcs/pack |
| 1410388 | BGG-56 | NW 56 | 82,0 | 97,0 | - | 66,0 | 42,0 | 60 | 4 x M6 | 10 |
| 1410390 | BGG-70 | NW 70 | 97,0 | 114,0 | 100,0 | 80,0 | 48,0 | 60 | 6 x M6 | 10 |
| 1410392 | BGG-95 | NW 95 | 126,0 | 146,0 | 131,0 | 108,0 | 53,0 | 74 | 6 x M6 | 10 |
| 1410393 | BGG-125 | NW 125 | - | 194,0 | 177,0 | 153,5 | 79,0 | 88.5 | 6 x M6 | 5 |
Material:
Polyamide PA6
Sealing ring:
EPDM
O-ring:
Nitrile Rubber NBR
Ingress protection:
IP65
Temperature range:
-40°C....+105°C
Colour:
Black RAL 9005
Test standard:
EN 60529 / DIN 40050 / IEC 60529
Flame class:
UL94 V0 (V2)
Glow wire test:
960°C acc. to EN 60695-2-10
Halogen-Free:
Yes
