BCCH - Cobot Conduit Holder
PMA conduit holder for fixing PMA conduits along cobot arms

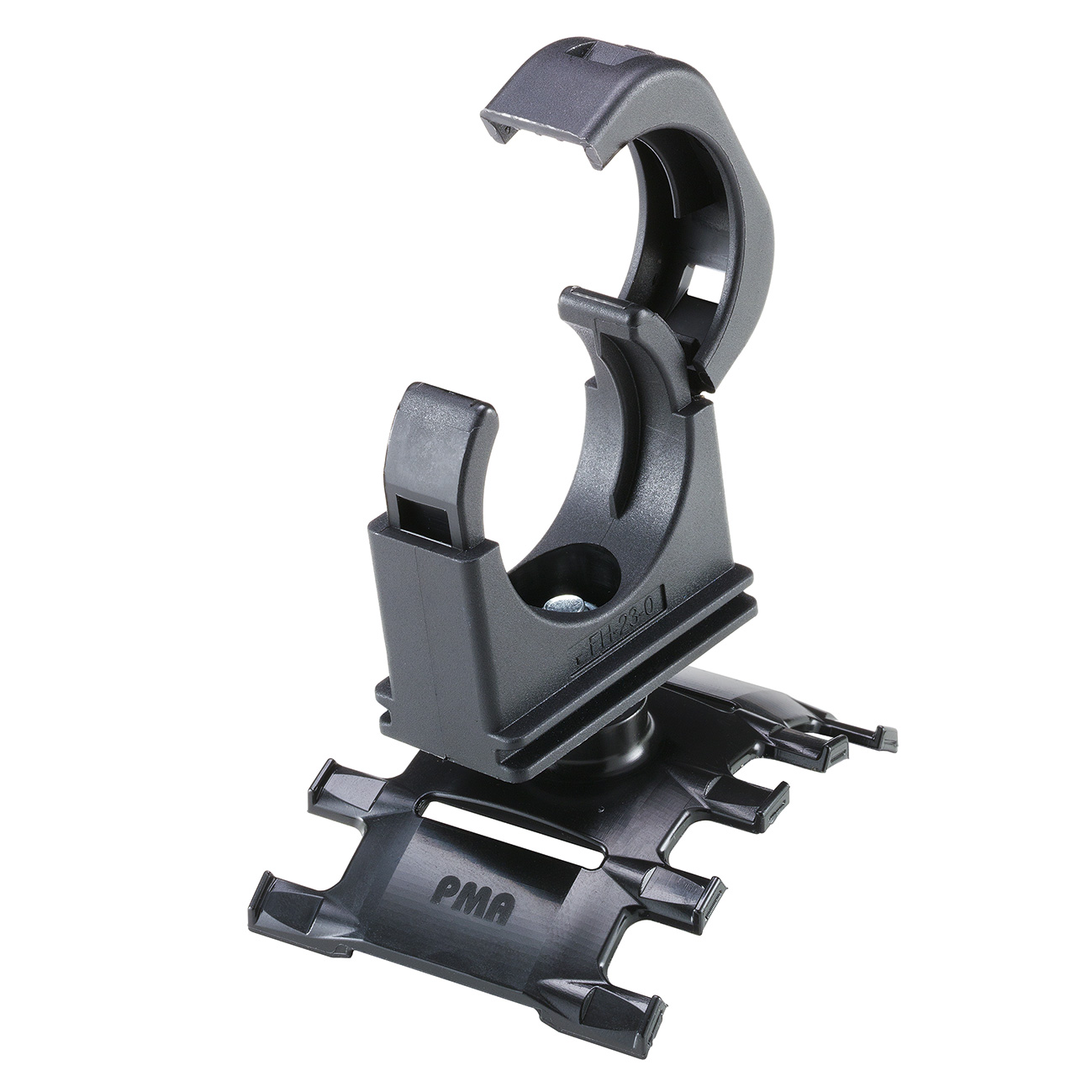

Easy to install and to exchange PMA conduit holder for fixing PMA conduits along a variety of cylindrical & elliptical shaped collaborative robot (cobot) arms. Flexible design of swivel base ensures compatibility with cobot models of most widely used cobot manufacturers. Fastening along cobot arm with Velcro® and/or cables ties. 360° swiveling of BFH-0 clip gives flexibility and reduces mechanical stress induced by cobot movements. 10° tilt angle of FH-clip in any direction.
- NW 17 (1)
- NW 23 (1)
- NW 29 (1)
| Article no. | Conduit size | A mm | B mm | C mm | D mm | min Ø mm | max Ø mm |
| BCCH-17 | NW 17 | 44.5 | 57,9 | 45 | 19 | 56 | 370 |
| BCCH-23 | NW 23 | 52.5 | 57,9 | 45 | 19 | 56 | 370 |
| BCCH-29 | NW 29 | 58.5 | 57,9 | 45 | 19 | 56 | 370 |
Features & Benefits:
- Flexible design of swivel base ensures compatibility with cobot models of most widely used brands (e.g., ABB™, UR™, Omron™, etc.)
- Fastening along cobot arm with Velcro® and/or cables ties
- 360° swiveling of BFH-0 clip gives flexibility and reduces mechanical stress induced by cobot movements
- 10° tilt angle of FH-clip in any direction
- Fits G- and T conduit profile
- Easy to install and to exchange
Additional information:

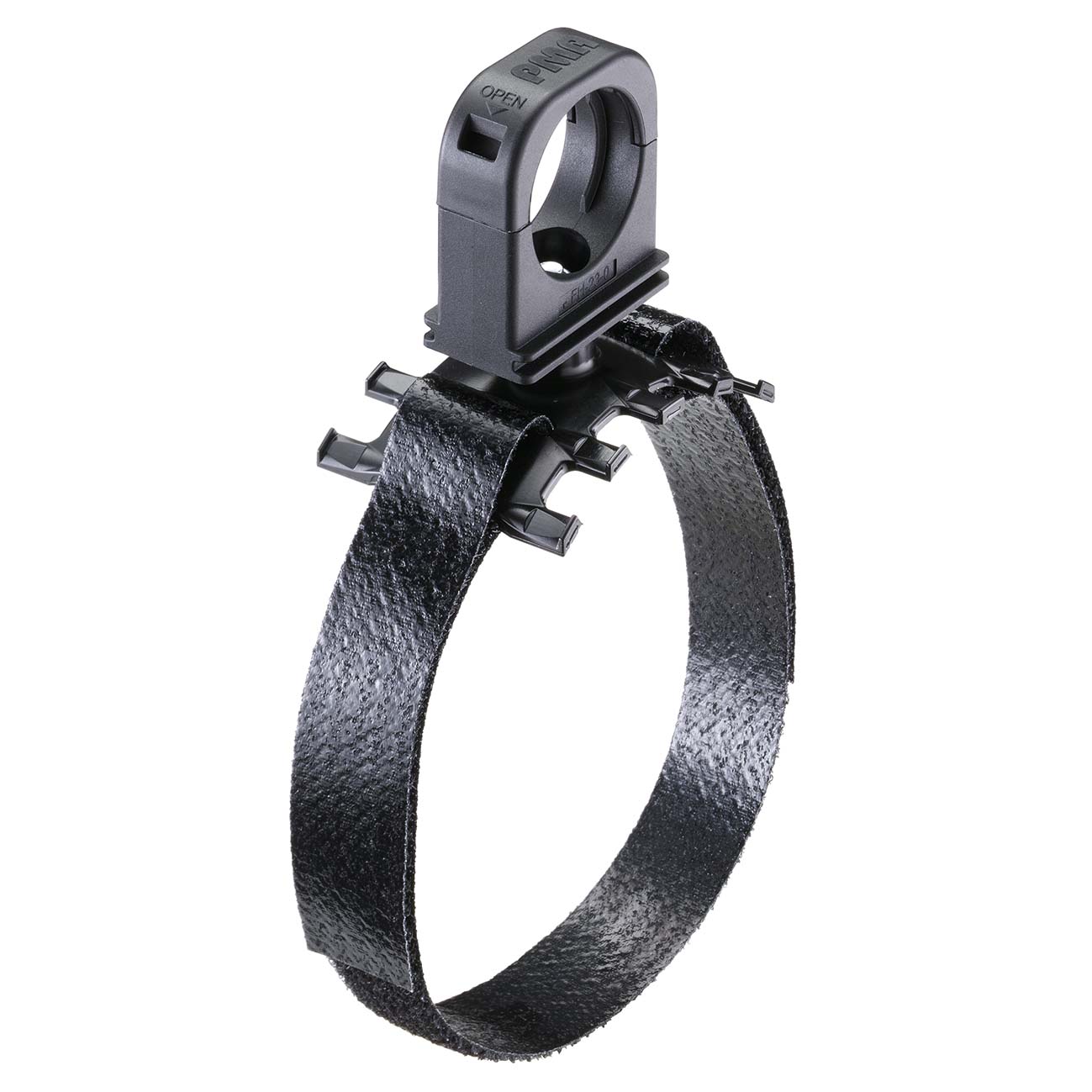

- Installation with Velcro® for cylindrical arm diameter 56mm – 120mm
- For arm diameter 120mm-370mm, the use of a Velcro® and additional cable ties (not included) is recommended
Material:
Polyamide 6
Halogen-Free:
Yes
