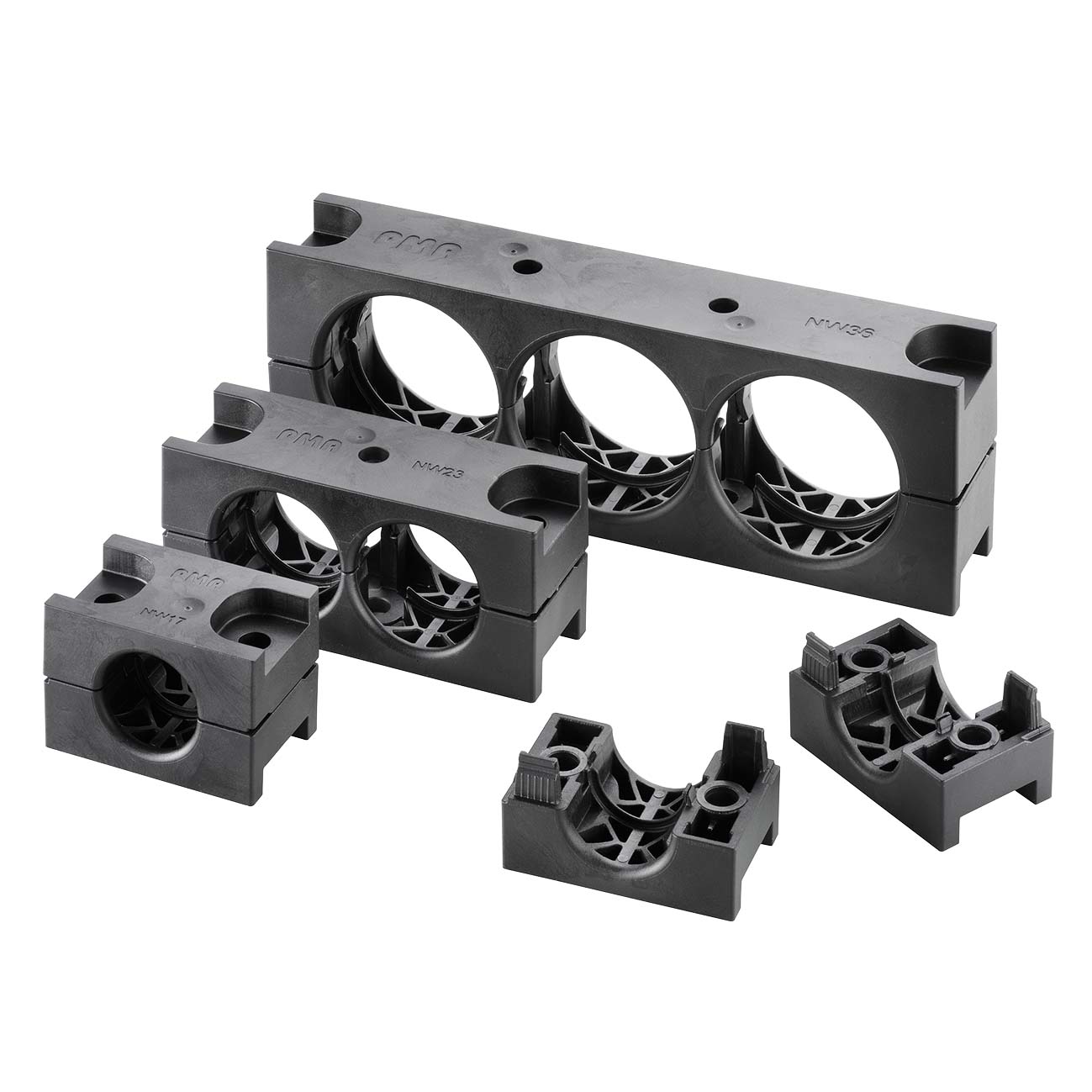

Multi system holder BGPM

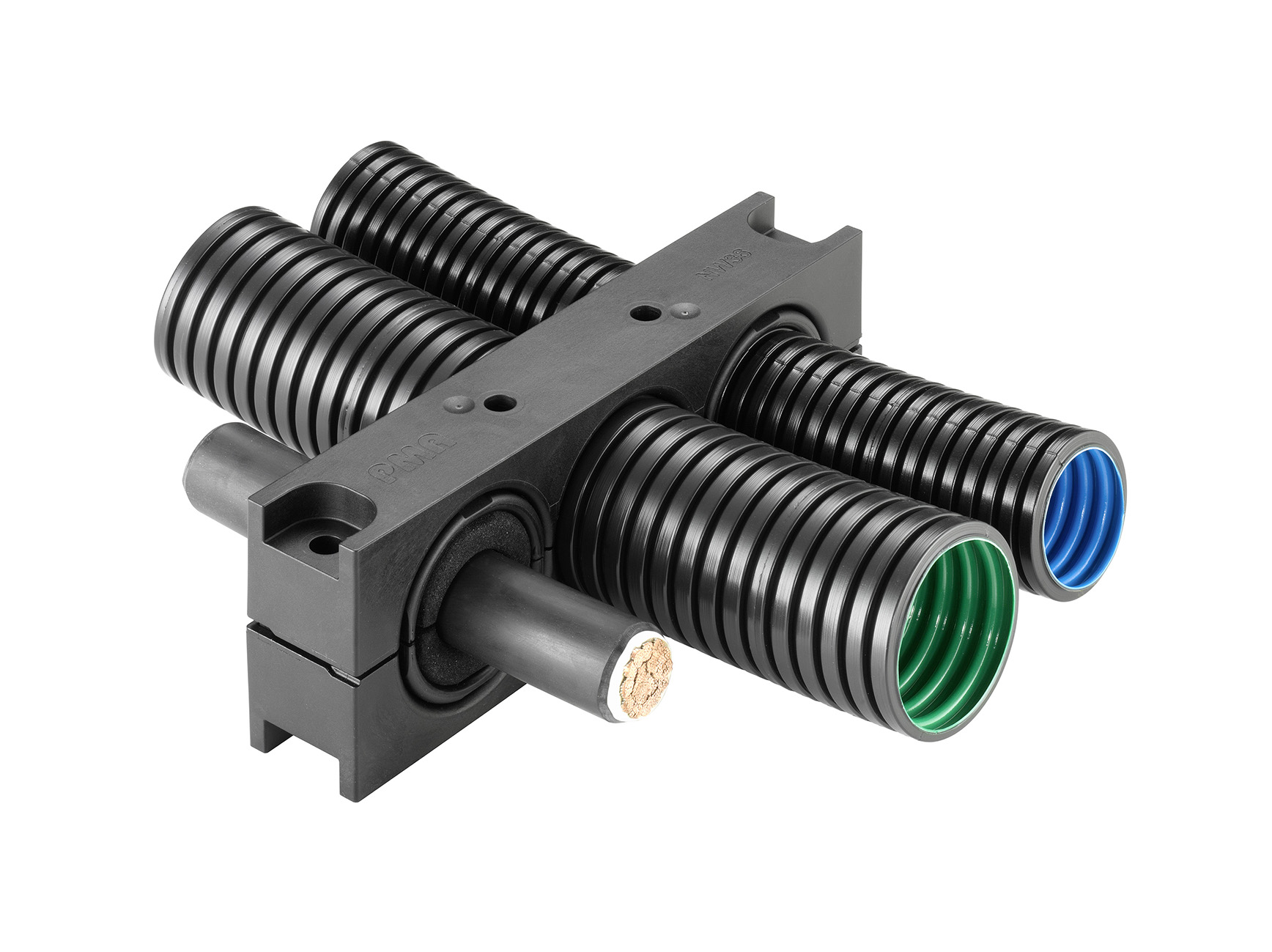

- Multi system holder in compact and lightweight design for axial fixing of conduits or cables.
- The ability to rotate in position to prevent torsion.
- Fitted with M6 screw, not included.
- Material: specially made polyamide 6.
- To reduce the hose size, there is adapter BGPMR.
- Free from halogens and cadmium.
- 1 x NW10 (1)
- 1 x NW12 (1)
- 2 x NW12 (1)
- 3 x NW12 (1)
- 4 x NW12 (1)
- 1 x NW17 (1)
- 2 x NW17 (1)
- 3 x NW17 (1)
- 4 x NW17 (1)
- 1 x NW23 (1)
- 2 x NW23 (1)
- 3 x NW23 (1)
- 4 x NW23 (1)
- 1 x NW29 (1)
- 2 x NW29 (1)
- 3 x NW29 (1)
- 4 x NW29 (1)
- 1 x NW36 (1)
- 2 x NW36 (1)
- 3 x NW36 (1)
- 4 x NW36 (1)
- 1 x NW48 (1)
- 2 x NW48 (1)
- 3 x NW48 (1)
- 4 x NW48 (2)

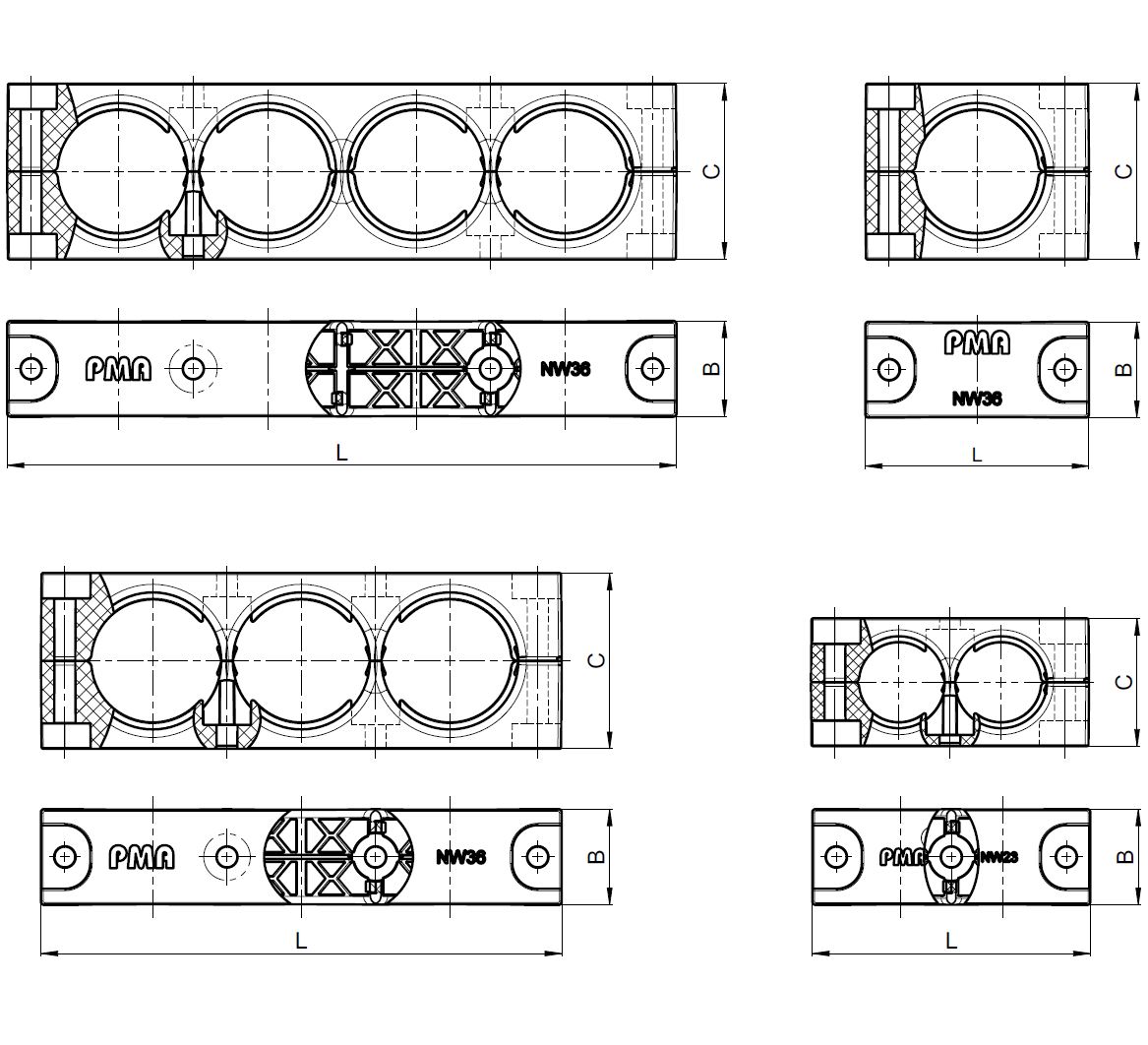

| E-number | Article no. | Profile | Conduit size | L mm | B mm | C mm | Pcs/pack |
| - | BGPM-1x10 | T | 1 x NW10 | 39.5 | 30 | 24.5 | 10 |
| 1406541 | BGPM-1x12 | T | 1 x NW12 | 42.5 | 30 | 28 | 10 |
| - | BGPM-2x12 | T | 2 x NW12 | 61 | 30 | 28 | 10 |
| - | BGPM-3x12 | T | 3 x NW12 | 79.5 | 30 | 28 | 5 |
| - | BGPM-4x12 | T | 4 x NW12 | 98 | 30 | 28 | 5 |
| 1406437 | BGPM-1x17 | T/G | 1 x NW17 | 48 | 30 | 33 | 10 |
| - | BGPM-2x17 | T/G | 2 x NW17 | 72.5 | 30 | 33 | 10 |
| 1406542 | BGPM-3x17 | T/G | 3 x NW17 | 97 | 30 | 33 | 5 |
| - | BGPM-4x17 | T/G | 4 x NW17 | 121.5 | 30 | 33 | 5 |
| 1406438 | BGPM-1x23 | T/G | 1 x NW23 | 55 | 30 | 40 | 10 |
| 1406439 | BGPM-2x23 | T/G | 2 x NW23 | 87 | 30 | 40 | 10 |
| 1406543 | BGPM-3x23 | T/G | 3 x NW23 | 119 | 30 | 40 | 5 |
| 1406544 | BGPM-4x23 | T/G | 4 x NW23 | 151 | 30 | 40 | 5 |
| 1406545 | BGPM-1x29 | T/G | 1 x NW29 | 61 | 30 | 46 | 10 |
| - | BGPM-2x29 | T/G | 2 x NW29 | 99.5 | 30 | 46 | 10 |
| 1406546 | BGPM-3x29 | T/G | 3 x NW29 | 137.5 | 30 | 46 | 5 |
| - | BGPM-4x29 | T/G | 4 x NW29 | 176 | 30 | 46 | 5 |
| 1406440 | BGPM-1x36 | T/G | 1 x NW36 | 70 | 30 | 55 | 10 |
| 1406547 | BGPM-2x36 | T/G | 2 x NW36 | 116.5 | 30 | 55 | 10 |
| 1406441 | BGPM-3x36 | T/G | 3 x NW36 | 163 | 30 | 55 | 5 |
| 1406548 | BGPM-4x36 | T/G | 4 x NW36 | 209.5 | 30 | 55 | 5 |
| 1406442 | BGPM-1x48 | T/G | 1 x NW48 | 82 | 30 | 66 | 10 |
| - | BGPM-2x48 | T/G | 2 x NW48 | 141 | 30 | 66 | 10 |
| 1406549 | BGPM-3x48 | T/G | 3 x NW48 | 199.5 | 30 | 66 | 5 |
| 1406550 | BGPM-4x48 | T/G | 4 x NW48 | 258.5 | 30 | 66 | 5 |
| BGPM-4x48 | T/G | 4 x NW48 | 258.5 | 30.0 | 66.0 | 5 |
Material:
Polyamide 6
Temperature range:
-50°C....+105°C
Colour:
Black RAL 9005
Halogen-Free:
Yes
