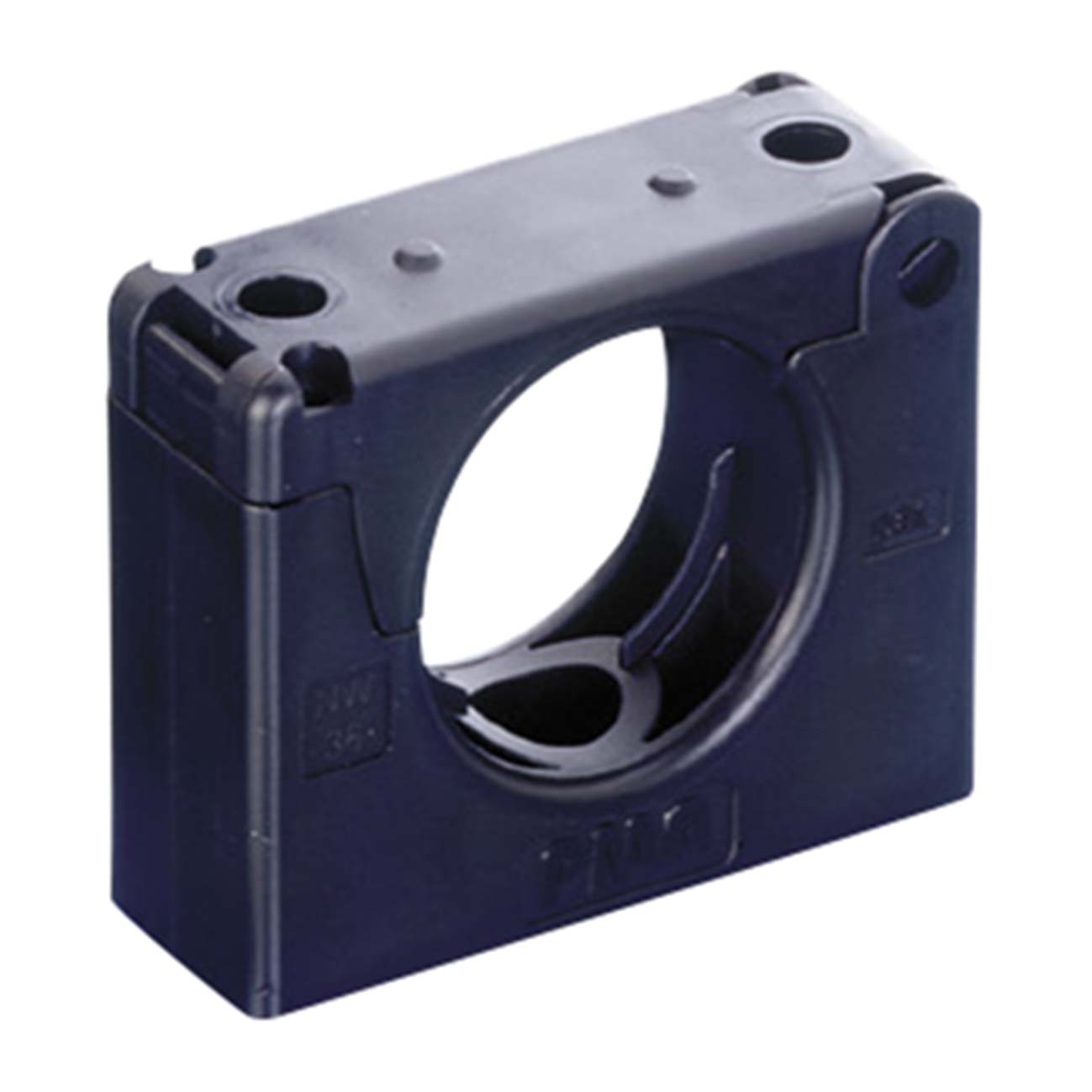

System support BGPS
- For railway vehicle construction, heavy machine building industry and other applications with increased mechanical requirements.
- High-grade, specially formulated polyamide 6.
- One-piece construction, stackable.
- Very high impact resistance.
- Heavy design, high retention forces.
- Applicable with standard metal C rails.

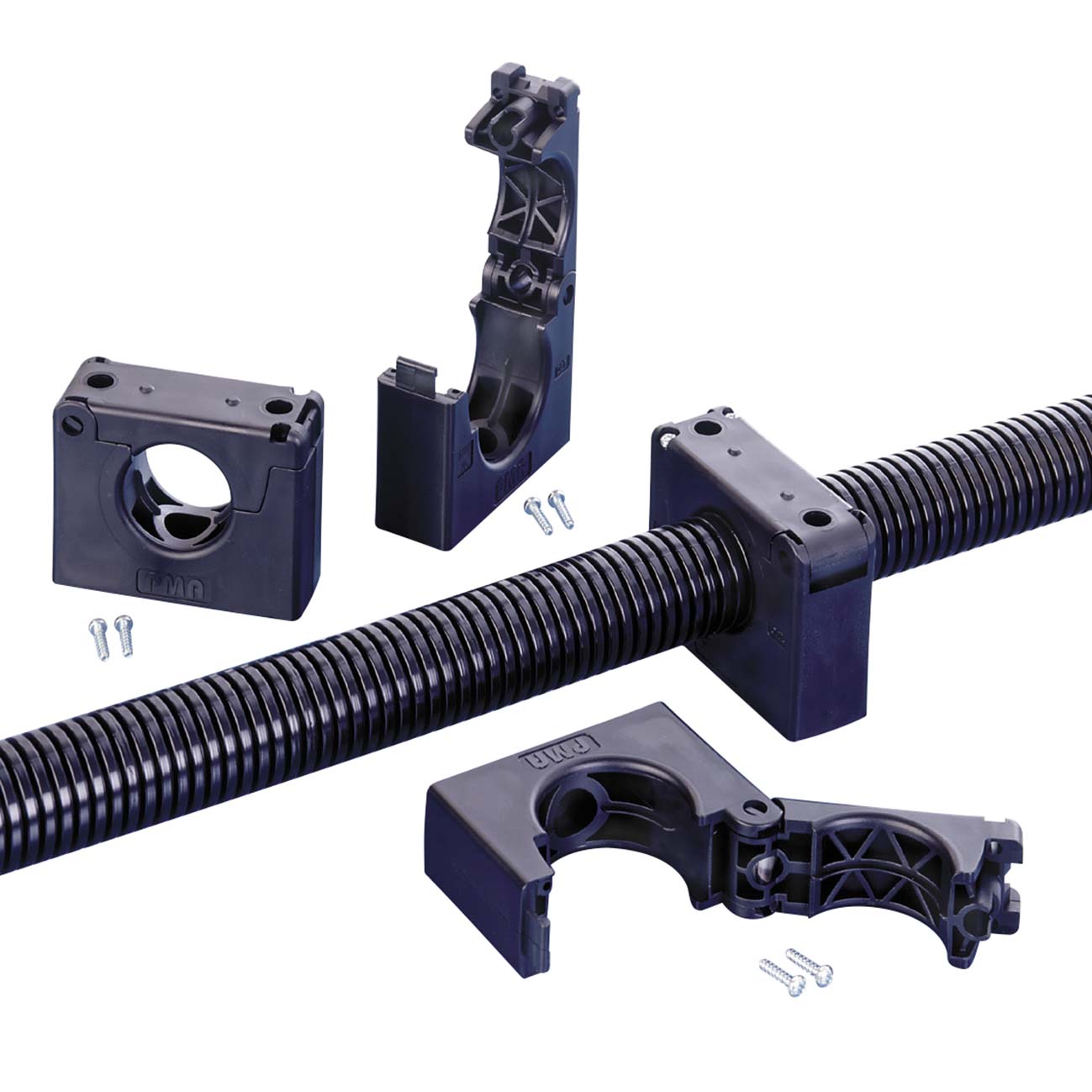

- Easy pre-installation by conduit snap-in.

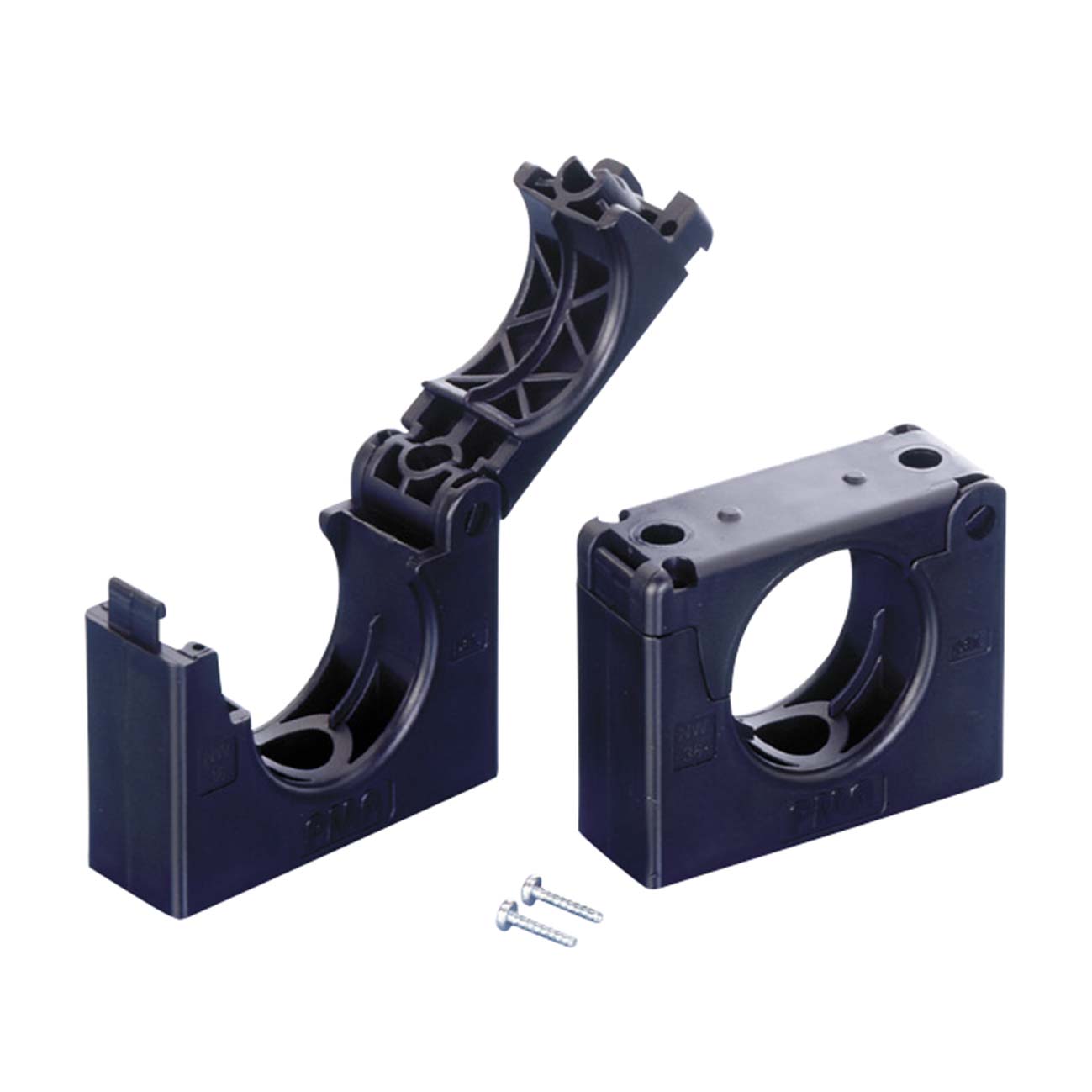

- Clasp for easy pre-mounting and final assembly
- Very good chemical properties.
- Free from halogens and cadmium.
- Fits both conduit profiles - fine (T) and coarse (G).
- NW 12 (1)
- NW 17 (1)
- NW 23 (1)
- NW 29 (1)
- NW 36 (1)
- NW 48 (1)
- NW 56 (1)

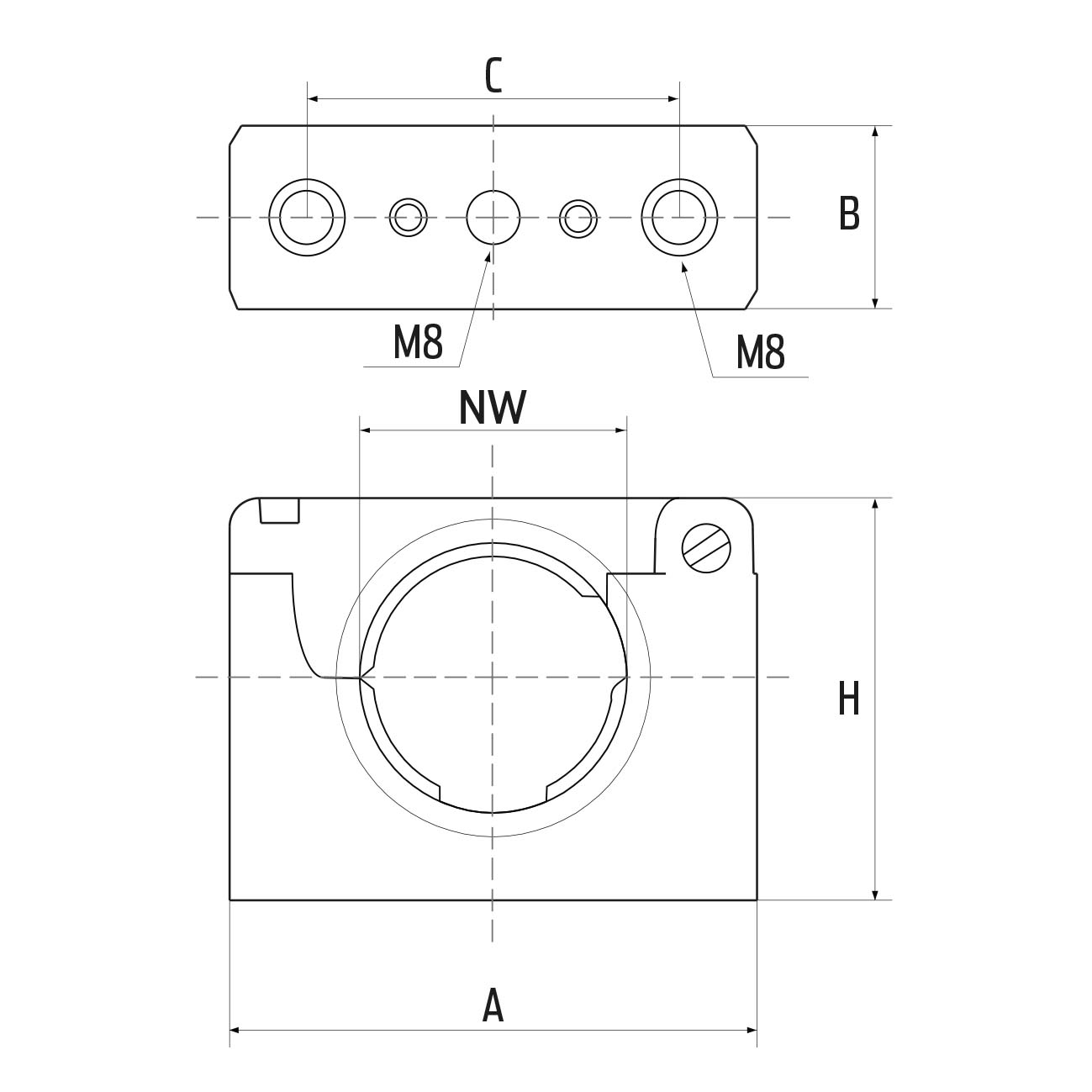

| E-number | Article no. | Conduit size | A mm | B mm | C mm | H mm | M | Pcs/pack |
| 1410381 | BGPS-12/01 | NW 12 | 70 | 30 | 45 | 51 | M8 | 30 |
| 1410382 | BGPS-17 | NW 17 | 70 | 30 | 45 | 51 | M8 | 30 |
| 1410383 | BGPS-23 | NW 23 | 70 | 30 | 45 | 51 | M8 | 30 |
| 1410384 | BGPS-29 | NW 29 | 85 | 30 | 60 | 65 | M8 | 20 |
| 1410385 | BGPS-36 | NW 36 | 85 | 30 | 60 | 65 | M8 | 10 |
| 1410386 | BGPS-48 | NW 48 | 115 | 30 | 90 | 92.5 | M8 | 10 |
| 1410387 | BGPS-56 | NW 56 | 115 | 30 | 90 | 92.5 | M8 | 10 |
Material:
Polyamide PA6
Temperature range:
-50°C....+105°C
Colour:
Black RAL 9005
Flame class:
UL94 V2
Glow wire test:
960°C acc. to EN 60695-2-10
Halogen-Free:
Yes
