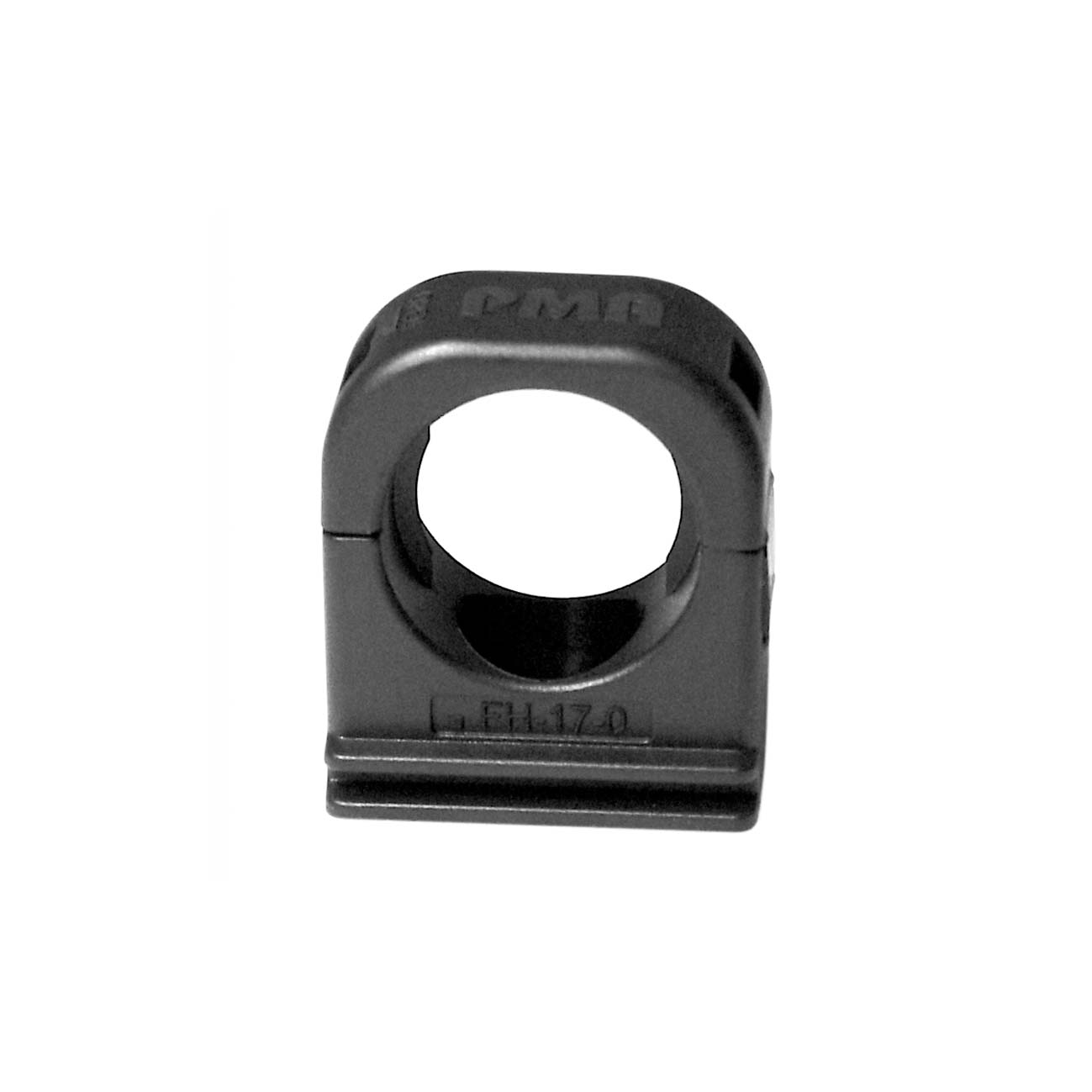

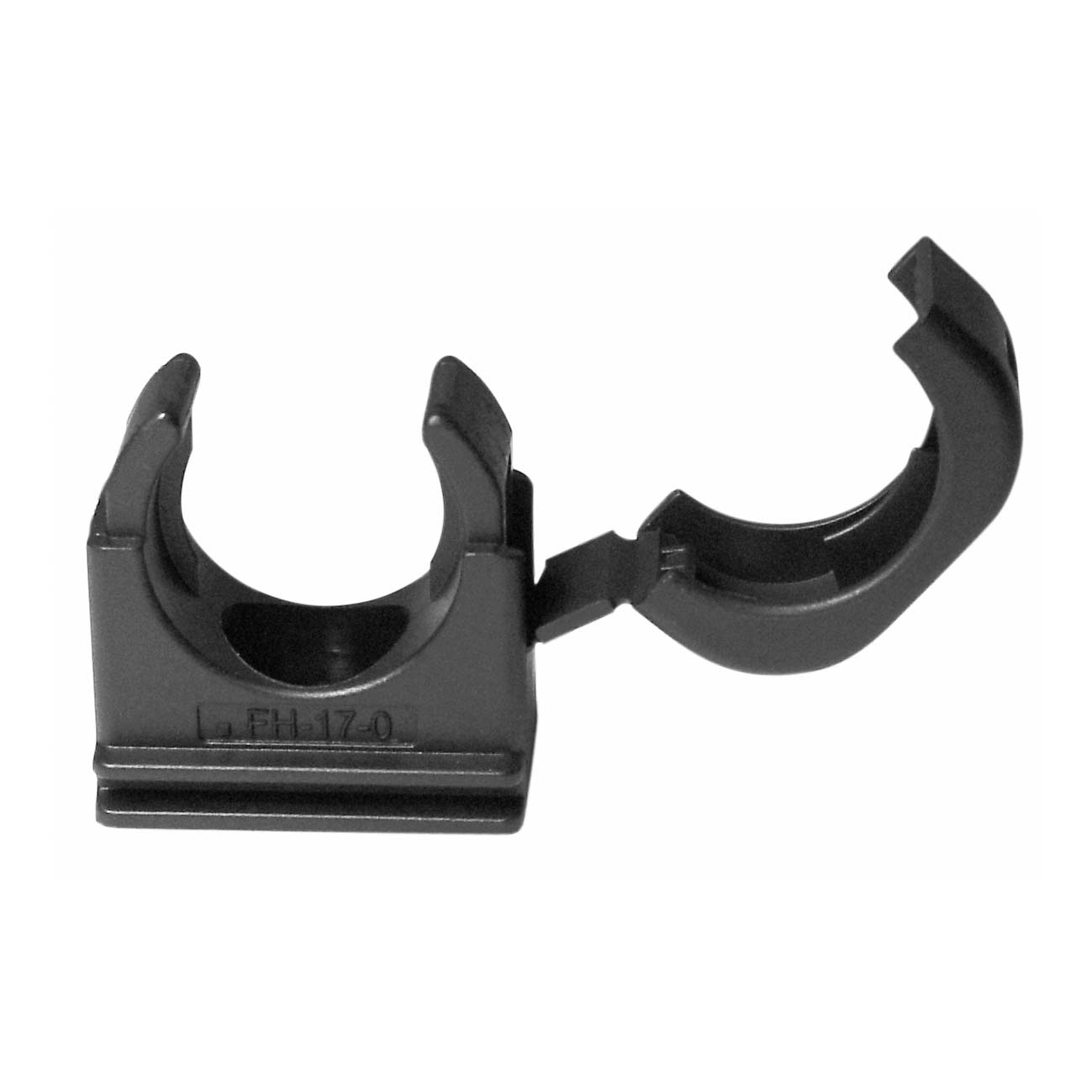

System support - one-piece with safety lid
- For machine building and installation applications.
- High-grade, specially formulated polyamide 6.
- One-piece construction.
- Very high impact resistance.
- Optimal axial strain relief due to integrated rib.
- Suitable for overhead installations due to safety lid.
- High retention forces.
- Quick mounting due to single hole fixing.
- Very good chemical properties.
- Free from halogens and cadmium.
- Fits both conduit profiles-fine (T) and coarse (G).
- NW 7 (1)
- NW 10 (1)
- NW 12 (1)
- NW 17 (1)
- NW 23 (1)
- NW 29 (1)
- NW 36 (1)
- NW 48 (1)
| E-number | Article no. | Conduit size | A mm | B mm | C mm | H mm | E mm | M | Pcs/pack |
| 1410320 | BFH-07-0 | NW 7 | 17,0 | 20,0 | 21,5 | 13,5 | 40.5 | M4 | 100 |
| 1410321 | BFH-10-0 | NW 10 | 20,5 | 20,0 | 24,5 | 13,5 | 47.5 | M5 | 100 |
| 1410322 | BFH-12-0 | NW 12 | 24,0 | 20,0 | 27,0 | 16,5 | 54.5 | M5 | 100 |
| 1410323 | BFH-17-0 | NW 17 | 30,0 | 20,0 | 34,0 | 20,0 | 68 | M6 | 100 |
| 1410324 | BFH-23-0 | NW 23 | 38,5 | 20,0 | 42,0 | 24,0 | 85 | M6 | 100 |
| 1410325 | BFH-29-0 | NW 29 | 45,5 | 20,0 | 48,0 | 27,0 | 99 | M6 | 100 |
| 1410326 | BFH-36-0 | NW 36 | 55,5 | 20,0 | 56,0 | 31,0 | 119 | M6 | 50 |
| 1410327 | BFH-48-0 | NW 48 | 67,5 | 20,0 | 68,0 | 37,0 | 143 | M6 | 50 |
Material:
Polyamide PA6
Temperature range:
-40°C....+105°C
Colour:
Black RAL 9005
Flame class:
UL94 V2
Glow wire test:
960°C acc. to EN 60695-2-10
Halogen-Free:
Yes
