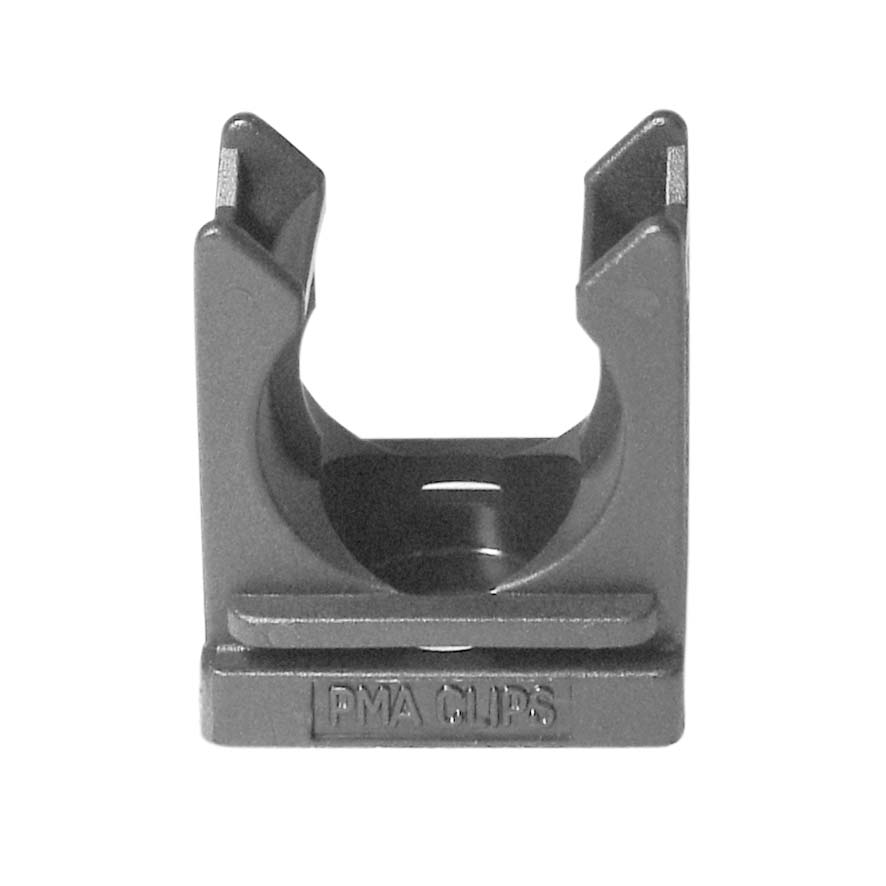

System support
- For machine building and installation applications.
- High-grade, specially formulated polyamide 6.
- Very high impact resistance.
- Quick mounting due to single hole fixing.
- Very good chemical properties.
- Free from halogens and cadmium.
- Fits both conduit profiles-fine (T) and coarse (G).
- NW 14 (1)
- NW 20 (1)
- NW 37 (1)

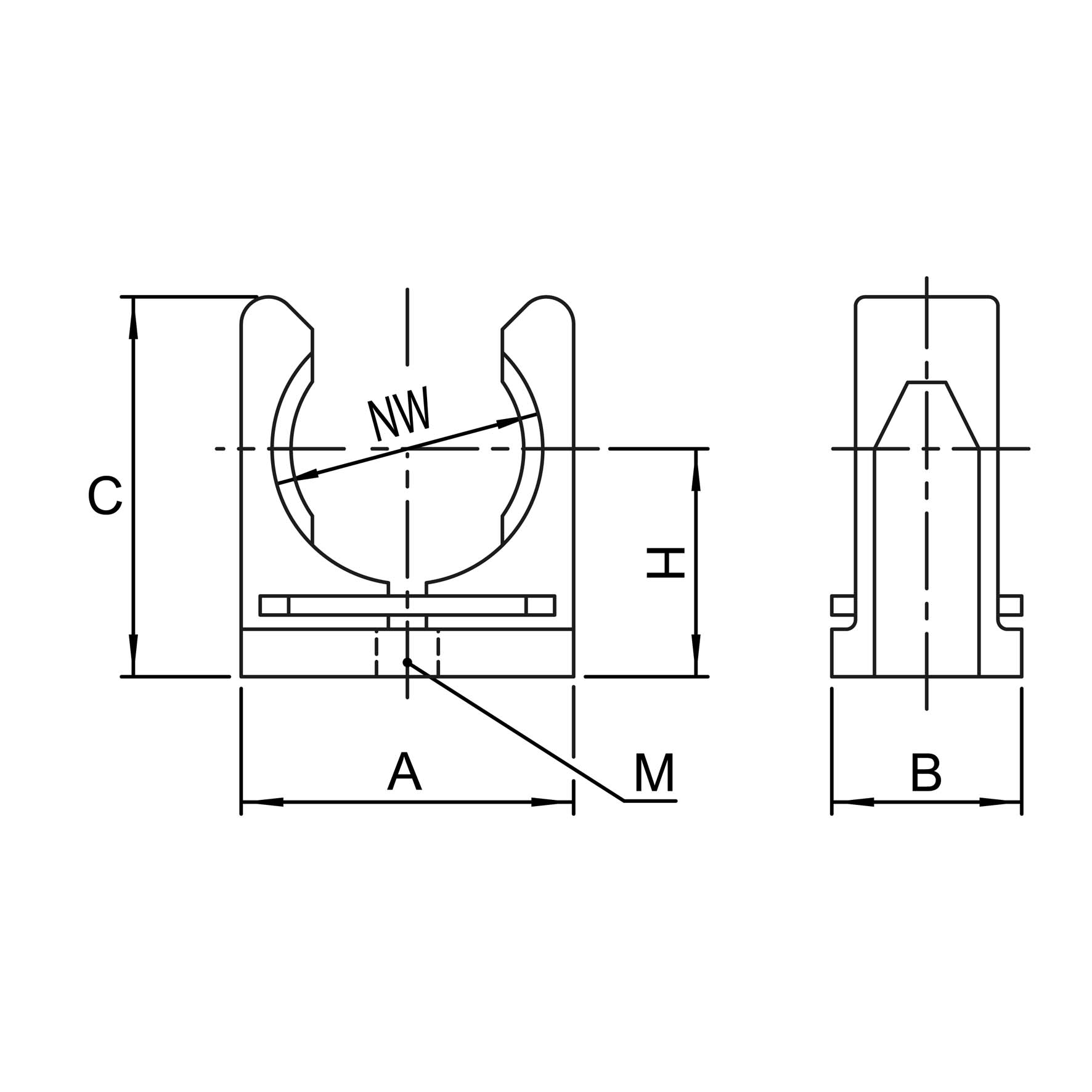

| E-number | Article no. | Conduit size | A mm | B mm | C mm | H mm | M | Pcs/pack |
| 1410213 | BFH-01 | NW 14 | 24,0 | 20,0 | 27,0 | 15,0 | M5 | 100 |
| 1410215 | BFH-20 | NW 20 | 35,0 | 20,0 | 40,0 | 24,0 | M6 | 100 |
| 1410221 | BFH-37 | NW 37 | 52,0 | 20,0 | 52,0 | 30,0 | M6 | 100 |
Material:
Polyamide PA6
Temperature range:
-40°C....+105°C
Colour:
Black RAL 9005
Flame class:
UL94 V0 (V2)
Glow wire test:
960°C acc. to EN 60695-2-10
Halogen-Free:
Yes
